MacDon M1240 - Retracting Wheels - Narrow Transport

215916 144 Revision A
1015593
A
B
C
D

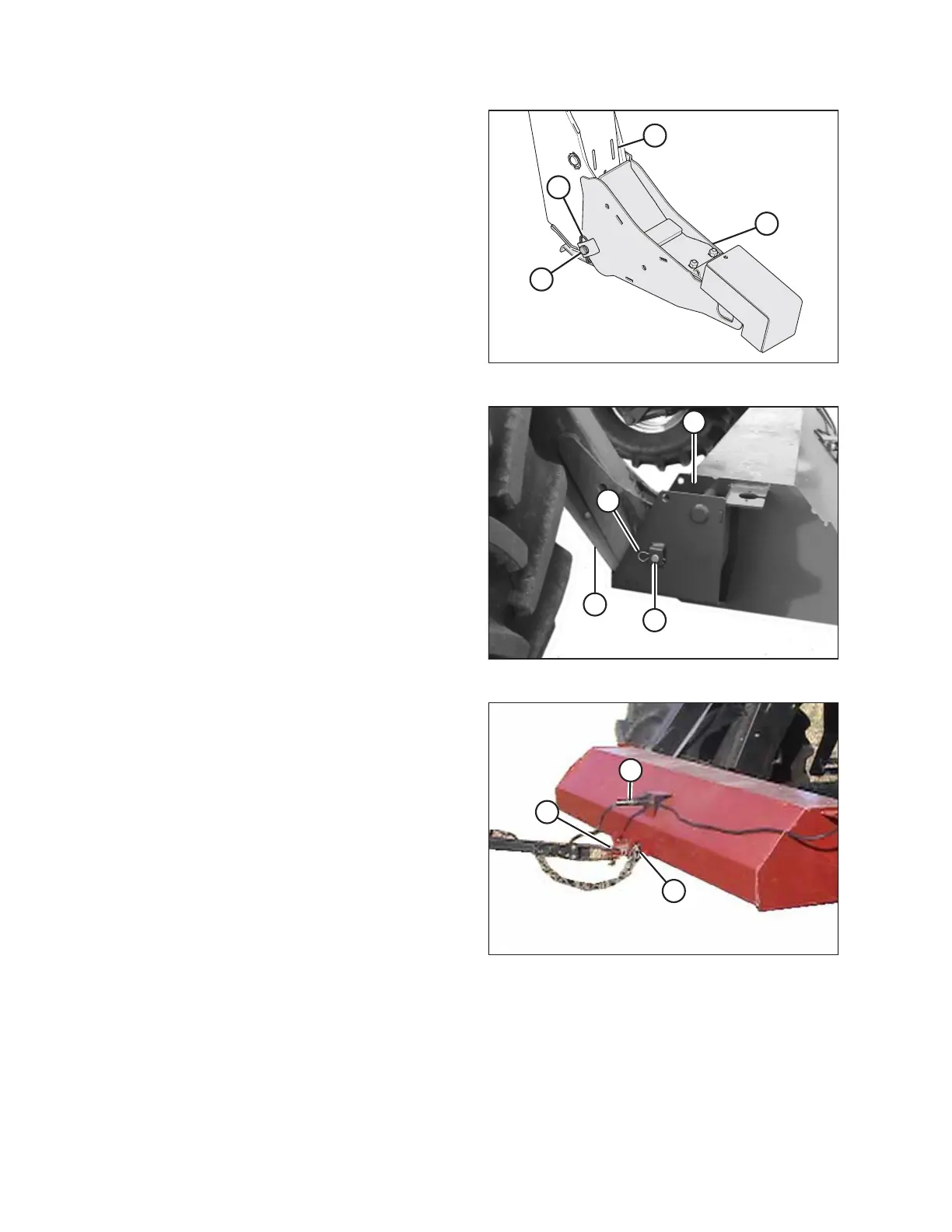

Figure 4.57: Draper Header Support
2. Convert the header to transport mode. For instructions,
refer to header operator’s manual.
3. Detach the header from the windrower. For instructions,
refer to Detaching D1X or D1XL Series Draper Header, page
171.
4. Remove hairpin (D) and clevis pin (C) securing header
support (B) to leg (A). Retain the pins for attaching the
weight box.
5. Remove header support (B) from windrower lift leg (A).
6. Repeat previous step for the opposite support.
1019405
A
B
C
D
Figure 4.58: Windrower Lift Linkage
7. Drive the windrower so that lift legs (A) are positioned in
weight box pockets (B). Raise the lift legs slightly.
8. Shut down the engine, and remove the key from
the ignition.
9. Install locking pin (C) into the pocket and secure it with
hairpin (D). Repeat for the opposite leg.
NOTE:
The pins were previously removed from the header
supports.
1000722
A
B
C
Figure 4.59: Weight Box
10. Attach slow speed transport hitch (A) to the weight box
tongue with the drawbar pin. Secure the drawbar pin with
the lynch pin. Attach safety chain (B).
11. Connect the hitch harness (C) to the electrical socket at the
front of the weight box.
OPERATION
