215916 143 Revision A
1020166

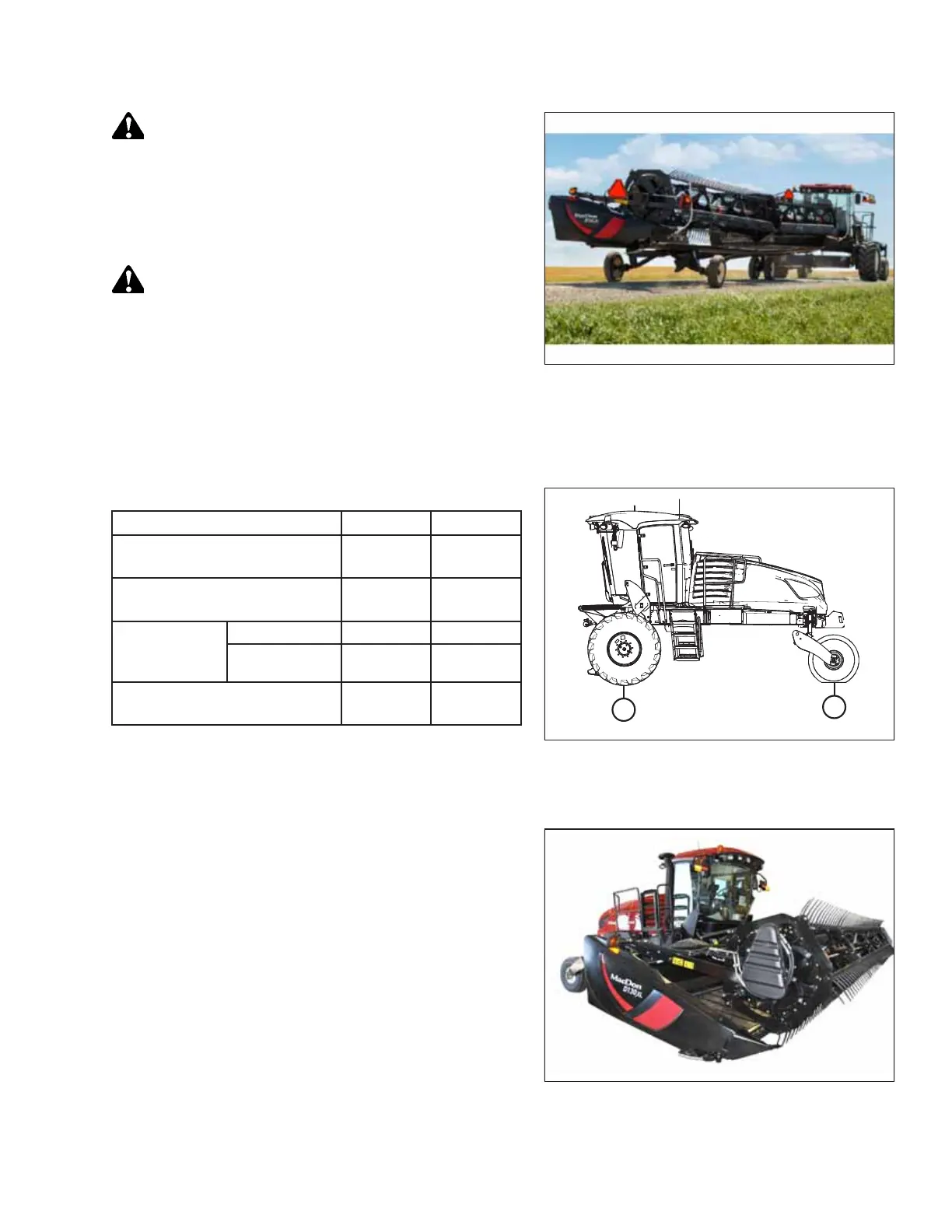

Figure 4.54: Towing a Header
WARNING
• A windrower without a header or weight box must NOT be
used to tow headers due to reduced traction and possible
loss of control.
• For towed equipment without brakes, do NOT exceed
32 km/h (20 mph).
CAUTION
• To tow a header with an M1240 Windrower, the header
must be equipped with the appropriate equipment to
comply with local regulations.
• Before towing, verify that the signal lighting and safety
equipment is installed and functioning properly.
• Do NOT exceed the combined gross vehicle weight (CGVW) specified in Table 4.3, page 143.
• To prevent damage and/or loss of control, ensure the machine and attached equipment are within the following
weight limits:
1014974
A
B
Figure 4.55: Maximum Weight
Table 4.3 Maximum Weight
kg lb.
Maximum GVW (includes
mounted implements)
10,660 23,500
Maximum CGVW (includes
towed and mounted implements)
11,793 26,000
Weight on
both drive
wheels (A)
Maximum
8618
19,000
Minimum
4568
10,070
Maximum weight on both caster
tires (B)
2744
6050
Preparing Windrower to Tow a Header
1019410
Figure 4.56: Windrower with Header
1. Attach the header to the windrower. For instructions, refer
to Attaching D1X or D1XL Series Draper Header, page 162.
OPERATION
