Figure 4.469: Header Engage Switch
4. Disengage the header by pushing down on HEADER
ENGAGE switch (A).
5. Adjust the float setting for the selected deck position. For
instructions, refer to Setting Float, page 253.
6. Repeat steps for the other deck positions.
4.9.3 Disc Header Run Screens
Two disc header specific run screens are viewable when operating windrower with an auger header attached. The screens
are accessed by pressing the applicable soft keys on the Harvest Performance Tracker (HPT).
Run Screen 1
This is what Run Screen 1 looks like when operating a rotary disc header.

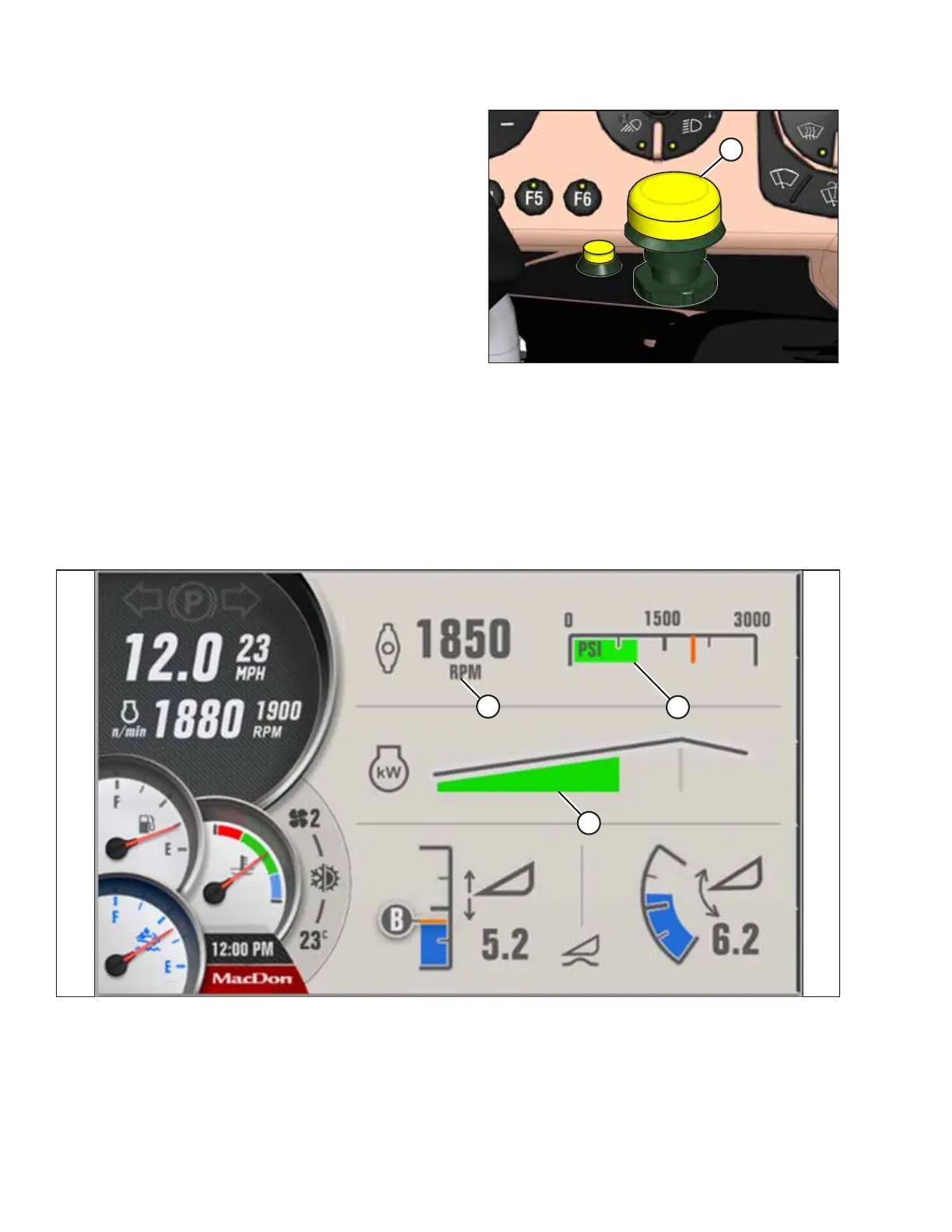

Figure 4.470: Run Screen 1 – Rotary Disc Header Display
A - Disc Speed B - Disc Pressure C - Engine Load Bar
