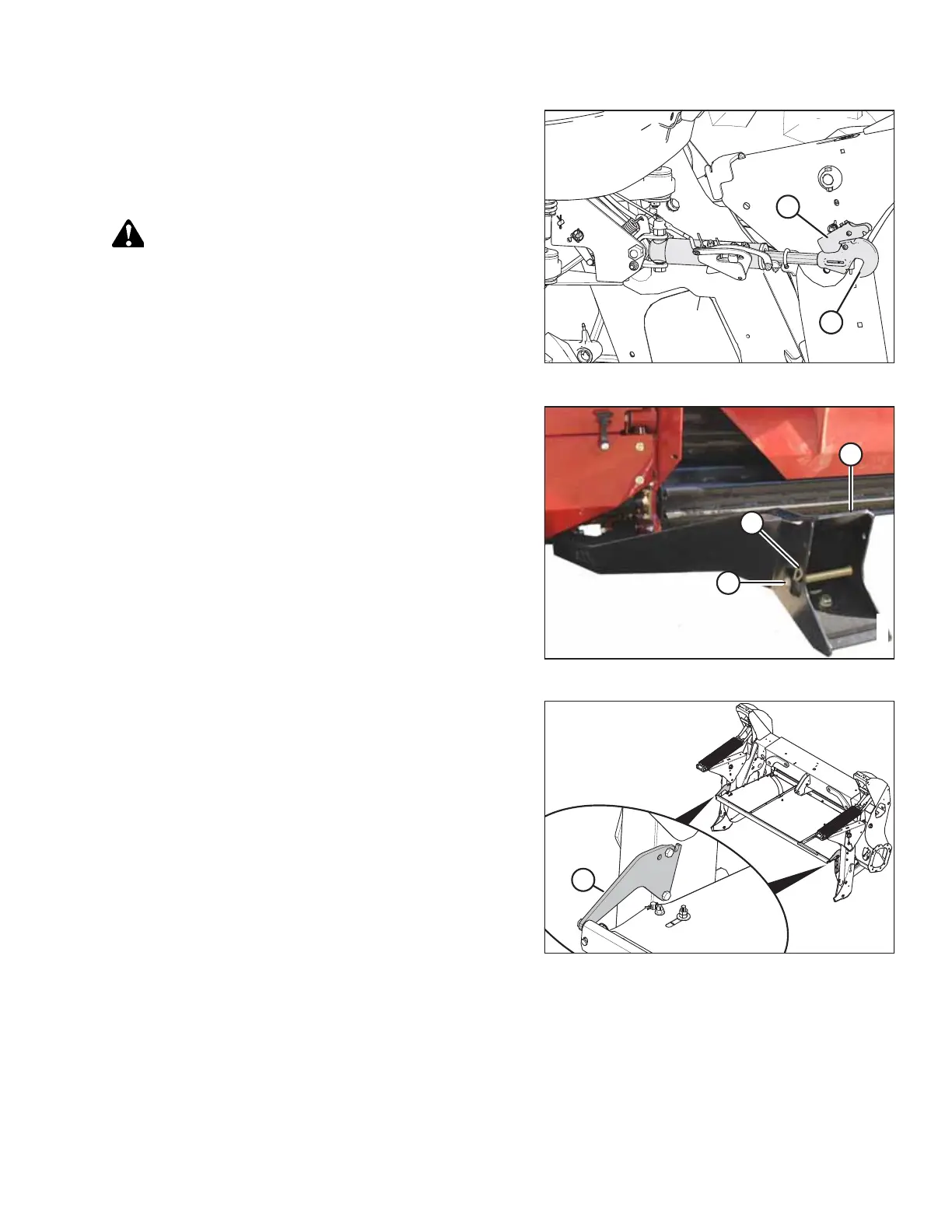

Figure 4.270: Hydraulic Center-Link
21. Windrowers WITHOUT center-link self-alignment kit: Shut
down the engine, and remove the key from the ignition.
22. Windrowers WITHOUT center-link self-alignment kit: Lift
hook release (A) and lift hook (B) off the header pin.
DANGER
Ensure that all bystanders have cleared the area.
23. Windrowers WITHOUT center-link self-alignment kit: Start
the engine.
1000812
A
B
C
Figure 4.271: Header Support
24. Back the windrower slowly away from the header.
25. Shut down the engine, and remove the key from
the ignition.
26. Reinstall clevis pin (A) through support (C) and secure it
with hairpin (B). Repeat for the opposite side of the header.
1036958
A
Figure 4.272: Shield Mount Plates on Forming Shield
IMPORTANT:
When detaching an R216 SP Rotary Disc Header from an M1
Series Windrower that will be configured for a D1X Series Draper
Header, ensure two shield mount plates (A) (MD #307045) are
removed from the windrower and forming shield.
OPERATION
