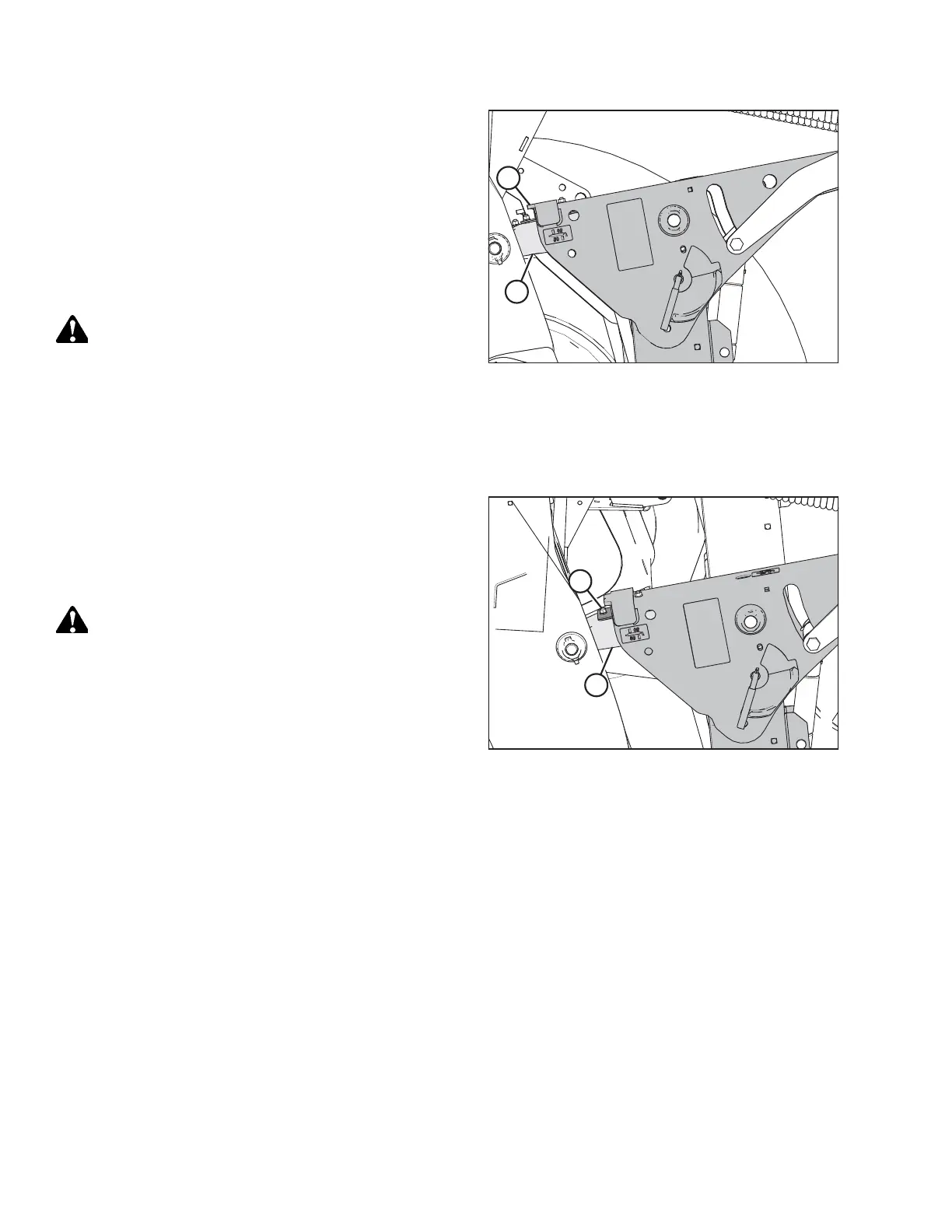

Figure 4.358: Lift Linkage
6. Lower the header to approximately 150 mm (6 in.) off the
ground.
7. Ensure that channel (A) is against link (B).
8. Shut down the engine, and remove the key from
the ignition.
9. Measure the distance to the ground at both ends of the
header to determine if the header is level.
DANGER
Ensure that all bystanders have cleared the area.
10. If adjustment is necessary, start engine and resume float.
Lower the header onto the ground until channel (A) lifts
away from the link (B) on both sides.
11. Shut down the engine, and remove the key from
the ignition.
Figure 4.359: Lift Linkage Shims
12. On the side that is higher, remove nut, washer, and bolt (A)
that attaches shims (B) to the linkage.
13. Remove one or both of shims (B) and reinstall
hardware (A).
DANGER
Ensure that all bystanders have cleared the area.
14. Repeat Step 5, page 269 to Step 9, page 270 to rephase the
cylinders and check the header level.
15. If additional adjustment is required, repeat Step 10, page
270 to Step 13, page 270, and install one of the removed
shims on the opposite linkage.
16. Reset the header float. For instructions, refer to Setting Float, page 253.
NOTE:
Additional shims are available from your Dealer.
4.6.5 Adjusting Reel Speed
Reel speed is displayed in either rpm, mph, or km/h (depending on the global units selection). The default reel speed is
60 rpm and can be set to auto or manual mode.
• AUTO mode: Minimum reel speed and operating reel speed differential relative to ground speed are set, and reel speed
is maintained relative to ground speed. For instructions, refer to Setting Reel Speed in Auto Mode, page 271.
• MANUAL mode: Reel speed is set and is maintained regardless of ground speed. For instructions, refer to Setting Reel
Speed in Manual Mode, page 272.
NOTE:
Both speed modes work with the One-Touch-Return feature. For example, button A on the GSL can be set for MANUAL
mode and button B can be set for AUTO mode. For instructions, refer to One-Touch-Return Buttons (A, B, C), page 74.
