215916 389 Revision A
Cleaning Right Cooling Module
The coolers at the right cab-forward side of the windrower must be cleaned to ensure the best performance.

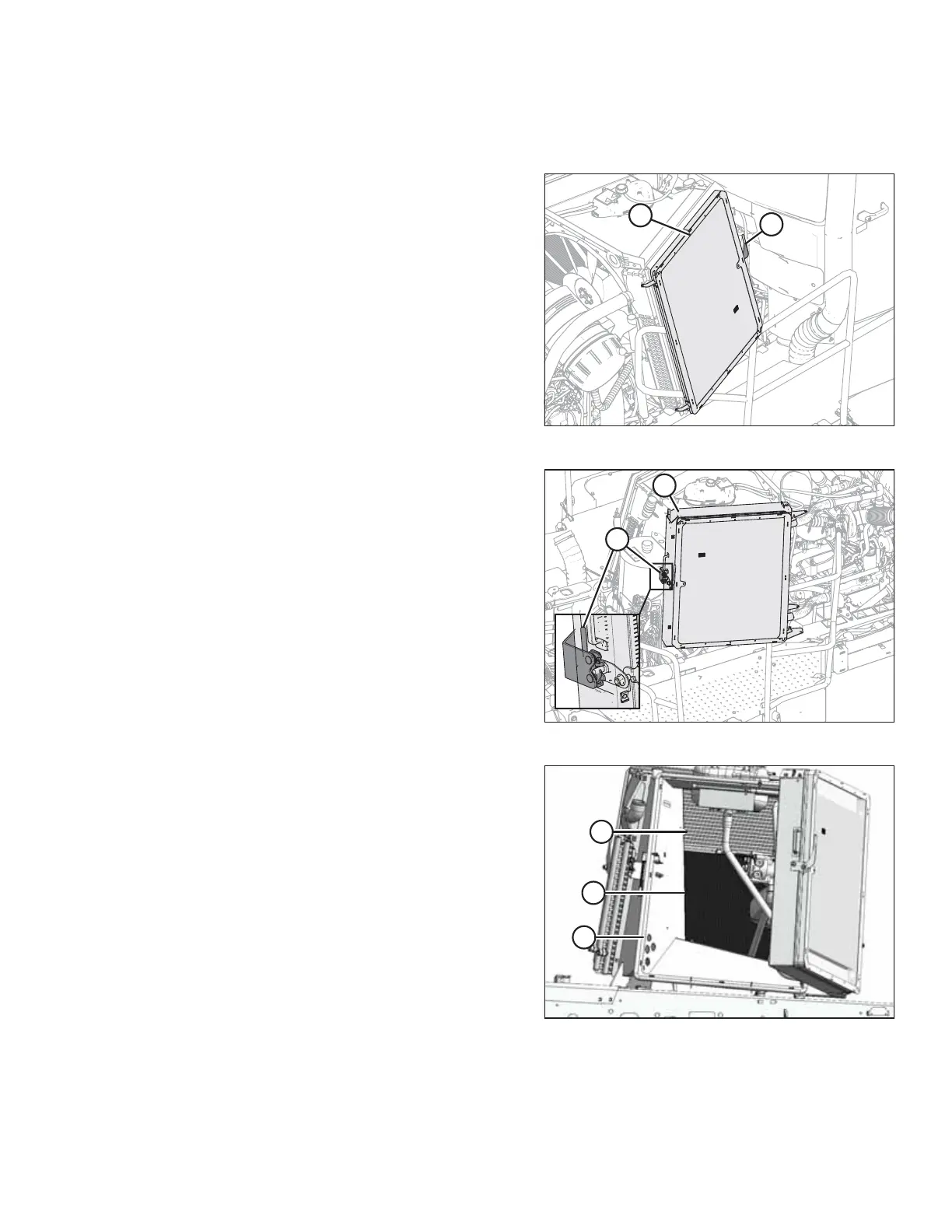

Figure 5.84: Right Cooler Module
1. At the right (cab-forward) cooler module, pull latch
handle (A) and open screen/case drain cooler door (B).
Figure 5.85: Engine Radiator Door
2. At the left (cab-forward) cooler module, push latch (A) and
open engine radiator door (B) to allow access inside the
cooler module.
Figure 5.86: View from Inside Module – Left Side
3. Use compressed air to clean debris from inside cooler
box (A), charge air cooler (B), and hydraulic oil cooler (C).
MAINTENANCE AND SERVICING
