Adjusting Knife Alarm Pressure – Auger Header
Adjusting the knife alarm allows the operator to set an alert to inform them that the knife is operating above the desired
pressure. A lower setting will cause the alarm to be set off more often; a higher setting will allow the alarm to be set off
less frequently. This adjustment requires the header to be in operation.
1019648
A

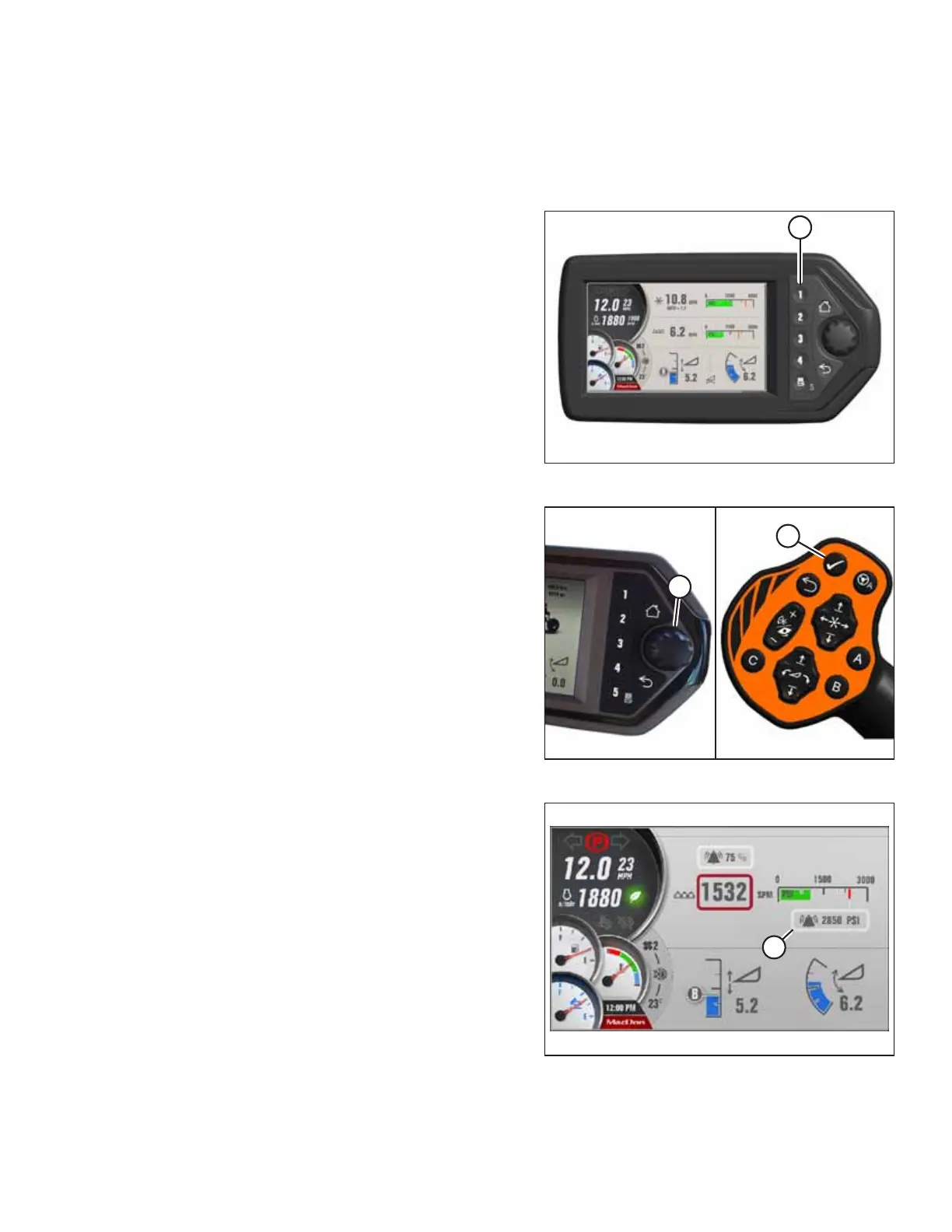

Figure 4.436: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft
key 1 (A) on the Harvest Performance Tracker (HPT) to
display auger RUN SCREEN 1.
1014578
A
B
Figure 4.437: HPT Scroll Knob and GSL Select Button
2. Press scroll knob (A) on the Harvest Performance Tracker
(HPT) or SELECT button (B) on the ground speed lever (GSL)
to display the QuickMenu system.
1015212
A
Figure 4.438: Knife Screen
3. Scroll to KNIFE ALARM PRESSURE setting (A), and use the
knob to select it.
4. Turn the knob to change ALARM set-point in window (A).
Scrolling past the highest setting turns the alarm off. When
the alarm point is off, the digital value is replaced with
three dashed lines.
5. Adjust the reel alarm pressure set-point to the
desired value, and press the knob to select it.
NOTE:
Factory setting is 24,821 kPa (3600 psi).
