5.10.2 Maintaining Engine Air Filters
Removing Engine Primary Air Filter
1. Stand on the right service platform.
2. Open the hood. For instructions, refer to 5.3.1 Opening Hood, page 335.

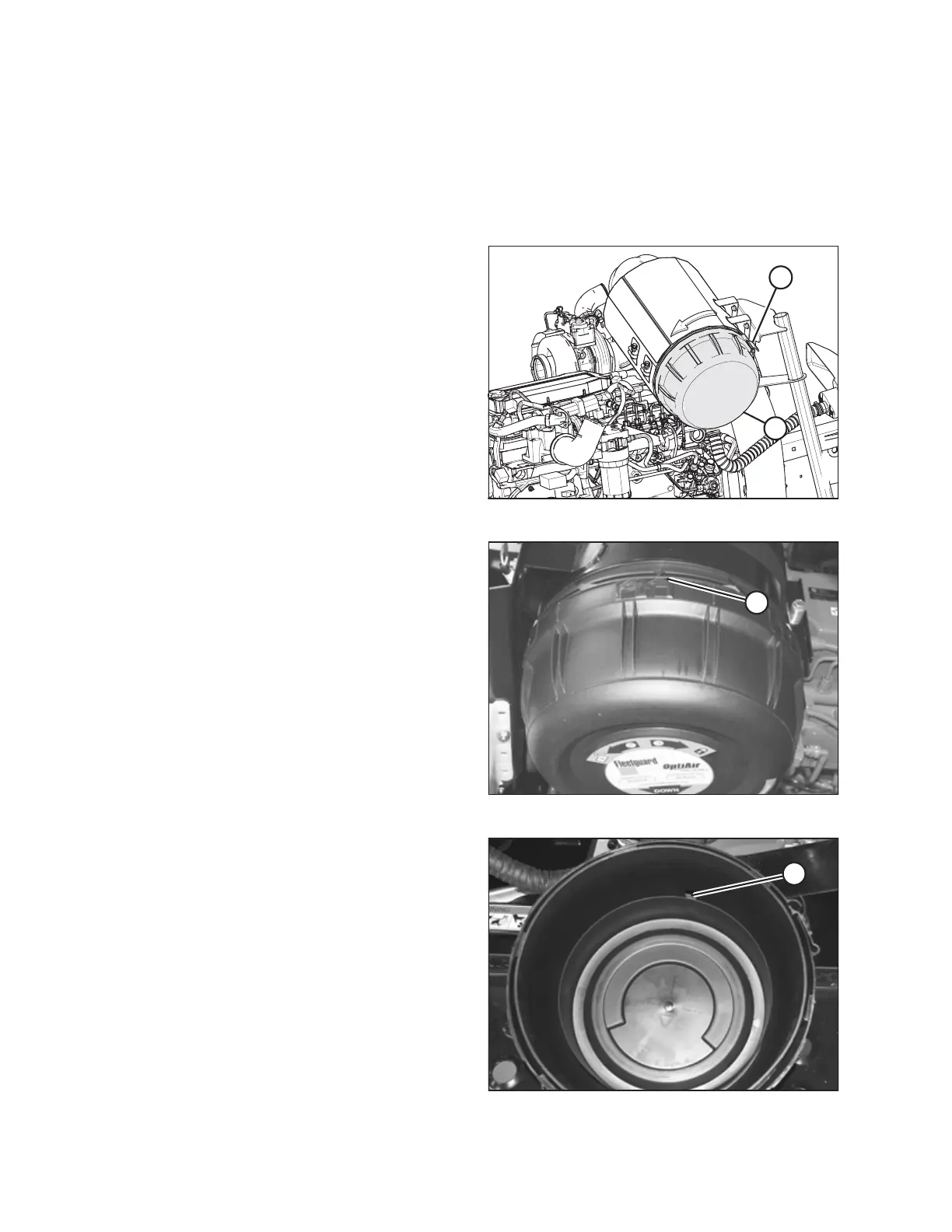

Figure 5.94: Air Filter Housing
3. Slightly lift catch (A) at side of end cap (B). Rotate the end
cap counterclockwise until it stops.
Figure 5.95: Air Filter
4. Make sure arrow (A) lines up with the UNLOCK symbol on
the end cap.
5. Pull off the end cap.
Figure 5.96: Air Filter
6. Check aspirator duct opening (A) for obstructions or
damage. Clean if necessary.
7. Place the cover on the platform.
NOTE:
Hoses can be left connected to the cover.
MAINTENANCE AND SERVICING
