215916 171 Revision A

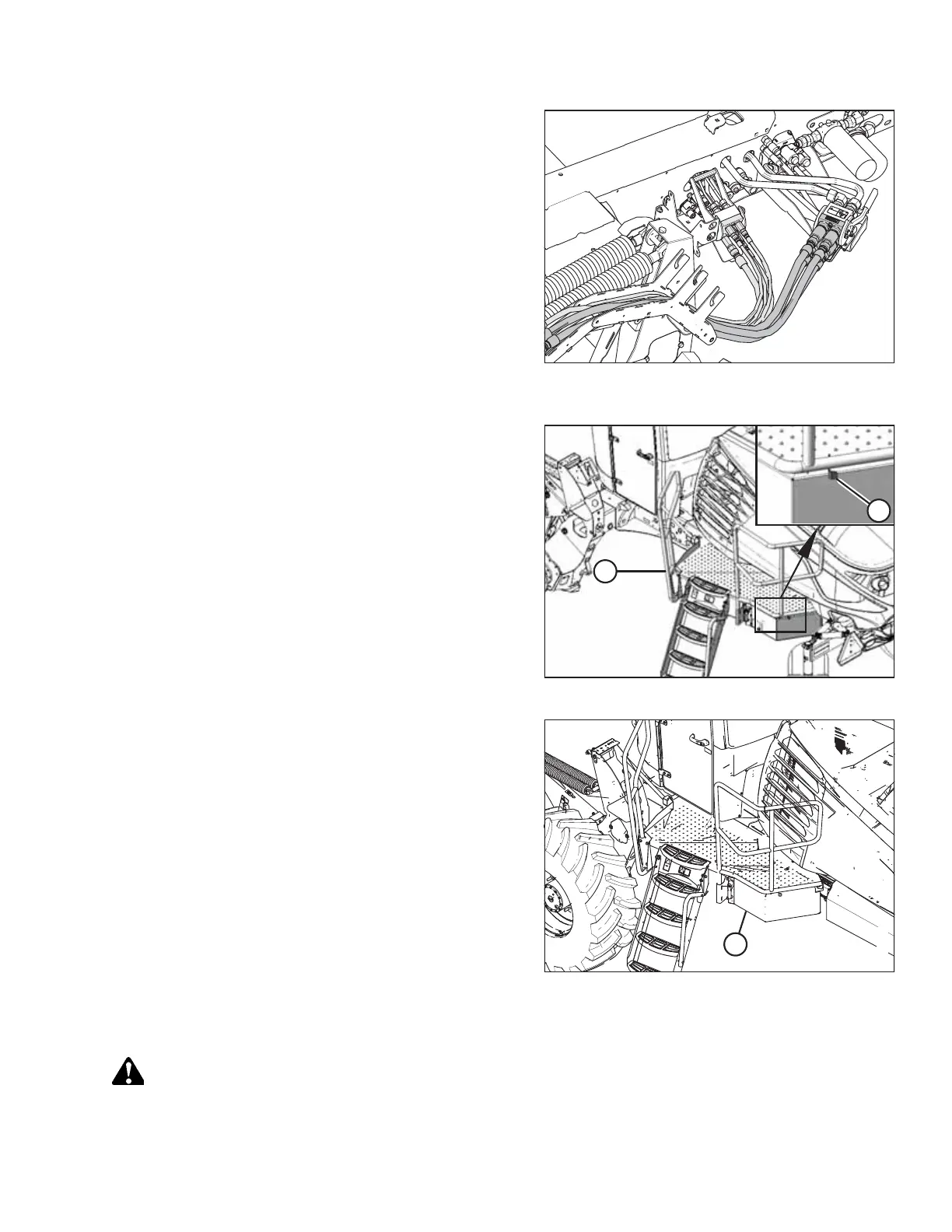

Figure 4.124: Hydraulic Multicouplers and Hose
Routing
14. Ensure that the hydraulic hose routing is as straight as
possible.
IMPORTANT:
Straight routing will prevent abrasion damage to the
hydraulic hoses.
Figure 4.125: Left Cab-Forward Platform
15. Push latch (A) to unlock platform (B).
Figure 4.126: Left Cab-Forward Platform
16. Pull platform (A) towards the cab until it stops and the latch
is engaged.
Detaching D1X or D1XL Series Draper Header
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
OPERATION
