215916 358 Revision A
Relay Modules
Relay modules contain electronic switches that are turned on/off by the master controller.

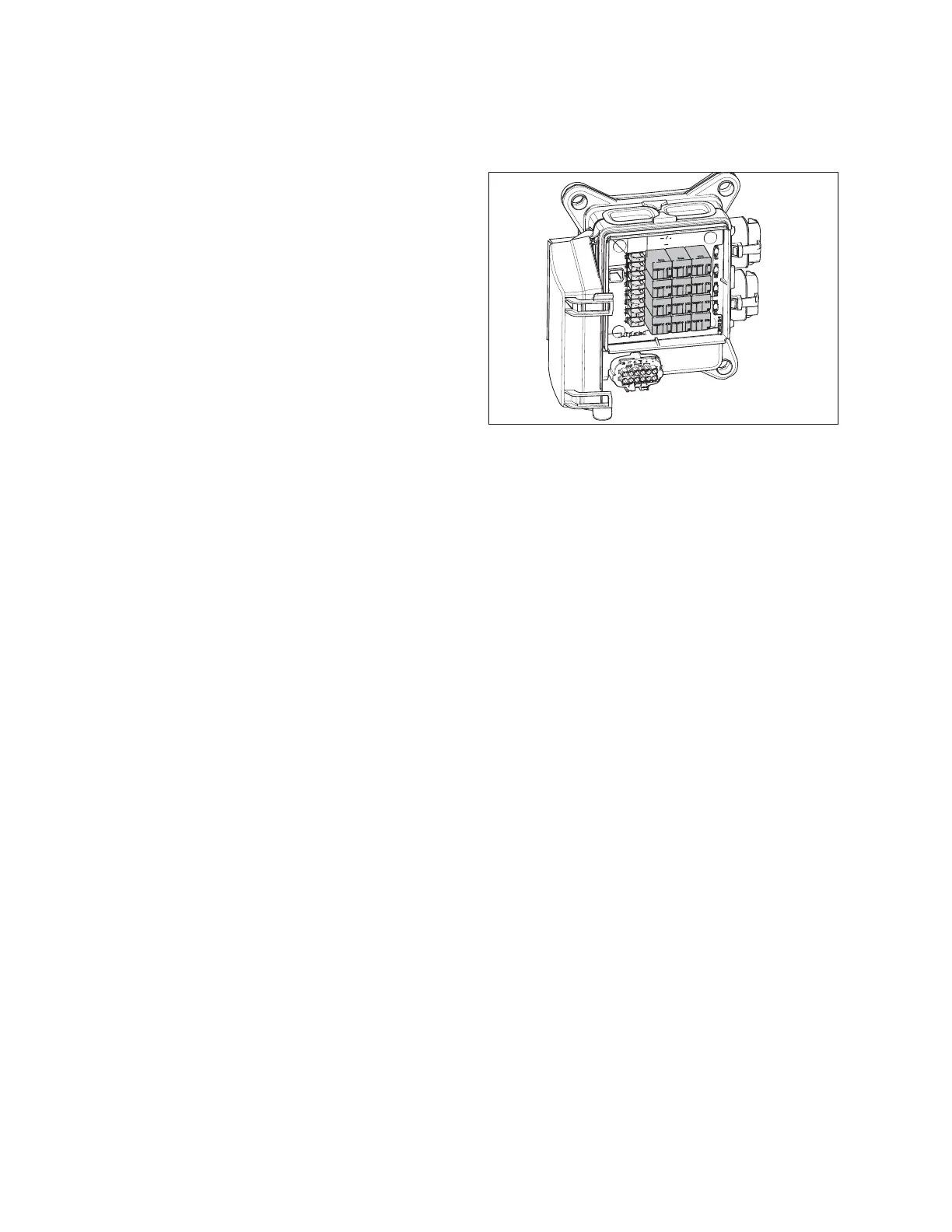

Figure 5.30: Chassis Relay Module
The M1240 Windrower has two relay modules. One is located
on the chassis and the other inside the cab headliner. There are
fuses and relays located in both relay modules.
The chassis relay module is located on the left (cab-forward)
frame rail.
MAINTENANCE AND SERVICING
