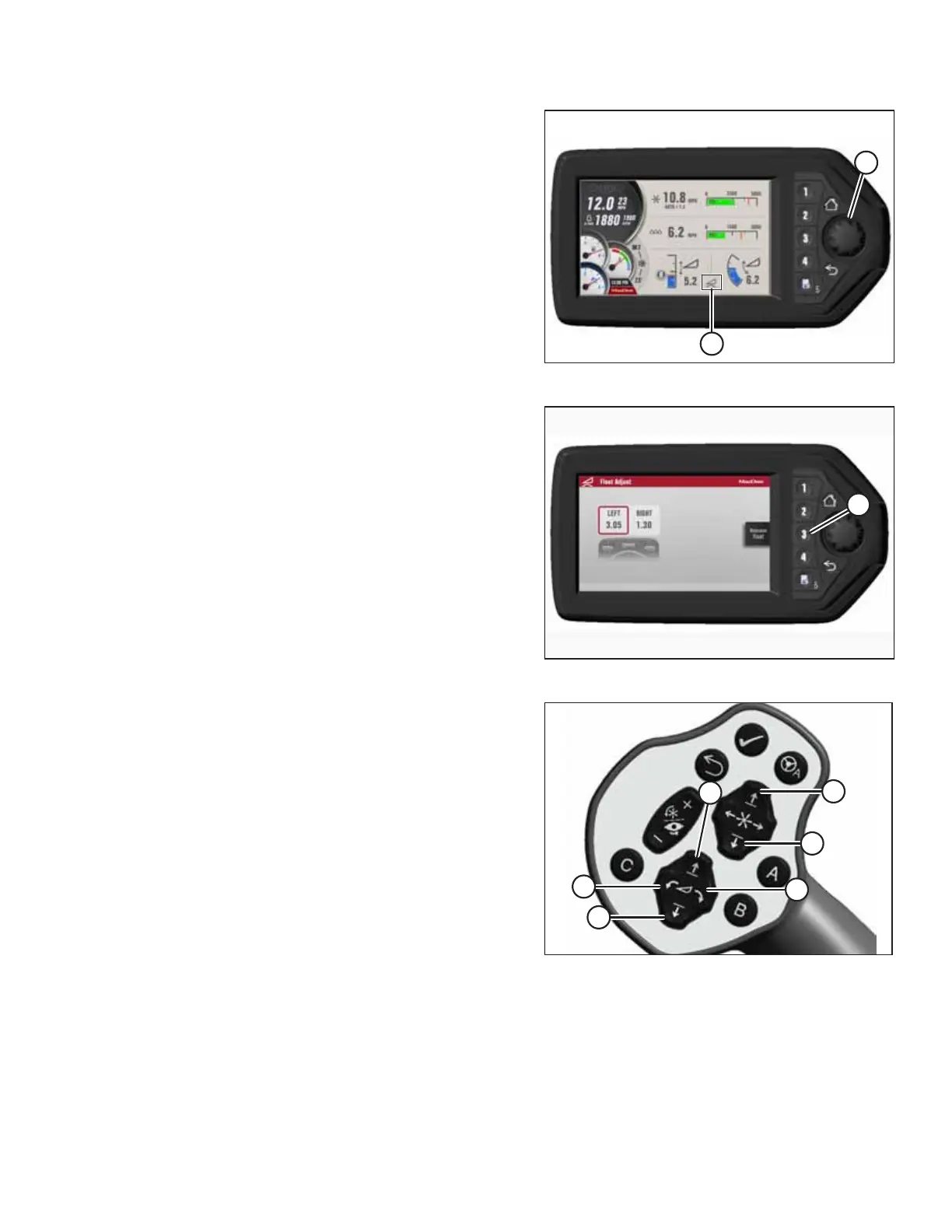

Figure 4.108: HPT Display
7. Press scroll knob (A) on the HPT to display the QuickMenu
system.
8. Rotate scroll knob (A) to highlight HEADER FLOAT
symbol (B), and press the scroll knob to select it.
Figure 4.109: HPT Display
9. On the FLOAT ADJUST page, press soft key 3 (A) to remove
the float.
Figure 4.110: GSL Switches
A - Reel Down B - Reel Up
C - Header Tilt Down D - Header Tilt Up
E - Header Down F - Header Up
10. Windrowers equipped with the self-aligning
center-link kit:
a. Press HEADER DOWN switch (E) on the ground speed
lever (GSL) to fully retract the header lift cylinders.
b. Press REEL UP switch (B) on the GSL to raise the center-
link until the hook is above the attachment pin on the
header.
IMPORTANT:
If the center-link is too low, it may contact the header as the
windrower approaches the header.
