6. If necessary, calibrate both the knife drive and header position sensors on the windrower. Calibrate both the knife
drive and header position sensors whenever you are:
• Attaching the header to the windrower for the first time
• Changing the speed sensor or hydraulic drive motor on the header
• Changing the header drive pump associated with the knife drive, Harvest Performance Tracker (HPT), or the master
controller on the windrower
For instructions, refer to .
Rotary Disc Only Configuration – Hard-Plumbed Fittings
The rotary disc configuration allows the windrower to operate with compatible rotary disc headers. The hydraulic
connections must be torqued correctly when using hard-plumbed fittings.

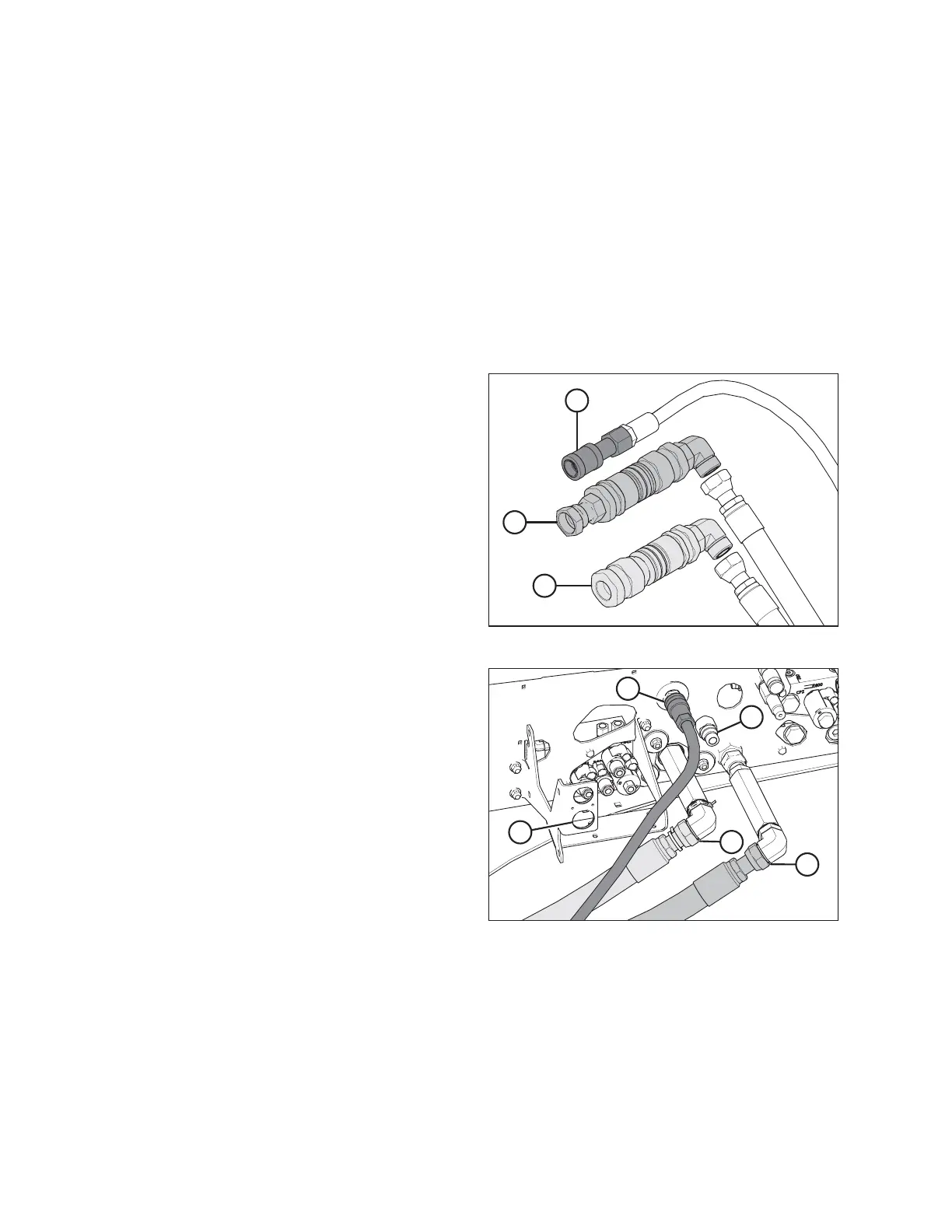

Figure 4.176: Rotary Disc Header Hose Bundle
1. Remove the existing quick couplers and elbow fittings (if
they are installed) from header hydraulic pressure hose (A)
and return hose (B). Do NOT remove the fittings from case
drain hose (C).
Figure 4.177: Hard Plumbed Connections on Disc
Header Ready Windrower with Case Drain Kit
2. Connect the hydraulic hoses to the windrower as follows:
a. Connect rotary disc pressure hose (A) as shown and
torque it to 215 Nm (159 lbf·ft).
b. Connect rotary disc return hose (B) as shown and
torque it to 215 Nm (159 lbf·ft).
c. Connect case drain hose (C) to the mating 1/2 in.
coupler as shown.
NOTE:
The case drain hose coupler will be present only if the
M1240 Low Pressure Case Drain kit (MD #B6698) has
been installed.
IMPORTANT:
Ensure that the case drain hose is connected to
port (C), NOT port (E).
d. Connect the electrical harness to receptacle (D).
