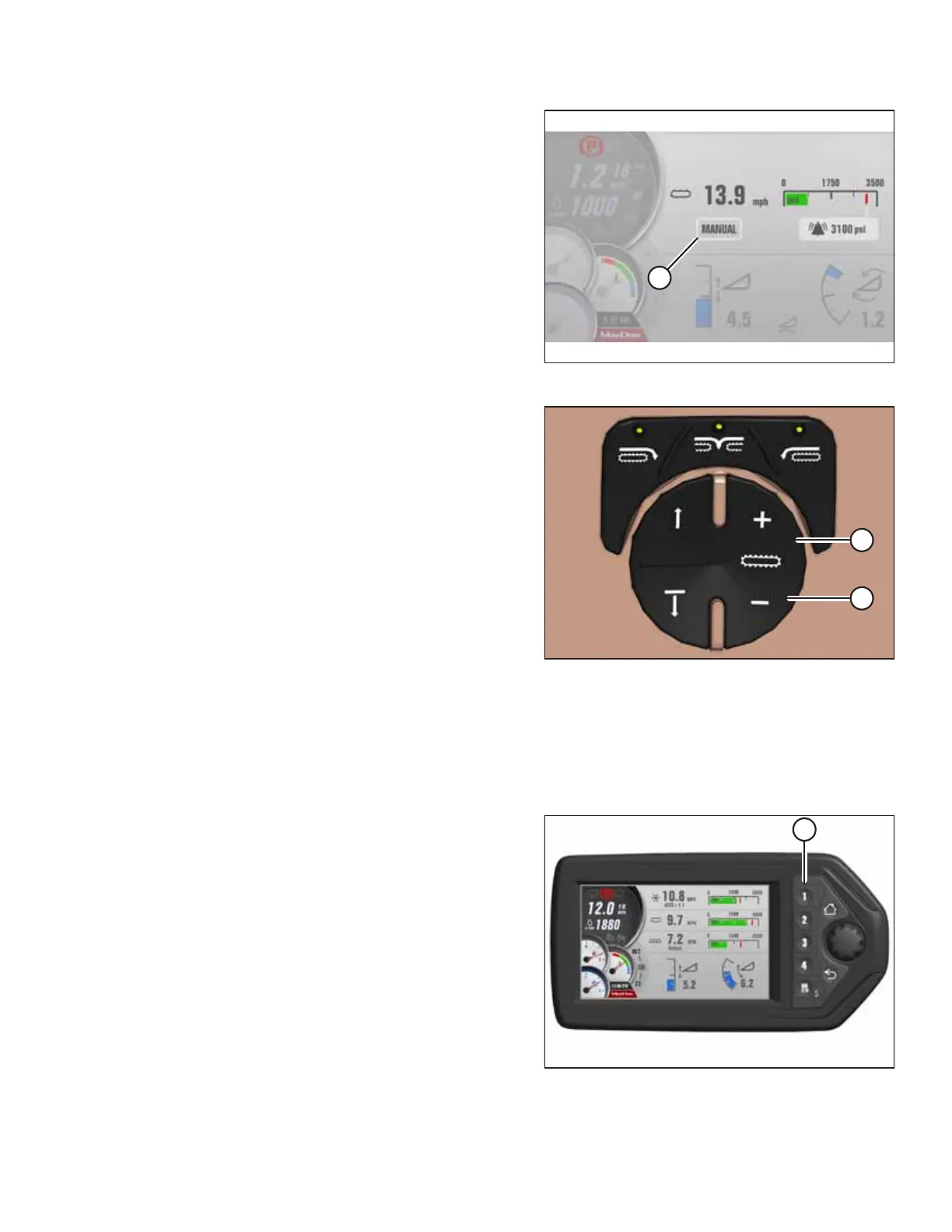

Figure 4.382: Draper Header Draper Page
4. Turn the scroll knob to the mode window and press the
scroll knob to select it.
5. Scroll in the pop-up window to MANUAL (A) and press the
scroll knob to select it.
1014968
A
B
Figure 4.383: Operator’s Console Draper Controls
6. Set the draper speed with the console controls as follows:
a. Press and quickly release DRAPER SPEED switch (A) to
increase the draper speed in 0.2 km/h (0.1 mph)
increments.
b. Press and hold DRAPER SPEED switch (A) to increase
the draper speed in 2 km/h (1 mph) increments.
c. Similarly decrease draper speed with switch (B).
Adjusting Draper Alarm Pressure
Adjusting the draper alarm allows the Operator to set an alert to inform them that the draper is operating above the
desired pressure. A lower setting will cause the alarm to be set off more often; a higher setting will allow the alarm to be
set off less frequently. This adjustment requires the header to be in operation.
1019554
A
Figure 4.384: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft
key 1 (A) on the Harvest Performance Tracker (HPT) to
display draper RUN SCREEN 1.
