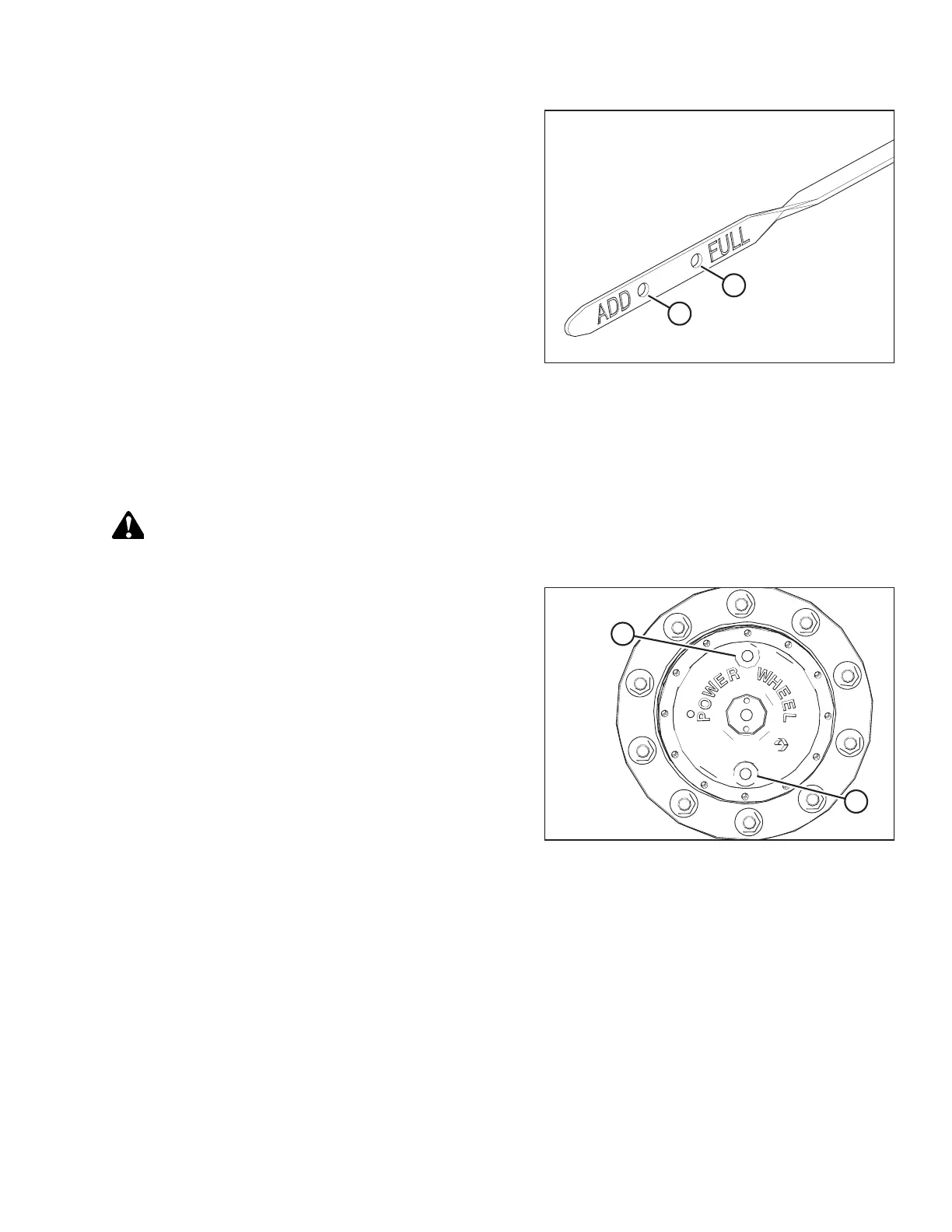

Figure 5.44: Bottom End of Dipstick
8. Add lubricant until the oil level is between the ADD (A) and
FULL (B) marks on the dipstick. For lubricant specifications,
refer to 5.1.4 Lubricants, Fluids, and System Capacities,
page 328.
9. Reinstall dipstick and breather.
10. Operate the engine at low idle and check for leaks at the
check plug and drain plug.
5.6.7 Changing Wheel Drive Lubricant – 10 Bolt
The wheel drive lubricant should be changed after the first 50 hours and every 1000 hours or annually, whichever occurs
first. Change the lubricant when it is warm.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1007553
A
B
Figure 5.45: Drive Wheel
1. Park the windrower on level ground and position the
windrower so drain plug (B) is at the lowest point.
2. Shut down the engine, and remove the key from
the ignition.
3. Place a container (about 2 liters [2 quarts]) under lower
drain plug (B).
4. Remove plugs (A) and (B), and drain the lubricant into
the container.
5. Dispose of the oil in a manner that complies with local rules
and regulations.
