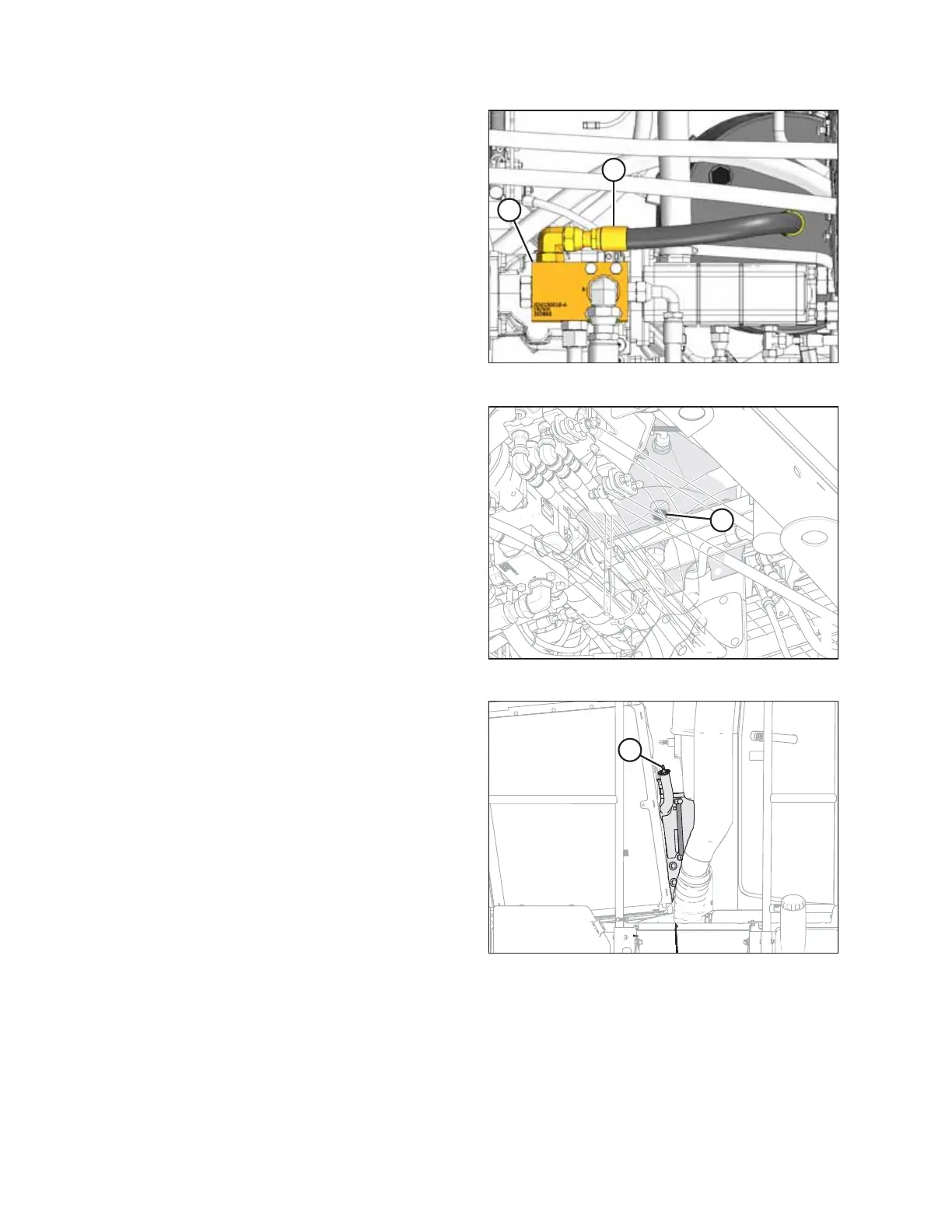

Figure 5.144: Inlet Manifold
6. From beneath the windrower, locate hose (A) that connects
to inlet manifold (B).
7. Remove hose (A) from the elbow fitting and allow the hose
to drain into a clean container.
8. Once the tank is empty, reattach the hose to the elbow.
1016216
A
Figure 5.145: Hydraulic Oil Drain
9. Locate and remove magnetic drain plug (A) that is
underneath the hydraulic oil tank.
NOTE:
Pull the traction drive hoses out of the way to allow oil to
drop straight down into catch pan.
10. Inspect and clean the magnetic drain plug for any debris.
11. Reinstall the drain plug. Torque plug to 75–82 Nm
(55–60 lbf·ft).
1012669
A
Figure 5.146: Reservoir Plug
12. Reinstall plug (A) on the hydraulic oil tank.
13. Close the hood. For instructions, refer to 5.3.2 Closing
Hood, page 336 .
14. Dispose of used oil in a manner that complies with local
rules and regulations.
