215916 470 Revision A
Inspecting and Replacing 125A Main Fuses
The 125A main fuse holders are located on the frame on the left cab-forward side platform beside the battery.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
Access the 125A main fuses as follows:
1. Shut down the engine, and remove the key from the ignition.
2. Open the platform. For instructions, refer to 5.4.1 Opening Platform, page 337.
3. Remove the negative battery terminal.

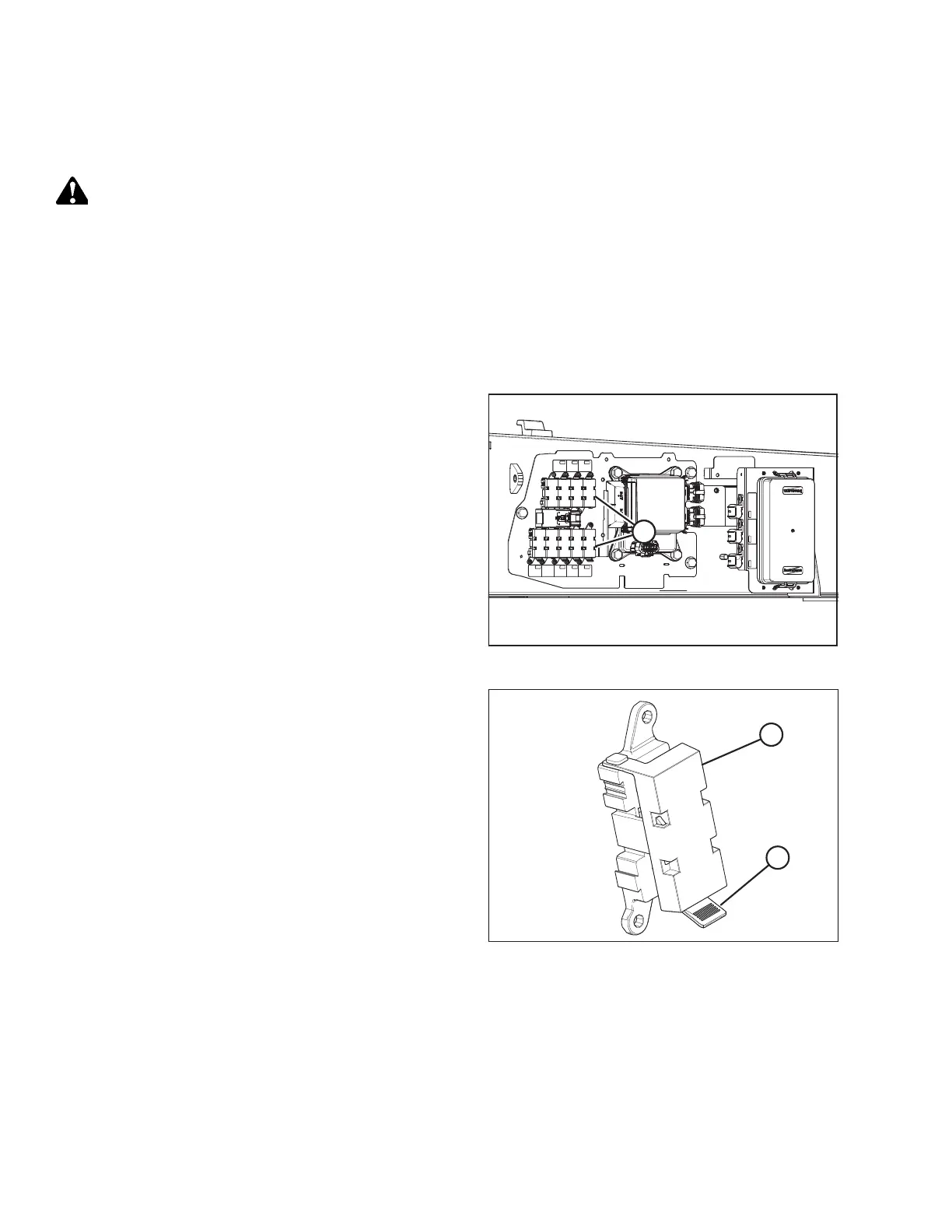

Figure 5.225: Main Fuses
4. Locate the five main fuses (A) secured to the left
cab-forward front frame.
Figure 5.226: 125A Main Fuse
5. To check the condition of the fuse, pull tab (A) and open
cover (B).
MAINTENANCE AND SERVICING
