Raising Caster Wheel
This procedure is for raising the caster wheel. This procedure applies to both caster wheels.
1. Park the windrower on a level surface.
2. Block the wheels.

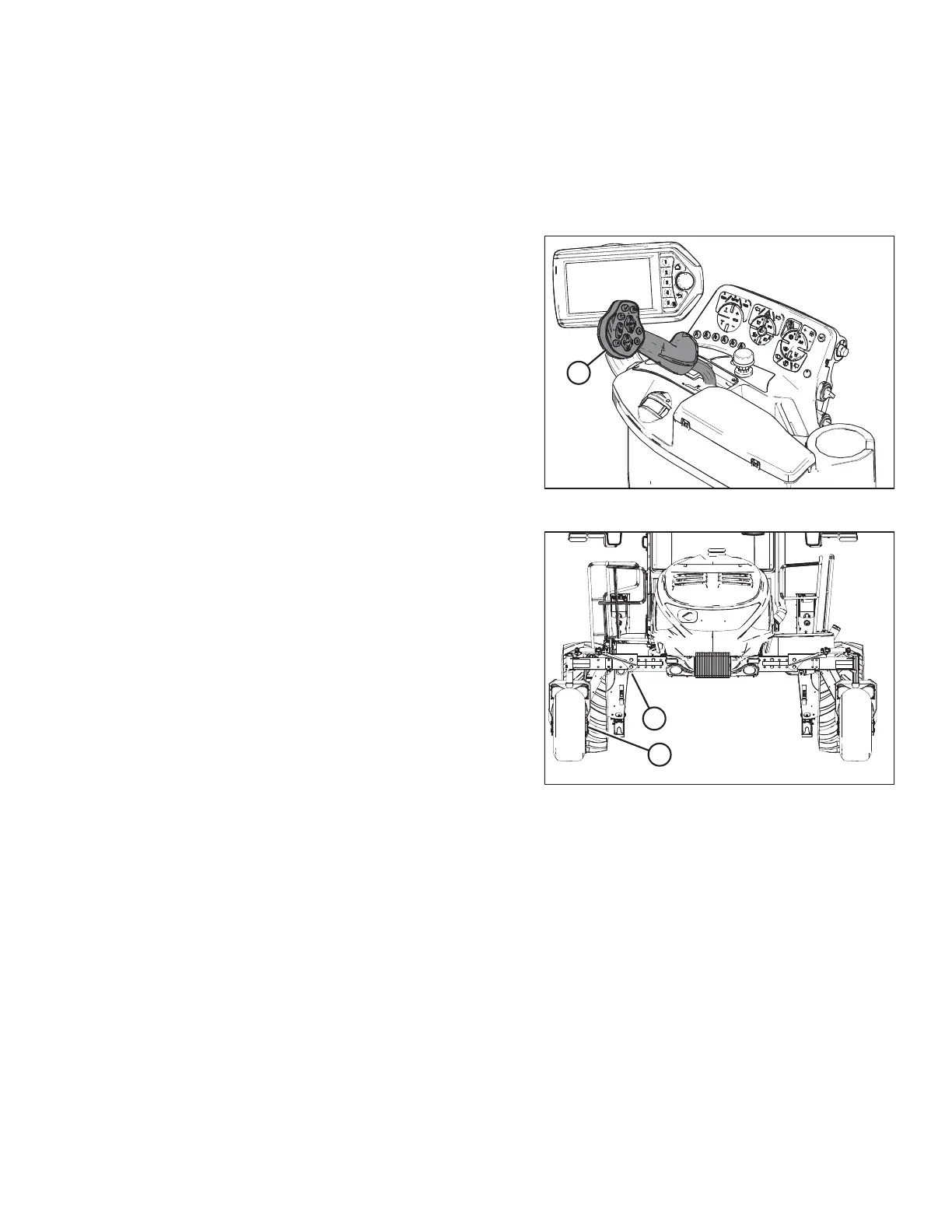

Figure 5.247: GSL Position
3. Place ground speed lever (GSL) (A) in PARK.
4. Shut down the engine, and remove the key from
the ignition.
Figure 5.248: Caster Wheel Assembly
5. Raise the end of walking beam (A) until caster wheel
assembly (B) is slightly off the ground. Use a suitable lifting
device, capable of lifting 2268 kg (5000 lb.) minimum.
6. Place a jack stand beneath the walking beam and lower the
beam until resting on the stand.
