ND-70348 (E) CHAPTER 4
Page 450
Revision 3.0
ATRK

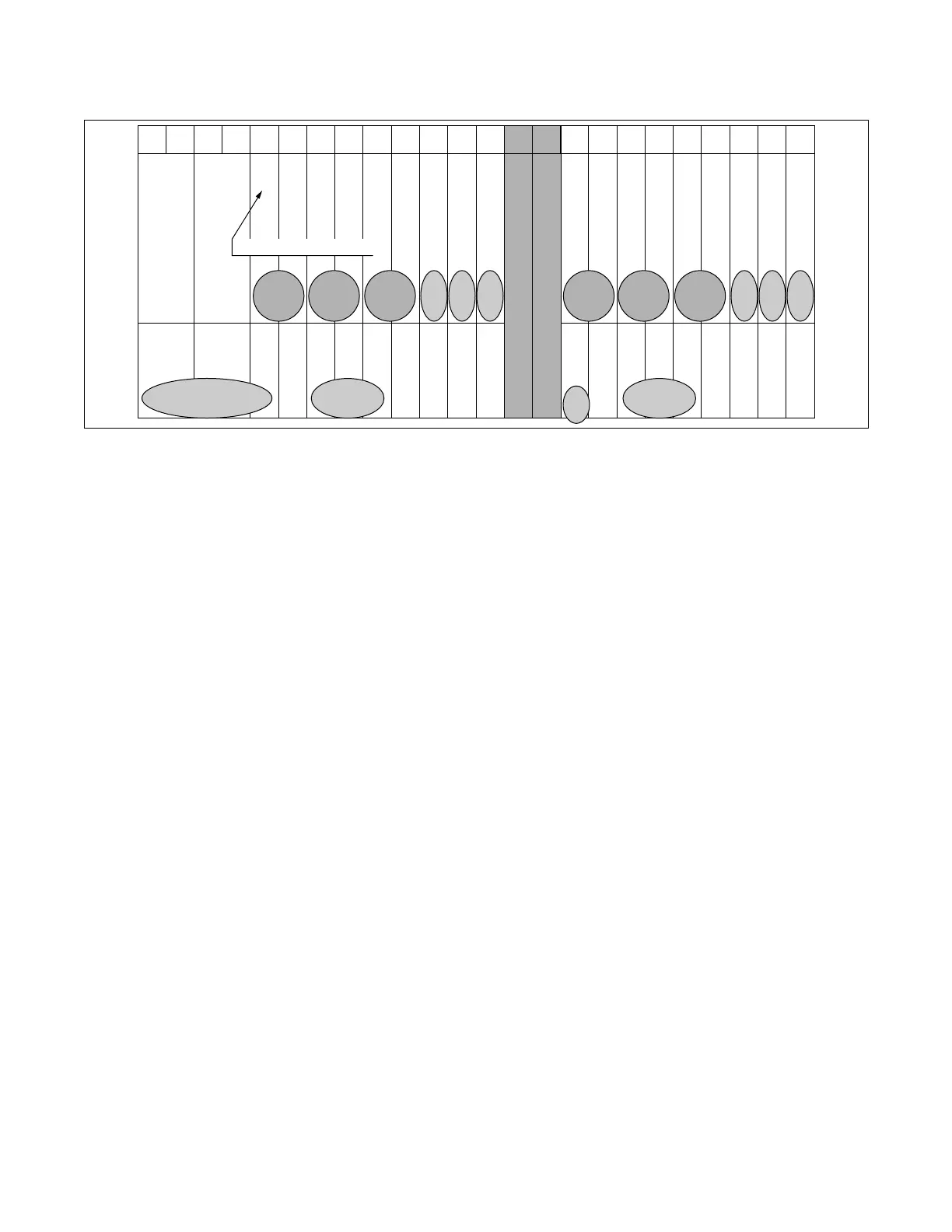

Figure 4-18 Group Number of LENS
8. The applicable tenant number (TN) range is designated by the ASYD command, SYS 1, INDEX 8.
9. When deleting an Attendant Console data, flip the “SW00” of the ATI card into the Make Busy state before
executing this command
10. When deleting the CIC trunk of CCIS, a warning message may be displayed. This message means that the
CIC trunk is busy or the line concerned is not connected. Therefore, before deleting the CIC trunk, confirm
the line status by means of the DCON command.
11. When the trunk data assigned by this command has been deleted, the data assigned by the ACSI/AMAT
command is also cleared.
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23
HW
4
HW
14
PWR
PWR
31 / 30
29 / 28
27 / 26
31 / 30
29 / 28
27 / 26
(25)
(24)
MUX / TSW#1
MUX / TSW#0
HW0
23 / 22 / 21 / 20
11 / 10
15 / 14 / 13 / 12
19 / 18 / 17 / 16
9 / 8
7 / 6
5 / 4
3 / 2
1 / 0
23 / 22 / 21 / 20
11 / 10
15 / 14 / 13 / 12
19 / 18 / 17 / 16
9 / 8
7 / 6
5 / 4
3 / 2
1 / 0
HW15HW7HW6
HW1 HW2
HW
3
HW
5
HW8 HW9 HW
10
HW
11
HW
12
HW
13
LENS Group number
To Next Page
