AHSU

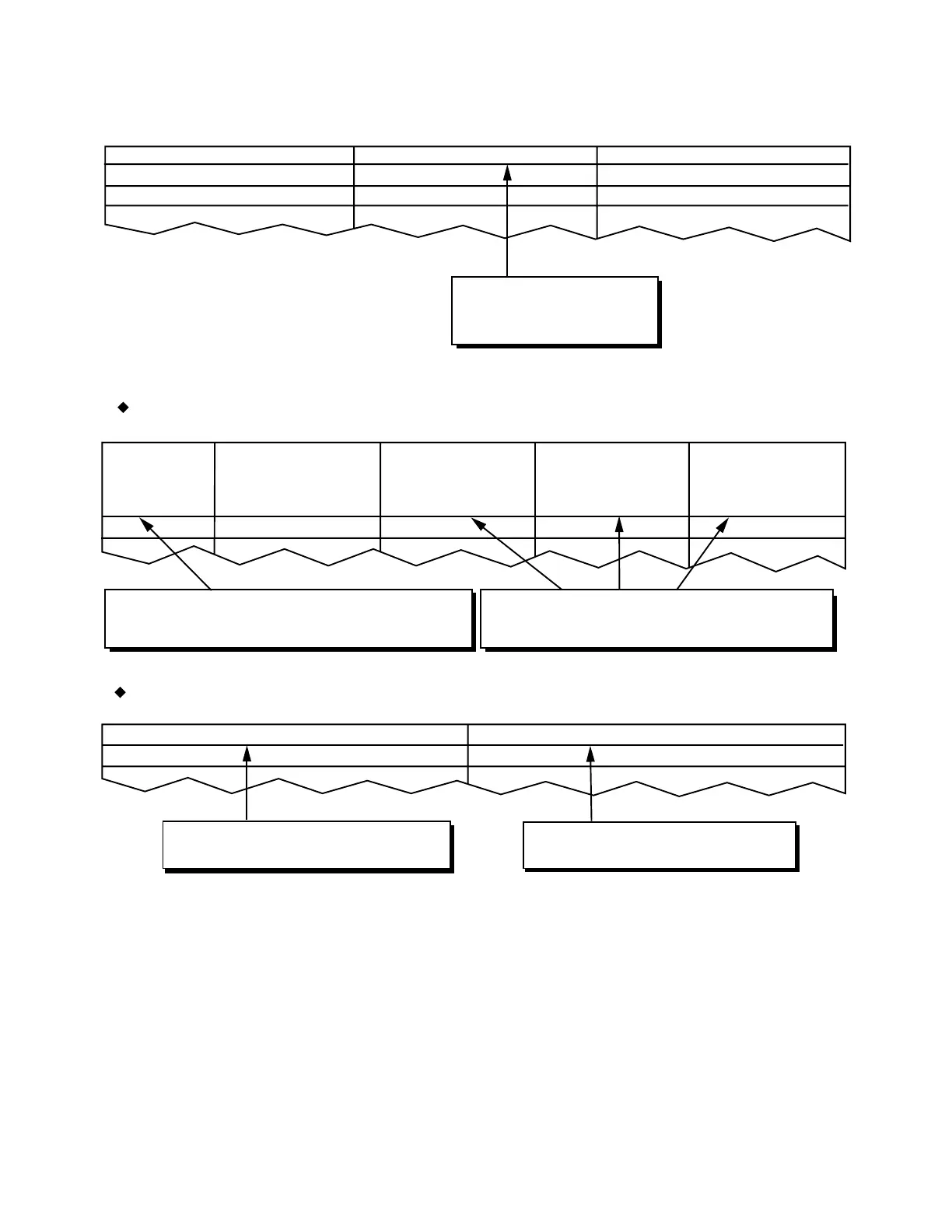

3. Data Entry Instructions
TENANT NUMBER (TN)
TYPE
PHANTOM
NUMBER
(PHANTOM)
Max. 6 DIGITS
SUITE ROOM MASTER
STATION
(MASTER STN)
SUITE ROOM SLAVE
STATION 1
(SLAVE STN 1)
SUITE ROOM SLAVE
STATION 2
(SLAVE STN 2)
SUITE ROOM SLAVE
STATION 3
(SLAVE STN 3)
PHANTOM
SLAVE 1/2/3
MASTER STATION NUMBER 1 (MASTER STN 1) MASTER STATION NUMBER 2 (MASTER STN 2)
MASTER STN 1
MASTER STN 2
Master station number of Master Suite Room
Master station number of Slave Suite Room
When phantom number is not assigned, enter the
return key.
When slave number is not assigned, enter the
return key.
0 = Single Suite Room
1 = Double Suite Room Note
Note: When assigning Double Suite Room , Single Suite Room data assignment is necessary in advance.
When TYPE=0 (Single Suite Room)
When TYPE=1 (Double Suite Room)
STATION NUMBER (STN) TYPE (TYPE) 0/1
