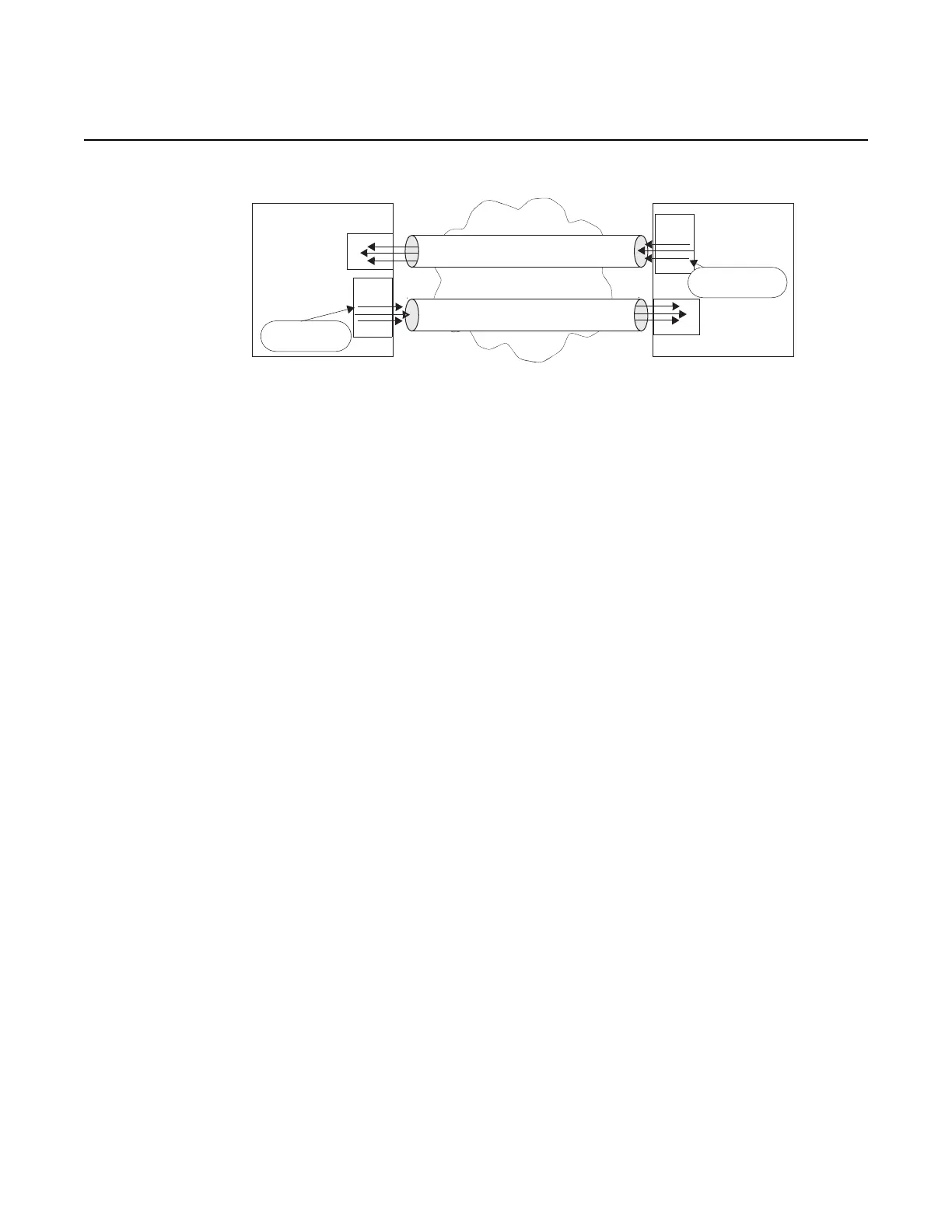

Figure 12 SDPs — Uni-Directional Tunnels
Use the following CLI syntax to create a spoke SDP binding with an Epipe service:
configure>service# epipe service-id [customer customer-id]
spoke-sdp sdp-id:vc-id [vc-type {ether|vlan}]
vlan-vc-tag 0..4094
egress
vc-label egress-vc-label
ingress
vc-label ingress-vc-label
no shutdown
The following example displays the command usage to bind an Epipe service
between ALA-1 and ALA-2. This example assumes the SAPs have already been
configured (see “Distributed Epipe SAPs”).
A:ALA-1>configure>service# epipe 5500
configure>service>epipe# spoke-sdp 2:123
configure>service>epipe>spoke-sdp# egress
configure>service>epipe>spoke-sdp>egress# vc-label 5500
configure>service>epipe>spoke-sdp>egress# exit
configure>service>epipe>spoke-sdp# ingress
configure>service>epipe>spoke-sdp>ingress# vc-label 6600
configure>service>epipe>spoke-sdp>ingress# exit
configure>service>epipe>spoke-sdp# no shutdown
ALA-2>configure>service# epipe 5500
configure>service>epipe# spoke-sdp 2:123
configure>service>epipe>spoke-sdp# egress
configure>service>epipe>spoke-sdp>egress# vc-label 6600
configure>service>epipe>spoke-sdp>egress# exit
configure>service>epipe>spoke-sdp# ingress
configure>service>epipe>spoke-sdp>ingress# vc-label 5500
configure>service>epipe>spoke-sdp>ingress# exit
configure>service>epipe>spoke-sdp# no shutdown
This example displays the SDP binding for the Epipe service between ALA-1 and
ALA-2:
A:ALA-1>configure>service# info
----------------------------------------------
...
epipe 5500 customer 5 create
description "Distributed epipe service to east coast"
sap lt:1/1/1:21 create
ALA-1 ALA-2
SDP 3
SDP 2
Epipe 2 for
customer 6
demux
demux
Epipe 2 for
customer 6
SPOKE-SDP 3
SPOKE-SDP 2
