Nokia 7330 - Figure 26 External Packet Forwarding; Configuration Model

Virtual Private LAN Service
184
FD 100/320Gbps NT and FX NT IHub Services Guide
3HH-11985-AAAA-TQZZA Issue: 13

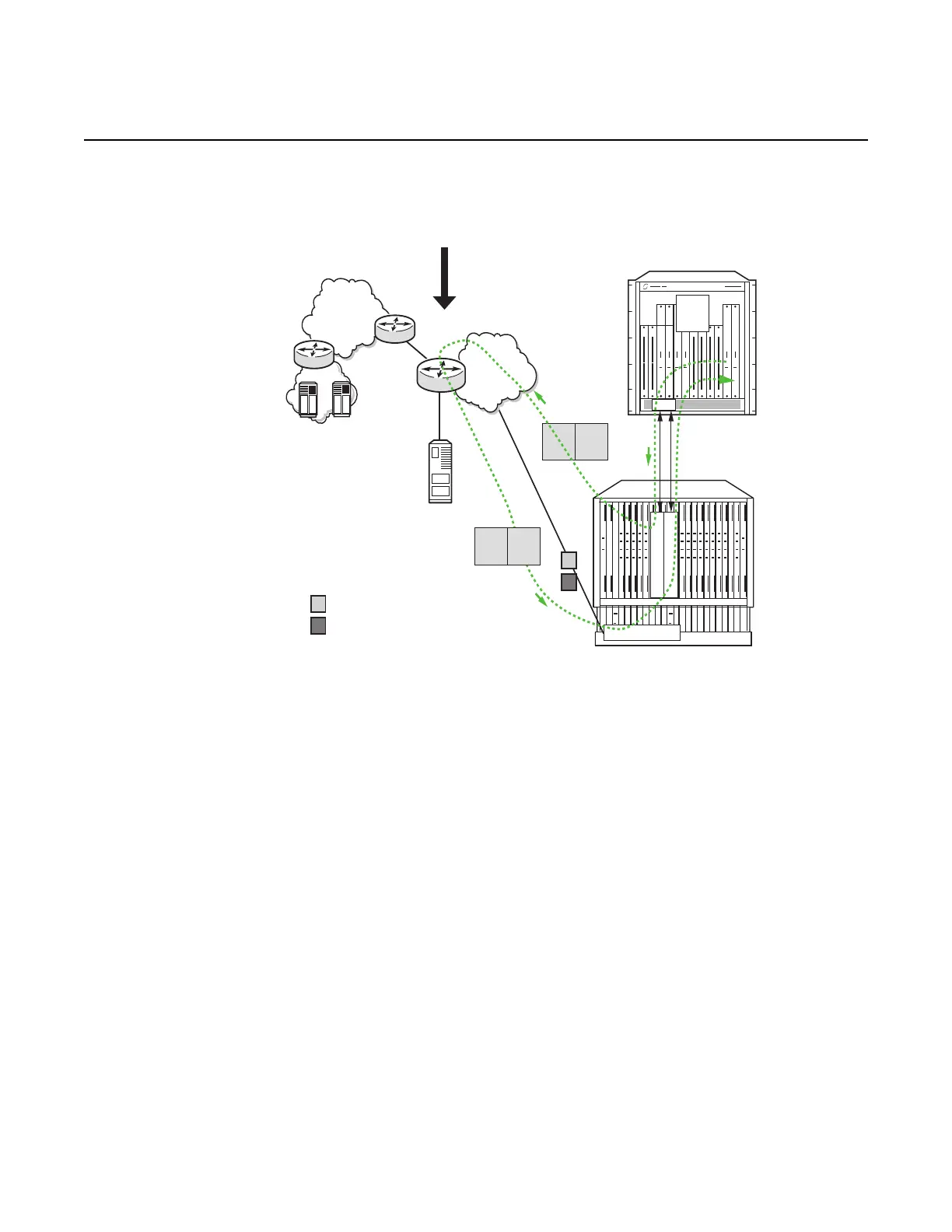

Figure 26 External Packet Forwarding
5.4.12.1 Configuration Model
The EPF IP configuration is accepted only when the following conditions are met:
• the EPF IP is configured on v-VPLS,
• a VPRN / IES interface is present over the v-VPLS on which EPF IP is configured,
• the VPRN / IES interface over the v-VPLS must have an primary IP Address,
• the configured EPF IP address is not the same as the VPRN / IES interface
primary IP address,
• the VPRN / IES interface primary IP address must be in the same subnet as the
IP address of the configured EPF IP.
MPLS VPN
VoIP
VoIP
platform
7600
PoP
Router
“R”
IP
v
MAC
V
POTS
POTS
VLAN Voice & H.248
VLAN OAM
ISAM
ISAM-V
NT I/O interface
NT NT
IP
v
MAC
R
IP
v
MAC
V
source dest
POTS
POTS
MAN
IP
v
MAC
R
IP
v
MAC
V
source dest
