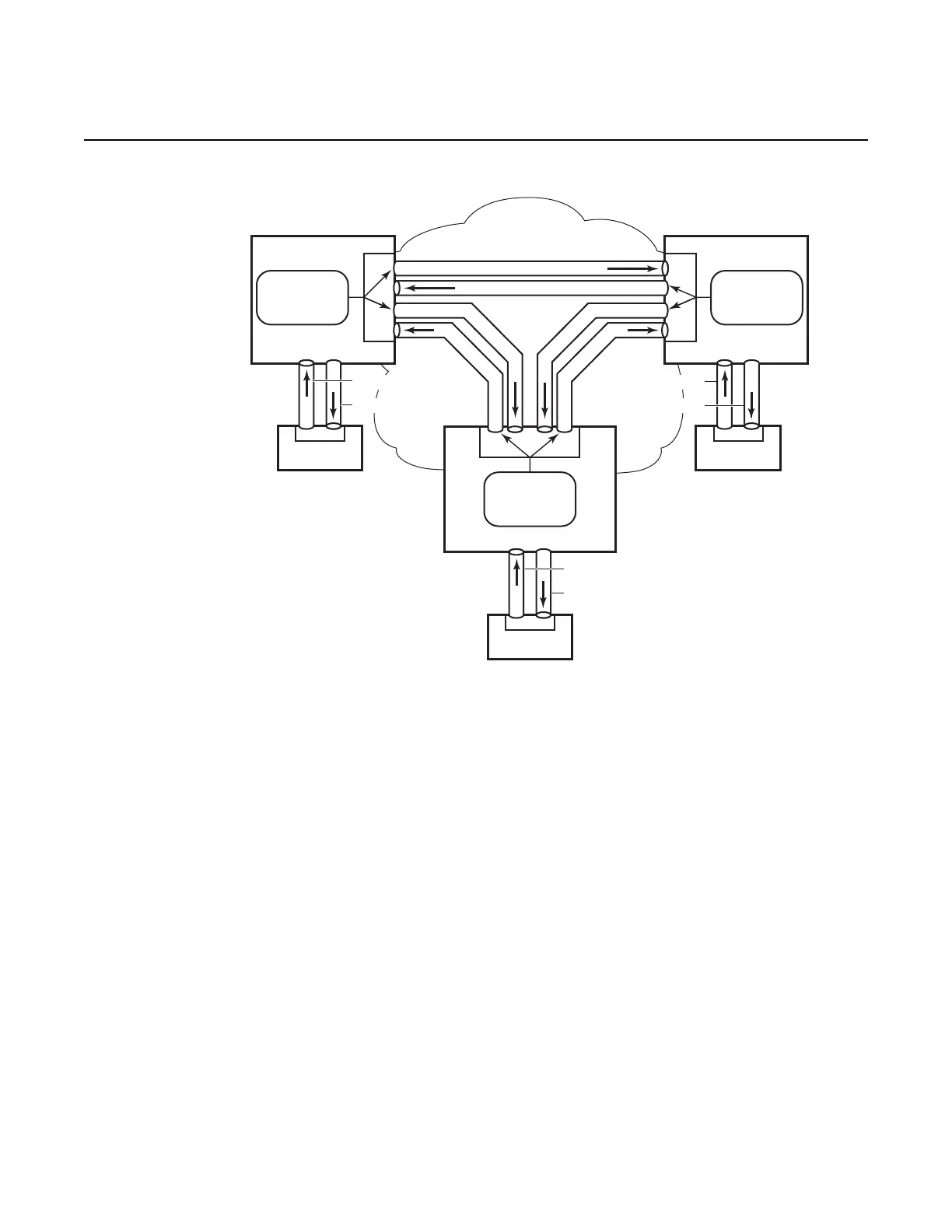

Figure 27 Uni-Directional Tunnels
Use the following CLI syntax to create a mesh or spoke SDP bindings with a
distributed VPLS service. SDPs must be configured prior to binding. Refer to
Configuring an SDP on page 73 for information about creating SDPs.
Use the following CLI syntax to configure mesh SDP bindings:
configure>service# vpls service-id
mesh-sdp sdp-id[:vc-id] [vc-type {ether|vlan}]
egress
vc-label egress-vc-label
ingress
vc-label ingress-vc-label
no shutdown
static-mac ieee-address
vlan-vc-tag 0..4094
Use the following CLI syntax to configure spoke SDP bindings:
configure>service# vpls service-id
spoke-sdp sdp-id:vc-id [vc-type {ether|vlan}]
egress
vc-label egress-vc-label
ingress
vc-label ingress-vc-label
VPLS 9000
for
Customer 6001
VPLS 9000
for
Customer 6001
VPLS 9000
for
Customer 6001
ALA-1 ALA-2
ALA-3
MTU CMTU A
MTU B
MESH-SDP 3
MESH-SDP 4
MESH-SDP 4
MESH-SDP 6
MESH-SDP 5
MESH-SDP 5
Spoke-SDP 21
Spoke-SDP 22
Spoke-SDP 11
Spoke-SDP 10
Spoke-SDP 50
Spoke-SDP 51
