Nokia 7330 - MIX of VPLS and VPRN; Figure 17 NT VPLS Implementation

FD 100/320Gbps NT and FX NT IHub Services Guide Virtual Private LAN Service
Issue: 13 3HH-11985-AAAA-TQZZA 163
The following apply to v-VPLS SAP configuration:
• An SAP can only be configured on dot1q Ethernet encapsulation access/hybrid
ports.
• The v-VPLS operates in the context of a homogeneous VLAN ID, where all
Ethernet dot1q v-VPLS SAPs must refer to the v-VPLS VLAN ID.
• A v-VPLS SAP can only be simultaneously configured on a single v-VPLS.
• A v-VPLS SAP on a hybrid port cannot be configured with a * encap value.
• A v-VPLS SAP on a hybrid port cannot be configured with NULL encap value, if
another network interface is already configured with NULL encap value,
associated with the same hybrid port.
• A v-VPLS SAP on a hybrid port cannot be configured with an encap value of 'X',
if another network interface is already configured with the same encap value 'X',
associated with the same hybrid port.
Rules for handling frames in a v-VPLS are described in “v-VPLS traffic processing”.
5.3.2.3 Mix of VPLS and VPRN

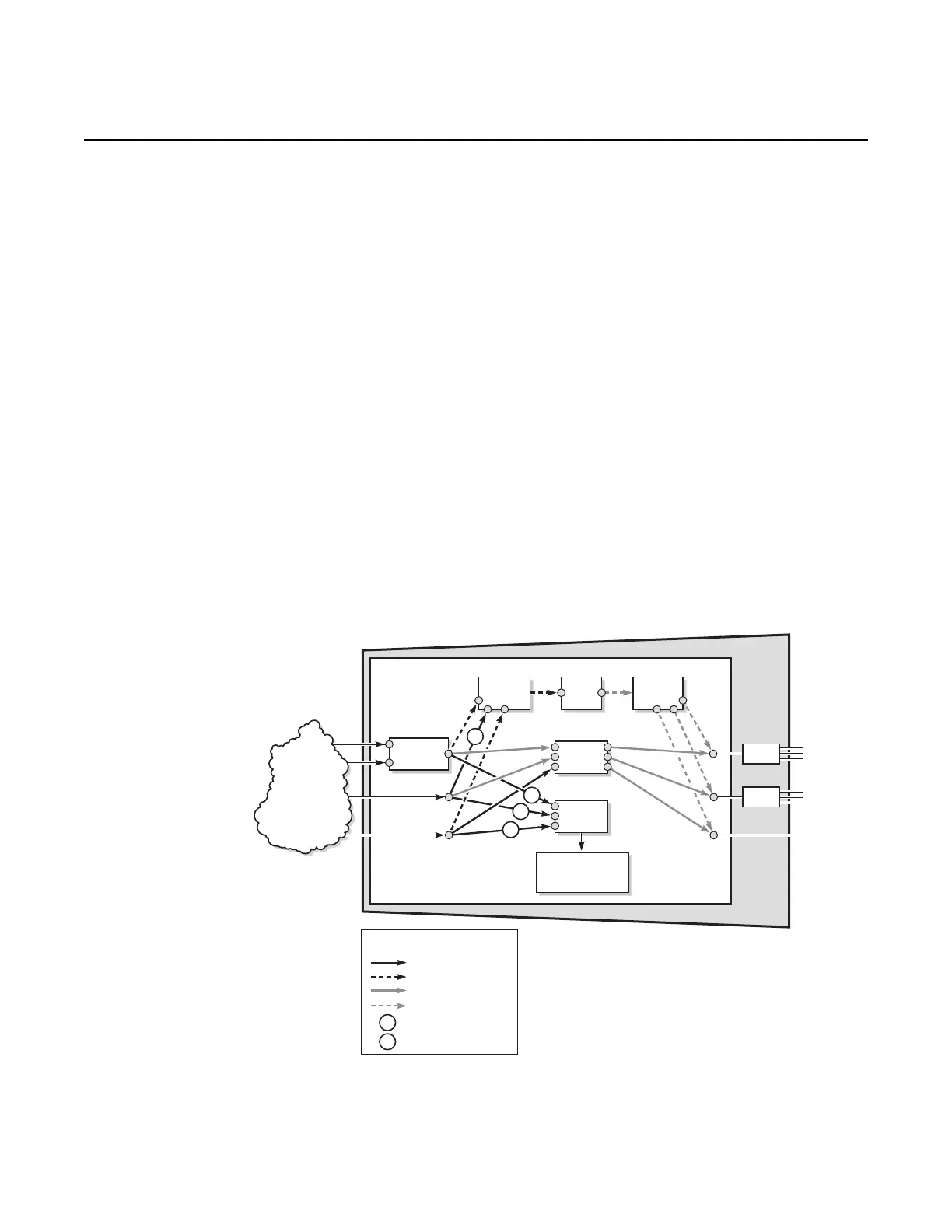

Figure 17 illustrates the mix of VPLS and VPRN implementation in the NT.
Figure 17 NT VPLS Implementation
LAG
VPRN
v-VPLS
VLAN 23
v-VPLS
VLAN 19
OBC
- RSTP/MSTP
Network
side
LT
NT
v-VPLS
VLAN 17
m-VPLS
PVID17
PVID19
Tagged_17
Externally untagged
Tagged_19
PVID17
L2CP
Tagged_23
Legend:
2
1
2
2
2
1
