FD 100/320Gbps NT and FX NT IHub Services Guide Virtual Private LAN Service
Issue: 13 3HH-11985-AAAA-TQZZA 239

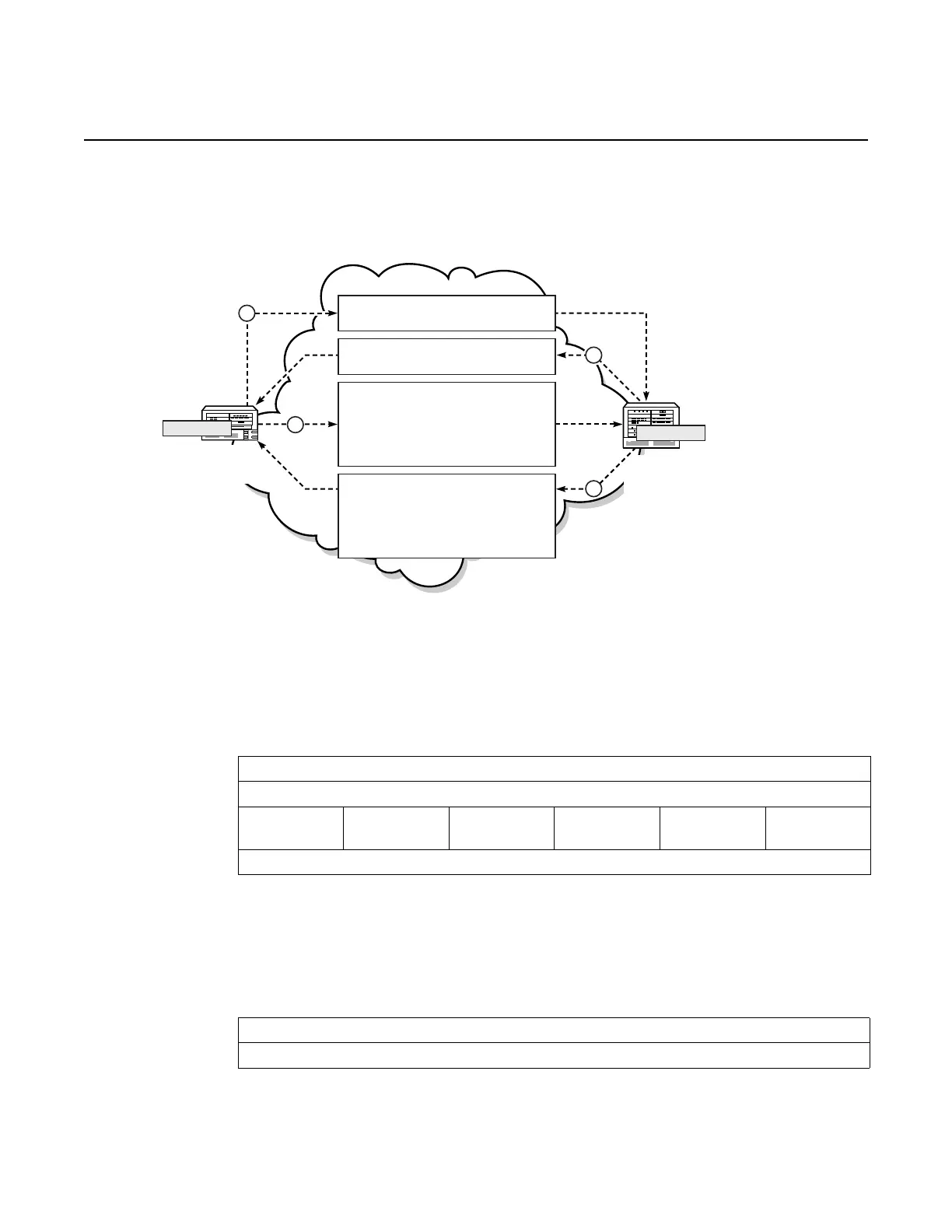

Figure 32 BGP AD Triggering LDP Functions
The first command will display the LDP peering relationships that have been
established as described in Table 117. The type of adjacency is displayed in the “Adj
Type” column. In this case, the type is “Both”, meaning link and targeted sessions
have been successfully established.
Table 117 Show Router LDP Session Output
The second command shows the specific LDP service label information broken up
per FEC element type, 128 or 129, basis as described in Table 118. The information
for FEC element 129 includes the AGI, SAII, and the TAII.
Table 118 Show Router LDP Bindings FEC-Type Services
pw-template 1
vpls 100 Customer 1 create
service-mtu 1478
bgp-ad
vpls-id 65535:100
pw-template-bind 1
no shutdown
pw-template 1
vpls 100 Customer 1 create
service-mtu 1478
bgp-ad
vpls-id 65535:100
pw-template-bind 1
no shutdown
FEC 129 Label Exchange
Far-End: 1.1.1.6 (BGP Next-hop)
AGI: 65535:100 (VPLS-id)
SAII: 1.1.1.134
TAII: 1.1.1.134 (VSI-id from BGP AD)
Label: 131063
Automatic SDP
Far-End: 1.1.1.134 (BGP Next-hop)
Automatic SDP
Far-End: 1.1.1.6 (BGP Next-hop)
FEC 129 Label Exchange
Far-End: 1.1.1.134 (BGP Next-hop)
AGI: 65535:100 (VPLS-id)
SAII: 1.1.1.6
TAII: 1.1.1.134 (VSI-id from BGP AD)
Label: 131067
1
3
4
2
PE6
MPLS-id=
1.1.1.6/32
65535:100
PE134
MPLS-id=
1.1.1.134/32
65535:100
24385
PERs6# show router ldp session
LDP Sessions
Peer LDP ID
1.1.1.134:0
Adj Type
Both
State
Established
Msg Sent
21482
Msg Recv
21482
Up Time
0d 15:38:44
No. of Sessions:1
PERs6# show router ldp bindings fec-type services
LDP LSR ID: 1.1.1.6
(1 of 2)
