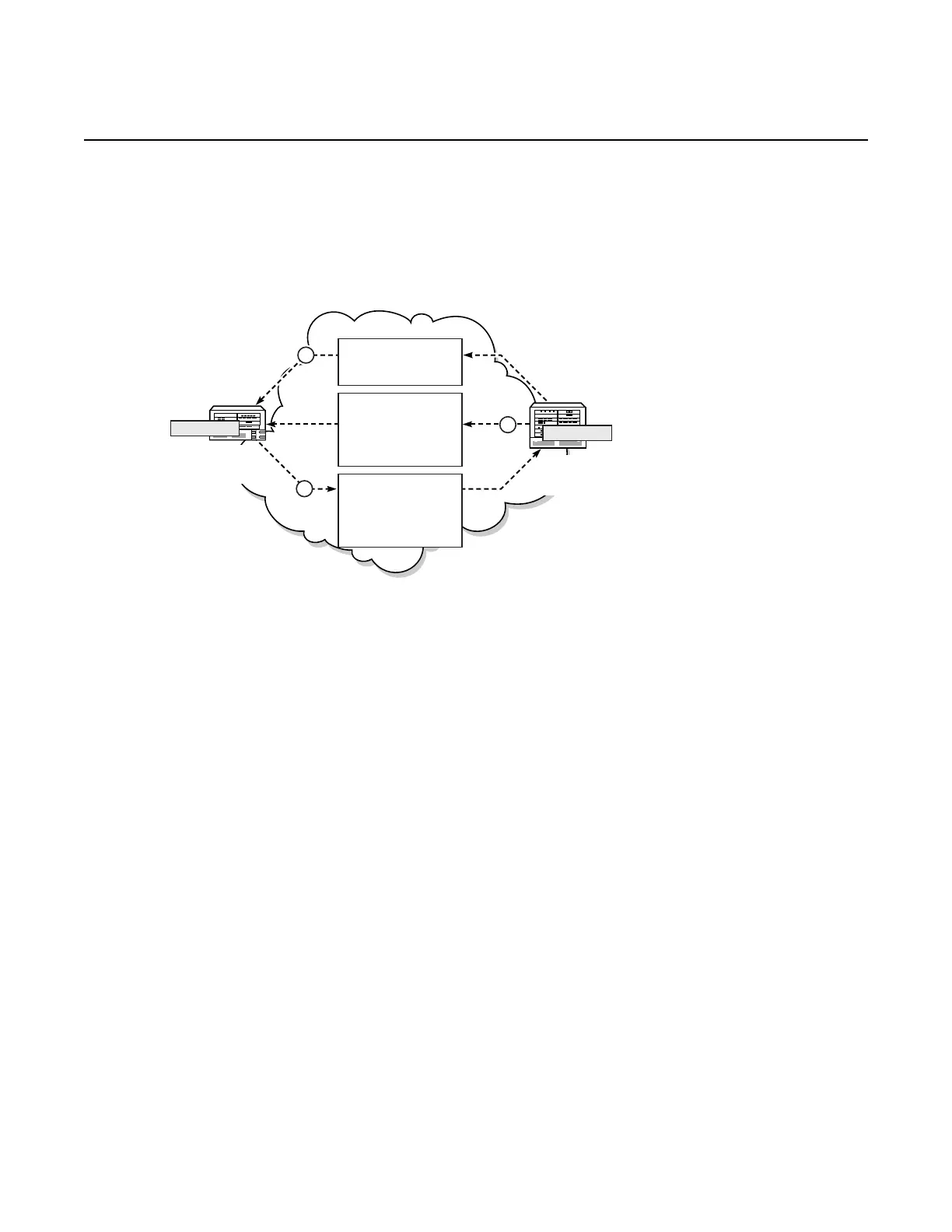

Figure 30 BGP AD Configuration Example
The BGP VPLS is configured using the commands shown in the following CLI
examples.
Example #1:
pw-template 1
*A:PE134>config>service>vpls# info
----------------------------------------------
bgp
route-distinguisher 65535:100
route-target export target:65535:100 import target:65535:100
pw-template-bind 1
exit
bgp-ad
vpls-id 65535:100
vsi-id
prefix 1.1.1.134
no shutdown
exit
sap 1/1/20:600.* create
exit
no shutdown
----------------------------------------------
Example #2:
*A:PE134>config>service>vpls#
pw-template 1
L2VPN BGP AD
VPLS-id: 65535:100
VLS-id: 1.1.1.134
L2VPN BGP AD
RD: 65535:100
VSI-id: 1.1.1.134
RT: 65535:100
Next-hop: Self
2
3
1
PE6
MPLS-id=
1.1.1.6/32
65535:100
PE134
MPLS-id=
1.1.1.134/32
65535:100
24386
L2VPN BGP AD
RD: 65535:100
VSI-id: 1.1.1.6
RT: 65535:100
Next-hop: Self
