Nokia 7330 - Figure 31 BGP VPLS Example

FD 100/320Gbps NT and FX NT IHub Services Guide Virtual Private LAN Service
Issue: 13 3HH-11985-AAAA-TQZZA 237

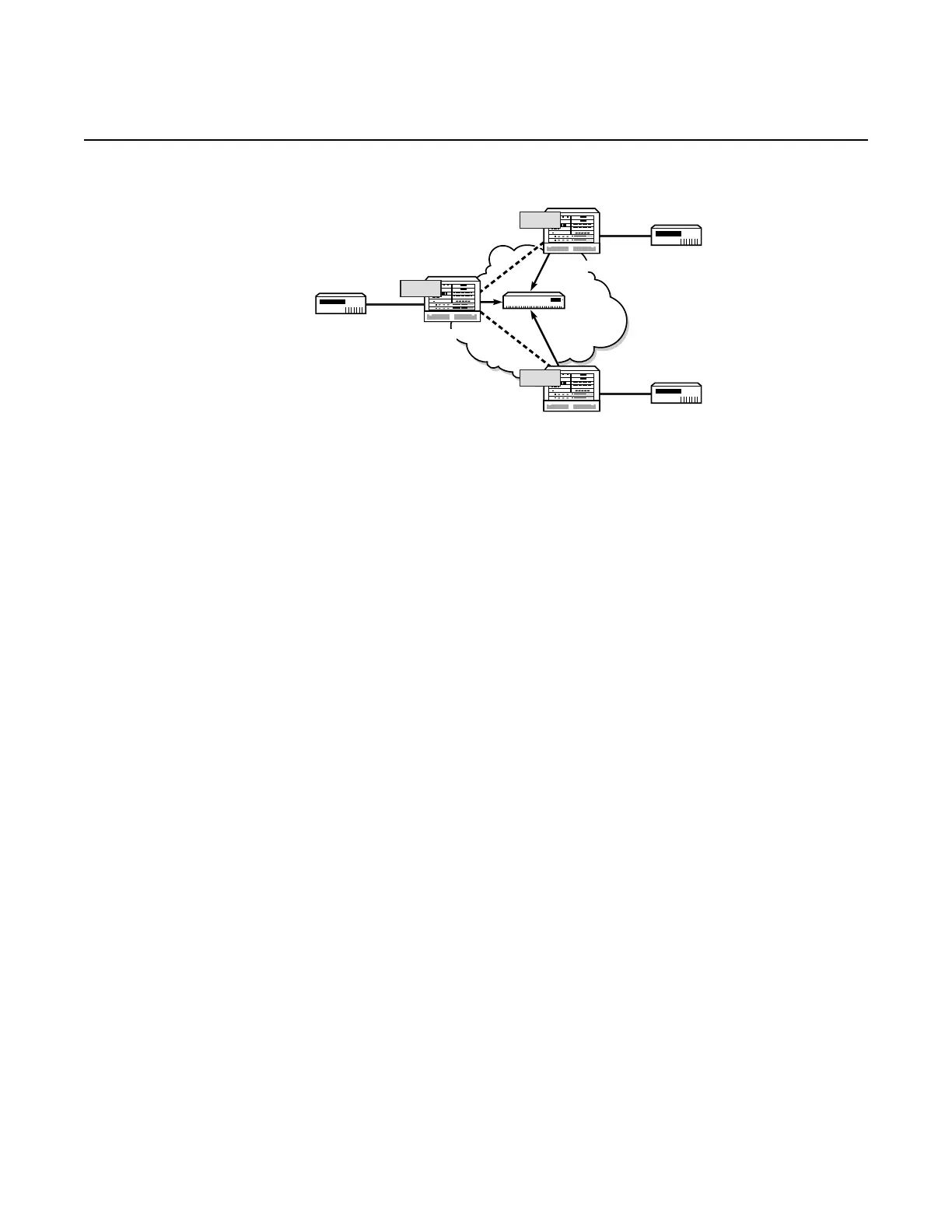

Figure 31 BGP VPLS Example
The BGP VPLS is configured in the PE24, PE25, and PE26 using the commands
shown in the following CLI examples.
Example #1:
*A:PE24>config>service>vpls# info
----------------------------------------------
bgp
route-distinguisher 65024:600
route-target export target:65019:600 import target:65019:600
pw-template-bind 1
exit
bgp-vpls
max-ve-id 100
ve-name 24
ve-id 24
exit
no shutdown
exit
sap 1/1/20:600.* create
exit
no shutdown
----------------------------------------------
Example #2:
*A:PE24>config>service>vpls#
*A:PE25>config>service>vpls# info
----------------------------------------------
bgp
route-distinguisher 65025:600
route-target export target:65019:600 import target:65019:600
pw-template-bind 1
exit
bgp-vpls
max-ve-id 100
ve-name 25
ve-id 25
IP/MPLS
RR
PE-25
VPLS
PE-26
VPLS
PE-24
VPLS
24384
