Rohde & Schwarz RTM3K-COM2 User Manual

Waveform analysis
R&S
®
RTM3000
112User Manual 1335.9090.02 ─ 09

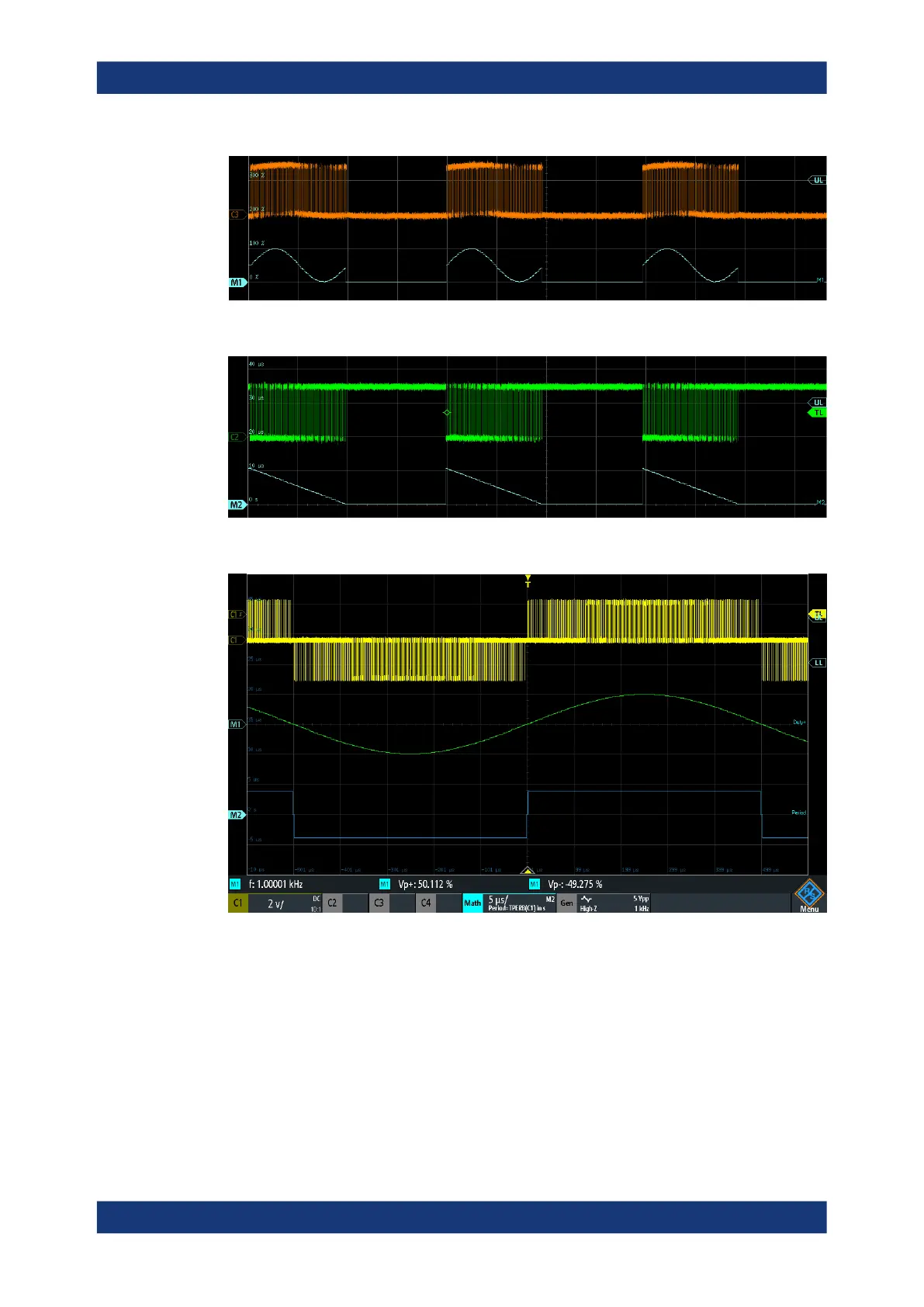

Figure 7-4: Unipolar PWM signal with duty cycle track M1, which is the demodulated waveform
Figure 7-5: Unipolar PWM signal with pulse width track M2
Figure 7-6: Bipolar PWM waveform with duty cycle track M1 in green and period track M2 in blue
Mathematics
