Interface

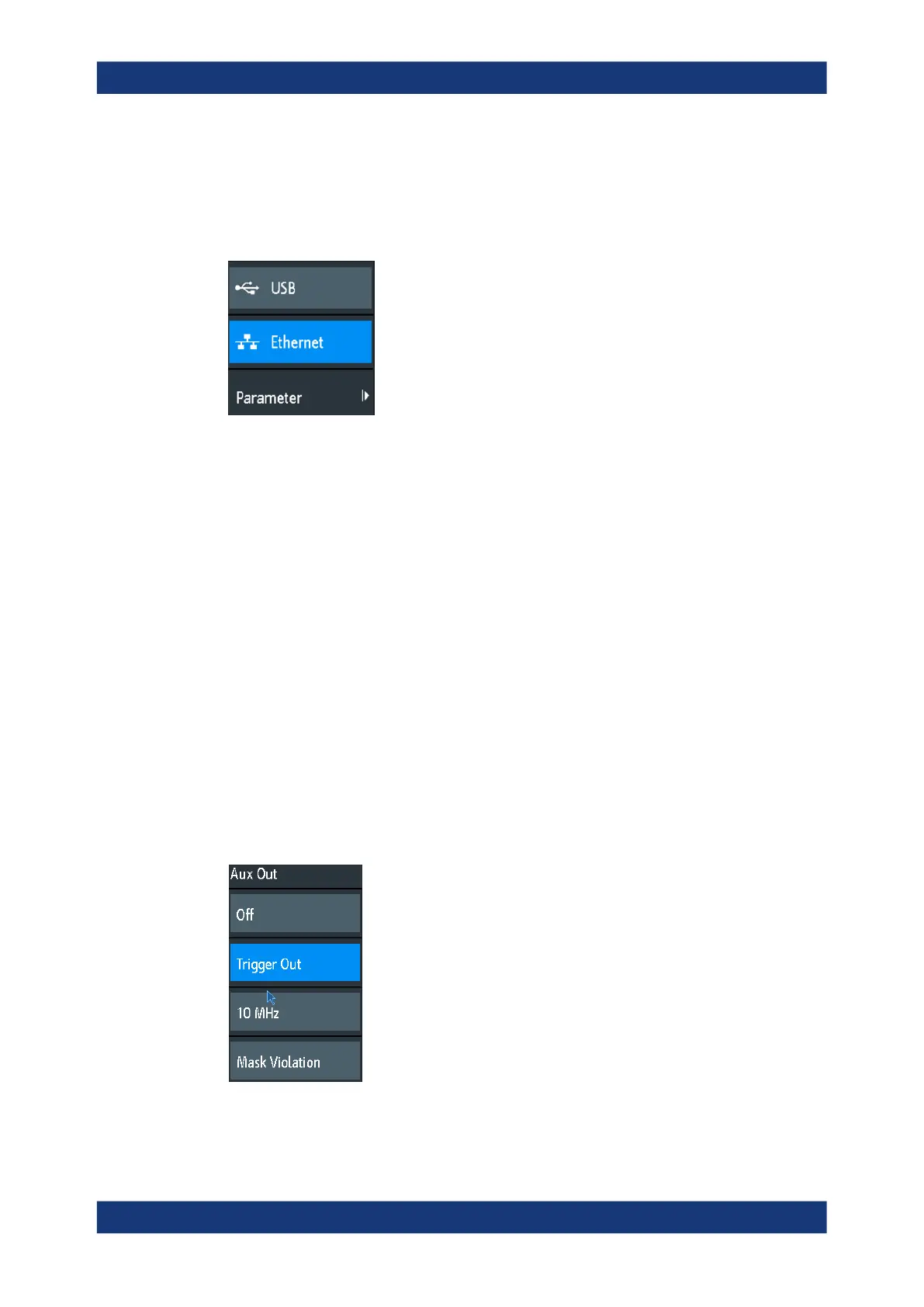

Activates or deactivates additional instrument interfaces. Use these interfaces to com-
municate with the instrument, for example to read out data or automate the measuring
station. USB and Ethernet (LAN) interfaces are installed in the rear panel. After select-
ing an interface, tap "Parameter" to define additional parameters.
USB ← Interface
Activates the type B USB interface on the rear panel for remote control. This USB
interface provides a simple way to connect the instrument to a PC. The USB 2.0 stan-
dard is supported. Use a connection cable that is suitable for a type B USB interface.
See also: Chapter 12.2, "USB connection", on page 243.
Ethernet ← Interface
Activates the Ethernet interface on the rear panel, which allows connecting the instru-
ment to various other devices. Access to the instrument is controlled via its IP address.
By default, the instrument is set to use DHCP. If the instrument cannot find a DHCP
server, it takes about two minutes until the Ethernet parameters are available.
See also: Chapter 12.1, "LAN connection", on page 240.
Parameter ← Interface
Opens a dialog to configure Ethernet parameters, or to select the USB connection
depending on the selected interface.
Aux Out
Opens the "Aux Out" menu to define which signals are generated at the [Aux Out] con-
nector.
"Off"
Disables the auxiliary output.
