"Trigger Out"
Outputs a pulse when the instrument triggers.
This selection enables the "Pulse" action in the "Actions on Trigger"
configuration, see Chapter 6.12, "Actions on trigger", on page 98.
"10 MHz"
Outputs a 10 MHz reference frequency.
"Mask Violation"
Outputs a pulse when a mask is violated.
This setting is only available if the "Mask" application is selected in
the "Apps Selection" dialog.
Remote command:
TRIGger:OUT:MODE on page 602
Firmware Update
See Chapter 11.8, "Updating the firmware", on page 239.
Options
See Chapter 11.7, "Options", on page 238.
Date & Time
See Chapter 11.6, "Setting the date, time and language", on page 236.
Device Name
Sets a name of the instrument to simplify the instrument identification. The name is
shown, for example, on screenshots and in the device information.
Education Mode
Disables several functions for educational purposes or enables these functions for nor-
mal usage.

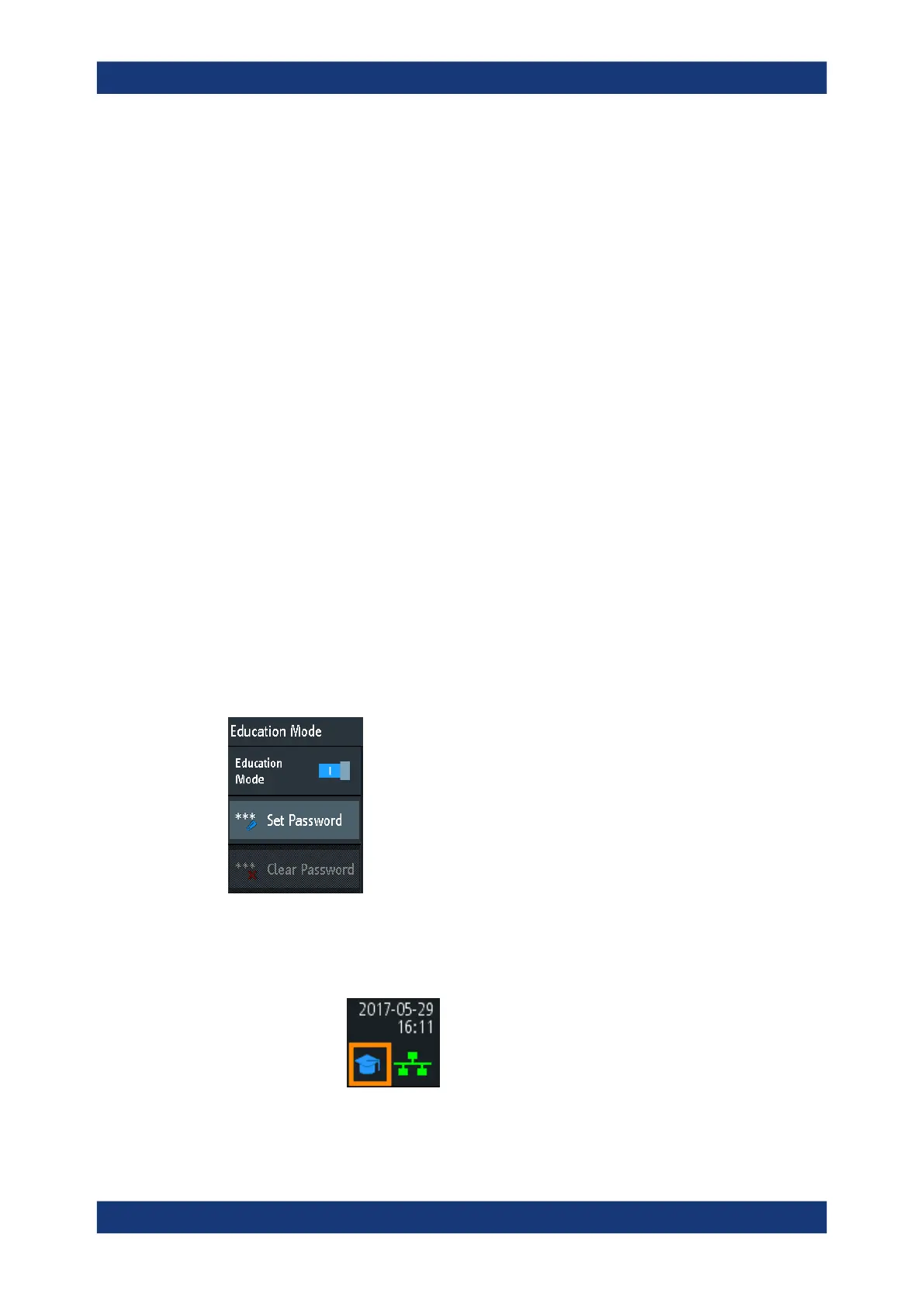

"Education Mode"
If enabled, the autoset, quick measurement and automatic measure-
ment are disabled and not available. The active education mode is
indicated in the upper right corner by a doctoral cap icon.
