Serial bus analysis
R&S
®
RTM3000
307User Manual 1335.9090.02 ─ 09

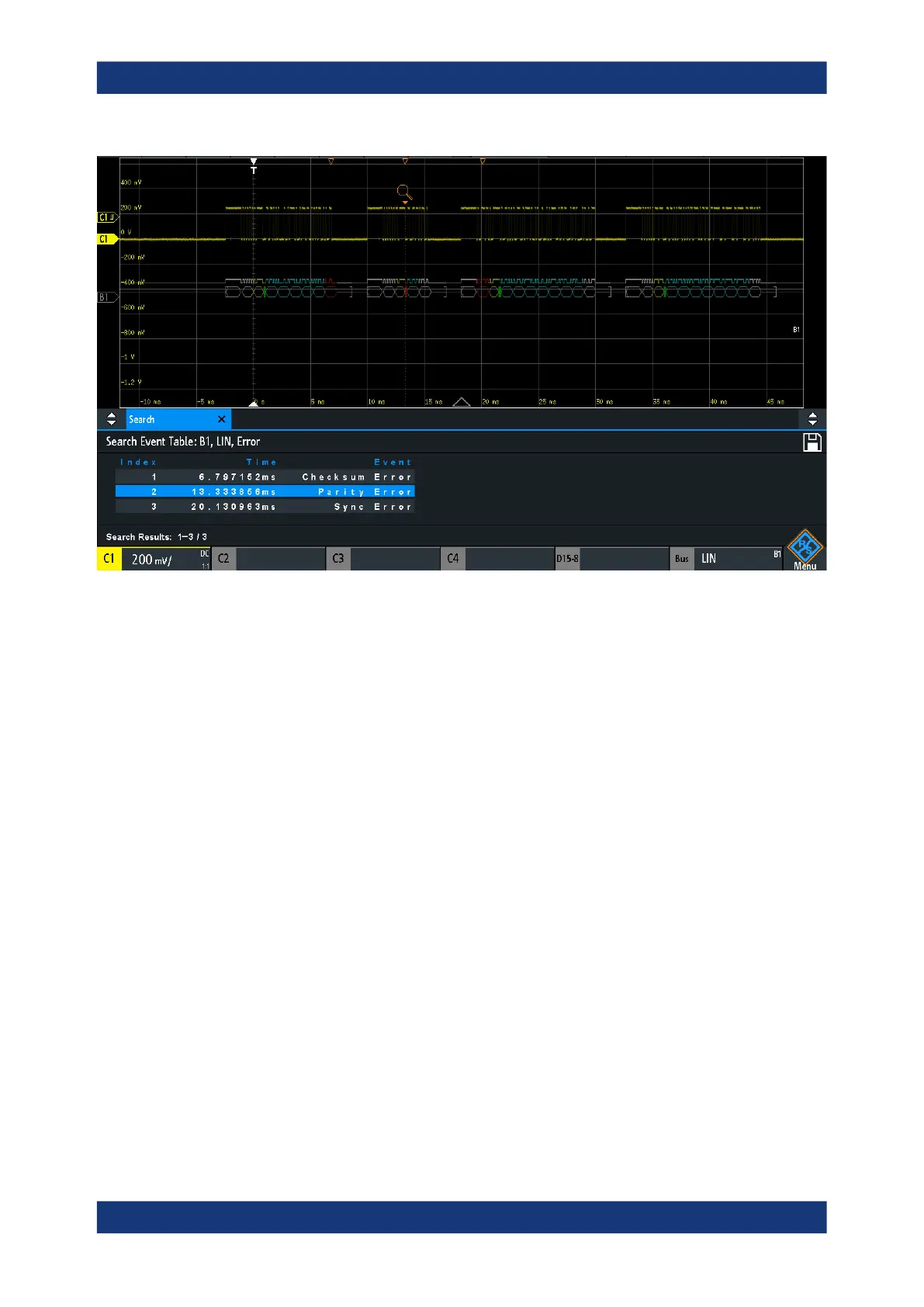

Figure 13-34: Search on a LIN bus for errors
To search for events in a LIN signal
1. Configure and decode the bus correctly.
2. Acquire decoded data.
3. Press the Search key.
4. Select the "Search Type" = "Protocol".
5. Select the "Source": the bus that is configured for LIN protocol.
6. Select the "Event" you want to search for.
7. Enter additional settings, depending on the event.
LIN (option R&S RTM-K3)
