Serial bus analysis
R&S
®
RTM3000
308User Manual 1335.9090.02 ─ 09
LIN Search Settings

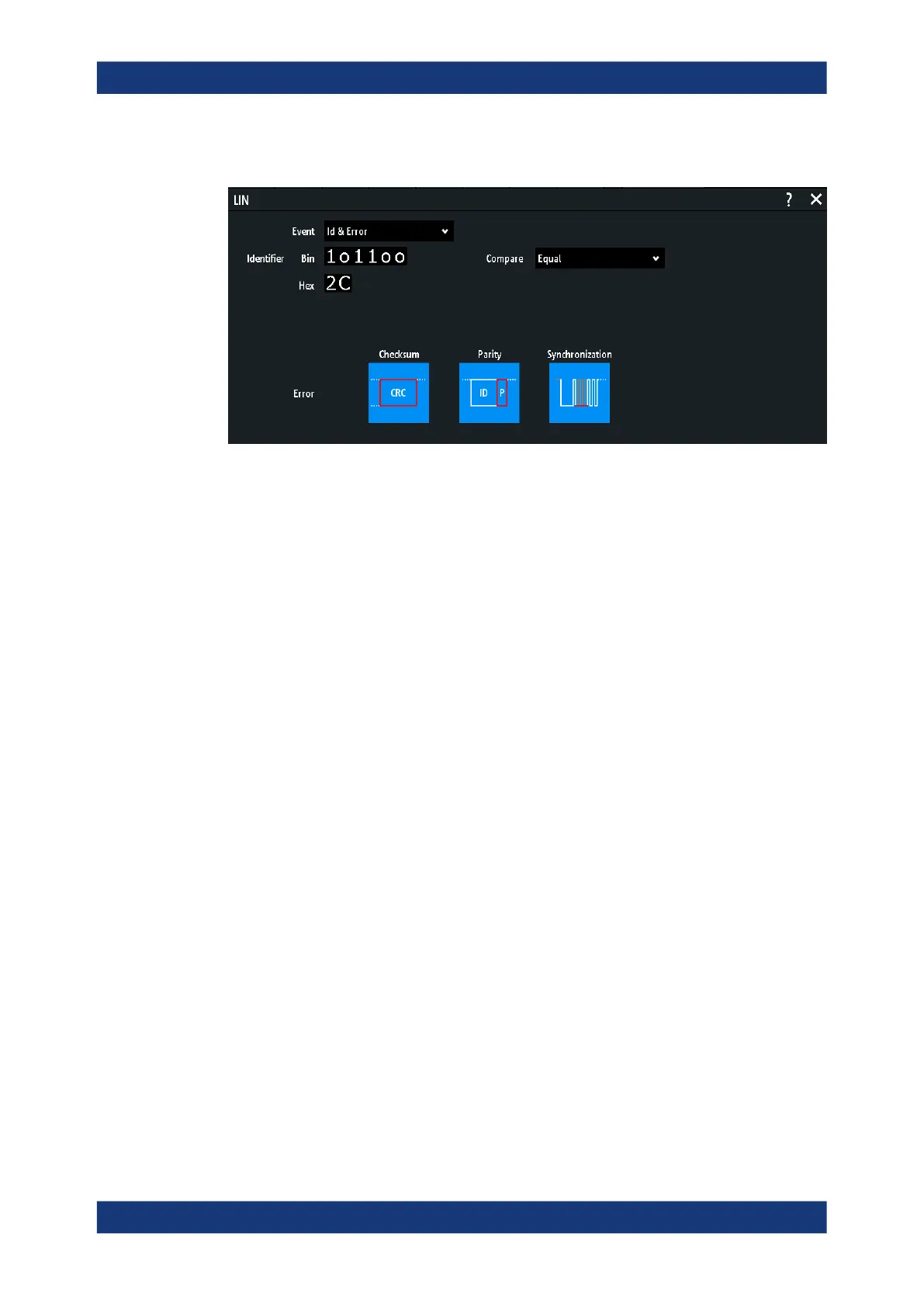

Figure 13-35: Search on LIN bus for frames with identifier 2C (hex) that have an error
Event...........................................................................................................................308
Frame Setup............................................................................................................... 308
Error............................................................................................................................ 308
Identifier condition.......................................................................................................308
Data condition............................................................................................................. 309
Event
Sets the event or combination of events to be searched for. Depending on the selected
event, additional settings are displayed.
Remote command:
SEARch:PROTocol:LIN:CONDition on page 664
Frame Setup
Selects the frame type to be searched for.
Remote command:
SEARch:PROTocol:CAN:FRAMe on page 651
Error
Selects the error type to be searched for. You can select one or more error types as
search condition. The error types are the same as in the LIN trigger setup.
See also "Error" on page 304.
The setting is only available if "Event" = "Error" or "ID & Error" is selected.
Remote command:
SEARch:PROTocol:LIN:CHKSerror on page 665
SEARch:PROTocol:LIN:IPERror on page 665
SEARch:PROTocol:LIN:SYERror on page 665
Identifier condition
Settings to define the identifier pattern, if "Event" = "Identifier" or "Id & Error" or "Id &
Data" is selected.
LIN (option R&S
RTM-K3)
