Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
380User Manual 1335.9090.02 ─ 09
11. Press the "Menu" button and scroll to the "Power" menu.
12. Select the correct channels for the "Current" and the "Voltage" sources.
13. Select the "Type" for the measurement.
14. Press the Autoset button to adjust the display scales automatically or adjust them
manually.
On the screen, you can see the measurement waveform of the current, the voltage
and the power. Also, the numeric measurement results are shown in the lower right
corner. For details, see Chapter 14.7.2, "Switching loss", on page 378.
14.7.2.3 Switching loss settings
Required probes:
●
Differential voltage probe
●
Current probe
► To open the "Switching Loss" settings menu:
a) Press the Apps Selection key. Tap "Power Analysis".
b) In the "Power Path" tab, select "Switching Loss".

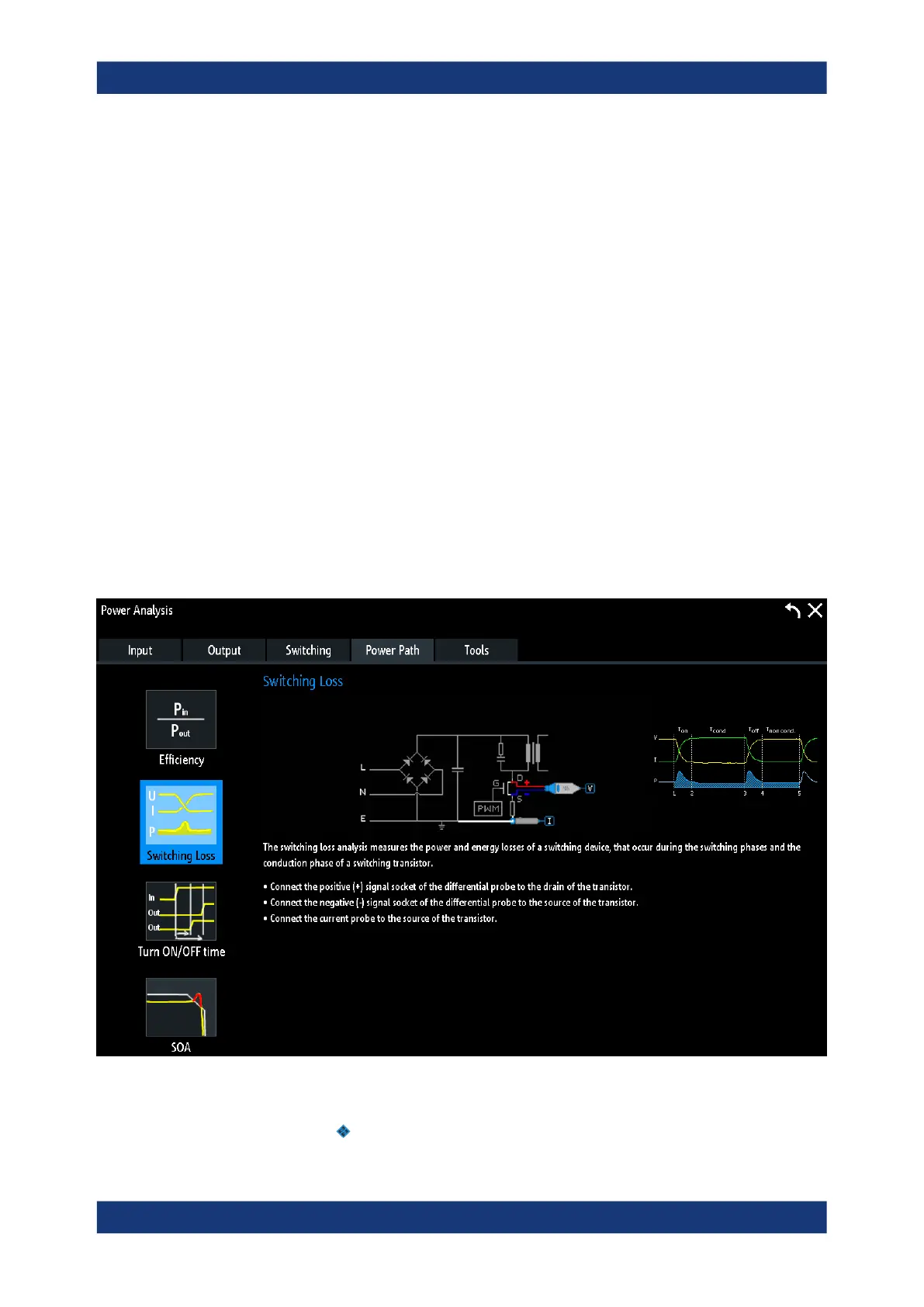

Figure 14-12: Setup of consumption analysis
c) Close the "Power Analysis".
d)
Tap the menu icon in the lower right corner of the screen.
Power path power measurements
