Polarity
Sets the edge, the transition time of which is to be analyzed:
●
rise time trigger
●
fall time trigger
●
rise and fall time trigger
Remote command:
TRIGger:A:RISetime:SLOPe on page 473
Comparison
Selects how the time limit for the slew rate is defined. The time measurement starts
when the signal crosses the first trigger level - the upper or lower level depending on
the selected slope - and stops when the signal crosses the second level.
"Greater than"
Triggers on transition times longer than the given "Rise Time".
"Lower than"
Triggers on transition times shorter than the given "Rise Time".

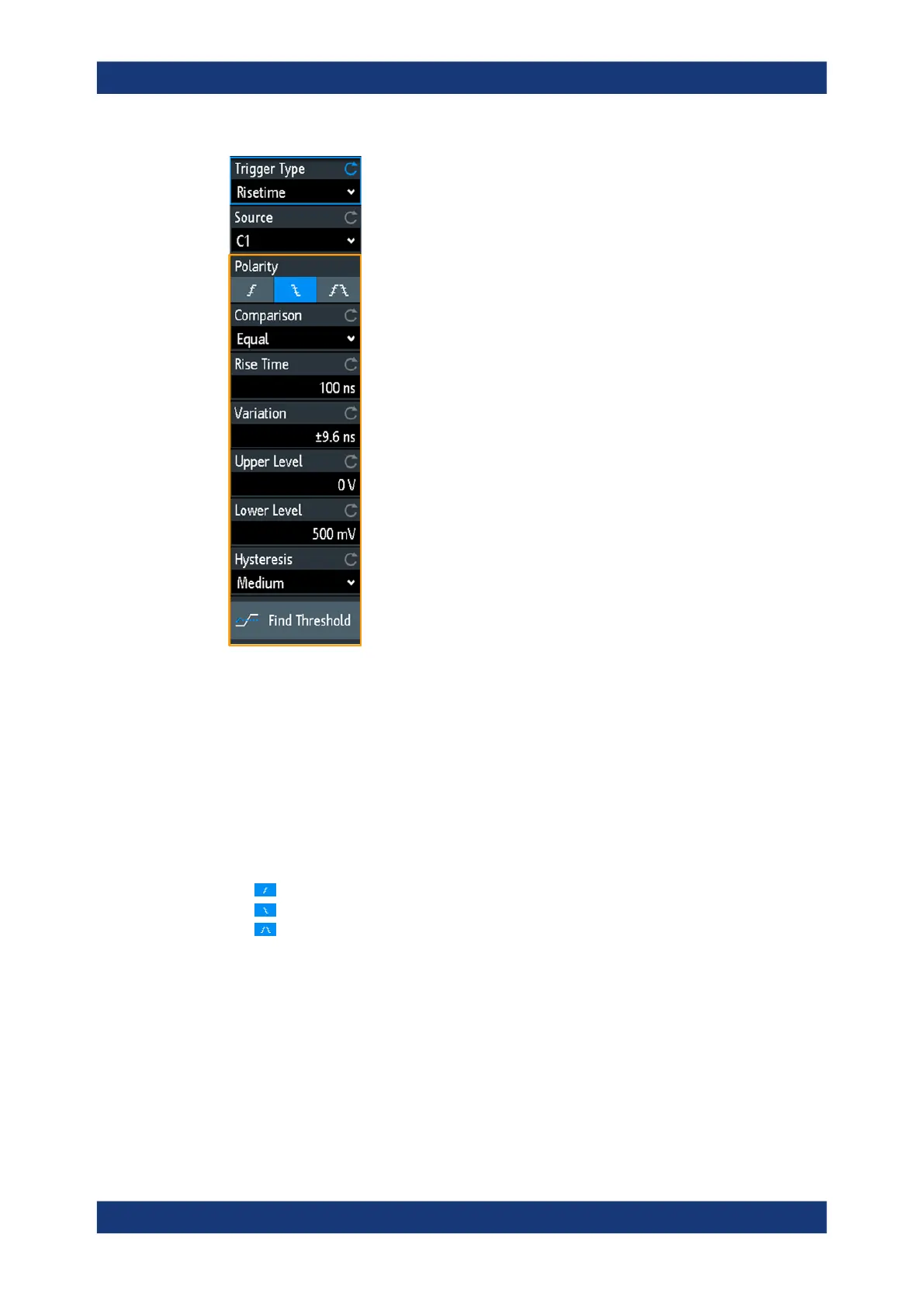

Rise time trigger
