ROPA Tiger 6 - Page 111

Operation
R-Concept
111 / 564

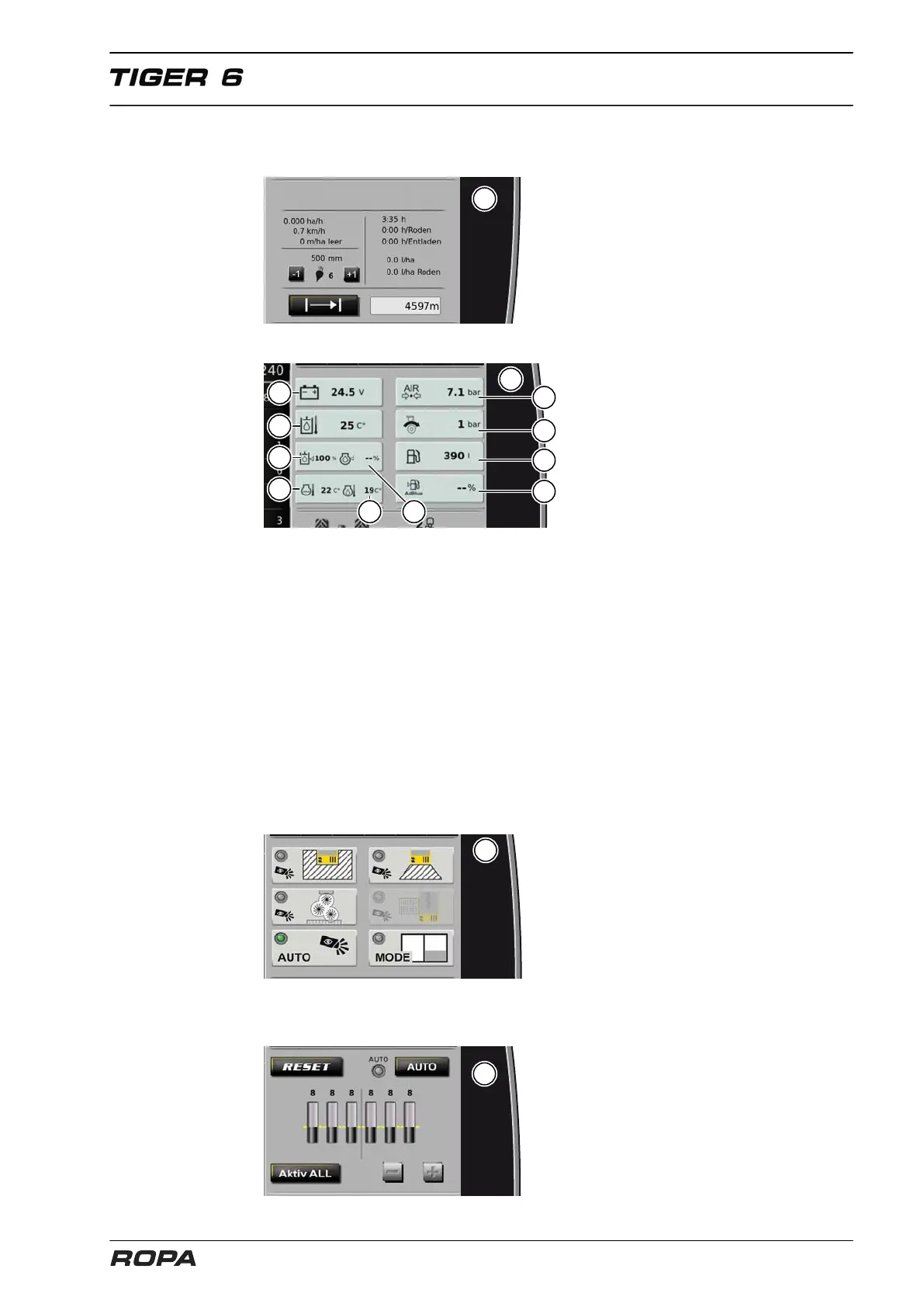

(3) Display field: Quick overview order data
See Page 130
client
field
3
(4) Display field: Operating parameters
4
9
10
11
12
5
6
7
8
13
14
(5) Voltage vehicle power supply
(6) Hydraulic oil temperature
(7) Hydraulic oil level
(8) Cooling water temperature
(9) Compressed air system reservoir pressure
(10) Pressure traction drive
– Arrow counterclockwise: higher pressure forward
– Arrow clockwise: higher pressure backward
(11) Tank level fuel
(12) AdBlue
®
tank content (RT6c only)
(13) Display without function
(14) Engine oil temperature (above 55°C is hidden)
(5) Display field: R-View
See Page 350
5
(6) Display field: single-row adjustment
See Page 262
6
