Operation
Lifter
260 / 564
Overview
11
7
6
4
9 8
10
3
1
5
2

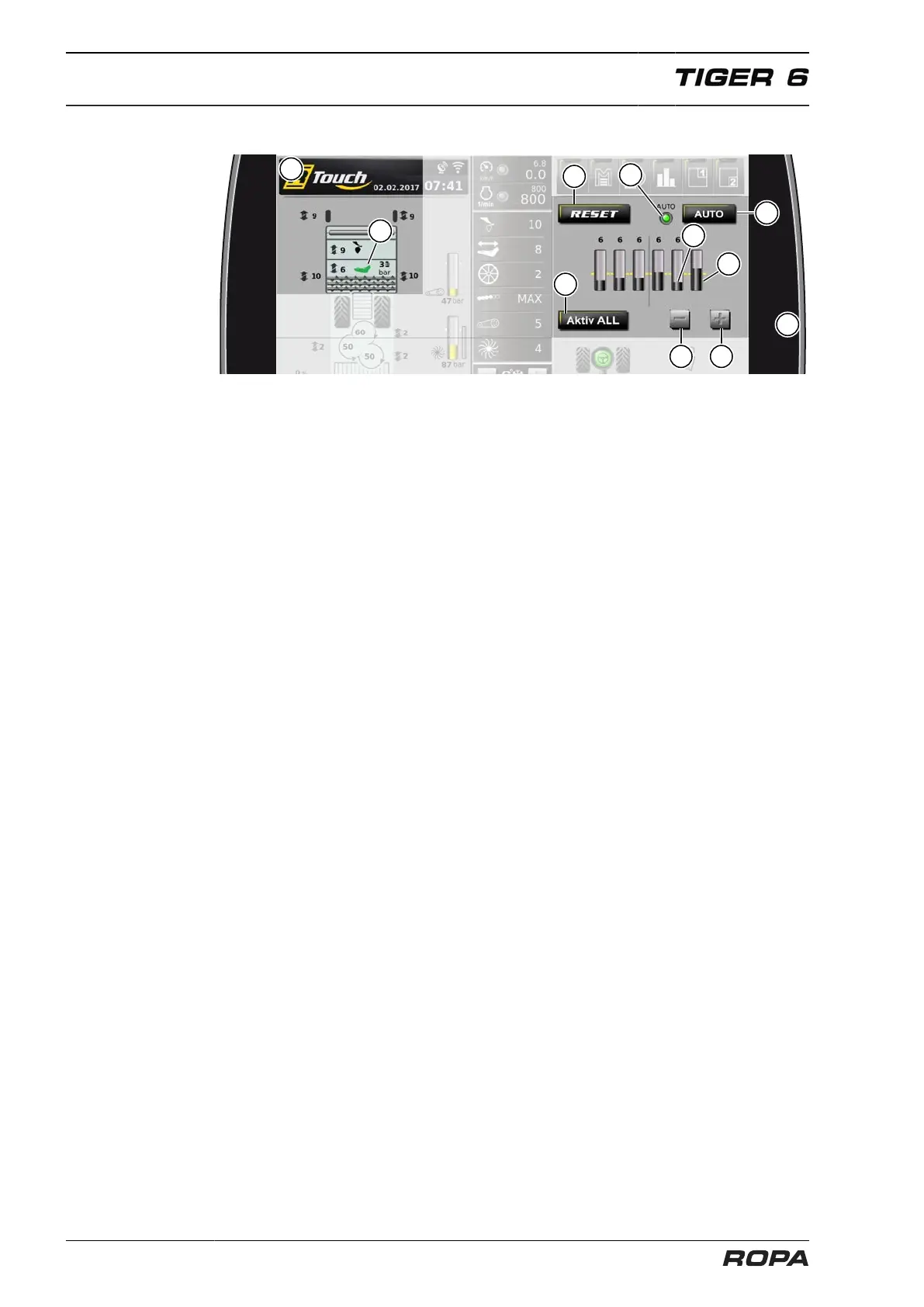

(1) Display area lifter/defoliator
(2) Display area single-row adjustment
(3) "RESET" switch panel
The share depth is adjusted to the last common share of all rows
(4) "Activate ALL" switch panel
Activates all rows
(5) "AUTO" switch panel (optional)
Enable or disable automatic share depth adjustment
(6) The automatic share depth adjustment has corrected itself down from the
default value 6, e.g. lane
(7) The automatic share depth adjustment has corrected itself up from the default
value 6
(8) Set share depth flatter
(9) Set share depth deeper
(10) Display of automatic share depth adjustment enabled (green),
disabled (grey) (See Page 263)
(11) Display of automatic share depth adjustment mode,
active (green lifting share),
not active (grey lifting share) (See Page 263)
