Boards for HiPath 3000
Peripheral Boards
Switches and LEDs
Lockout switch settings
● Up = free (default)
● Down = locked: existing connections remain active, new connections are locked.
– The yellow LED lights up when all connections are ended and the board is effectively
locked.
– The yellow LED flashes when a lockout request is entered (via lockout switch or soft-
ware) but at least one call is still active.
To reset the board to the default state, activate the lockout switch twice within the first 10 s of
board startup.

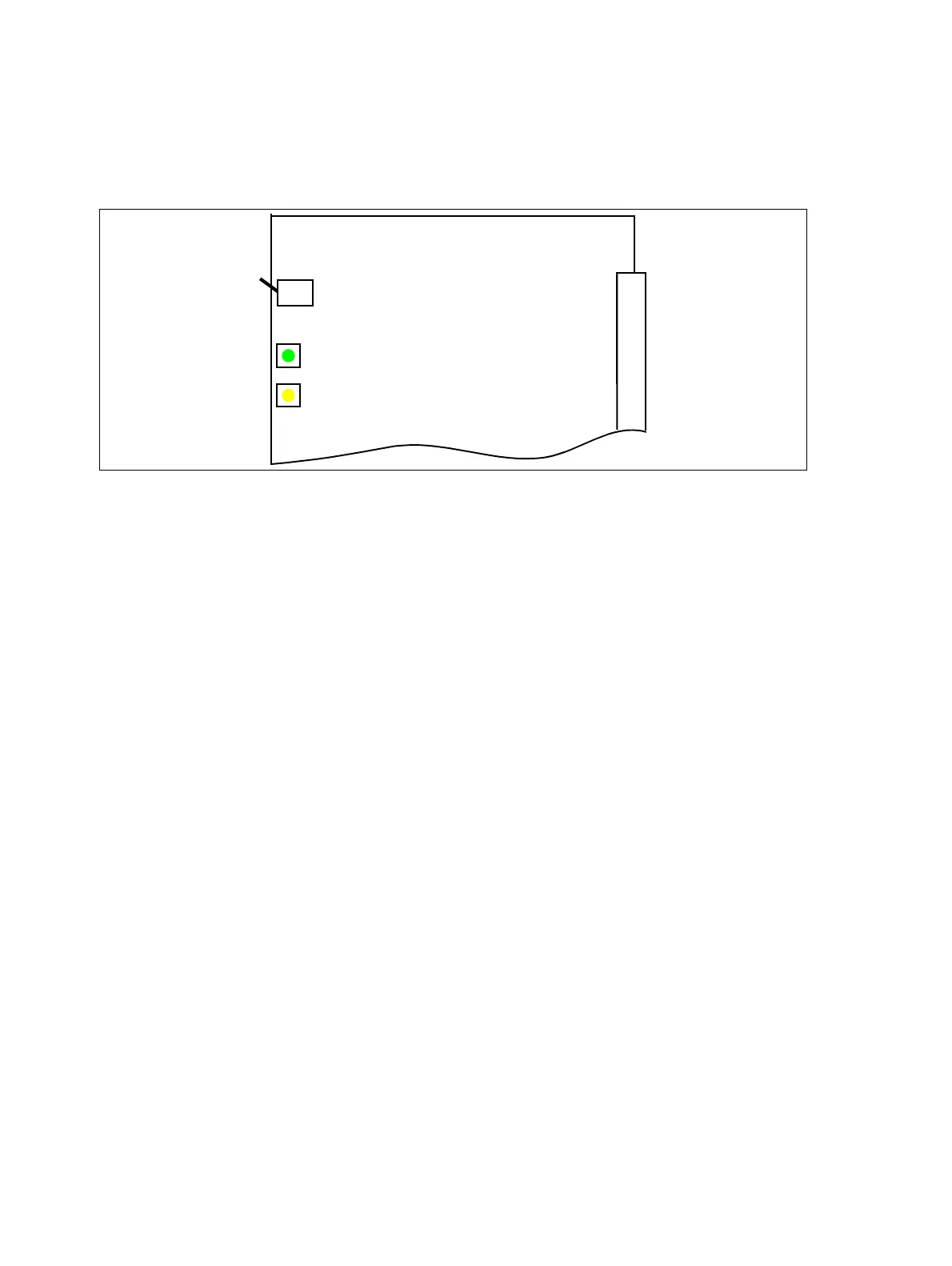

Figure 3-55 IVML8, IVML24 (S30122-X7380-X100, -X)
LED (green)
LED (yellow)
Lockout switch
(position = free, factory default)
