Installing HiPath 3000
P31003-H3560-S403-54-7620, 09/05
4-132 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
inst_h3.fm
Installing HiPath 3750, HiPath 3700
Procedure (Figure 4-73)
Mounting the cover
Step Activity
1. Insert a slotted screwdriver (with the blade vertical) into a recess (1).
2. Carefully swing the handle of the screwdriver toward the center of the cabinet (2)
until the fastener snaps out and the cover loosens.
3. Then insert the screwdriver in the second recess (3), loosen its snap fastener.

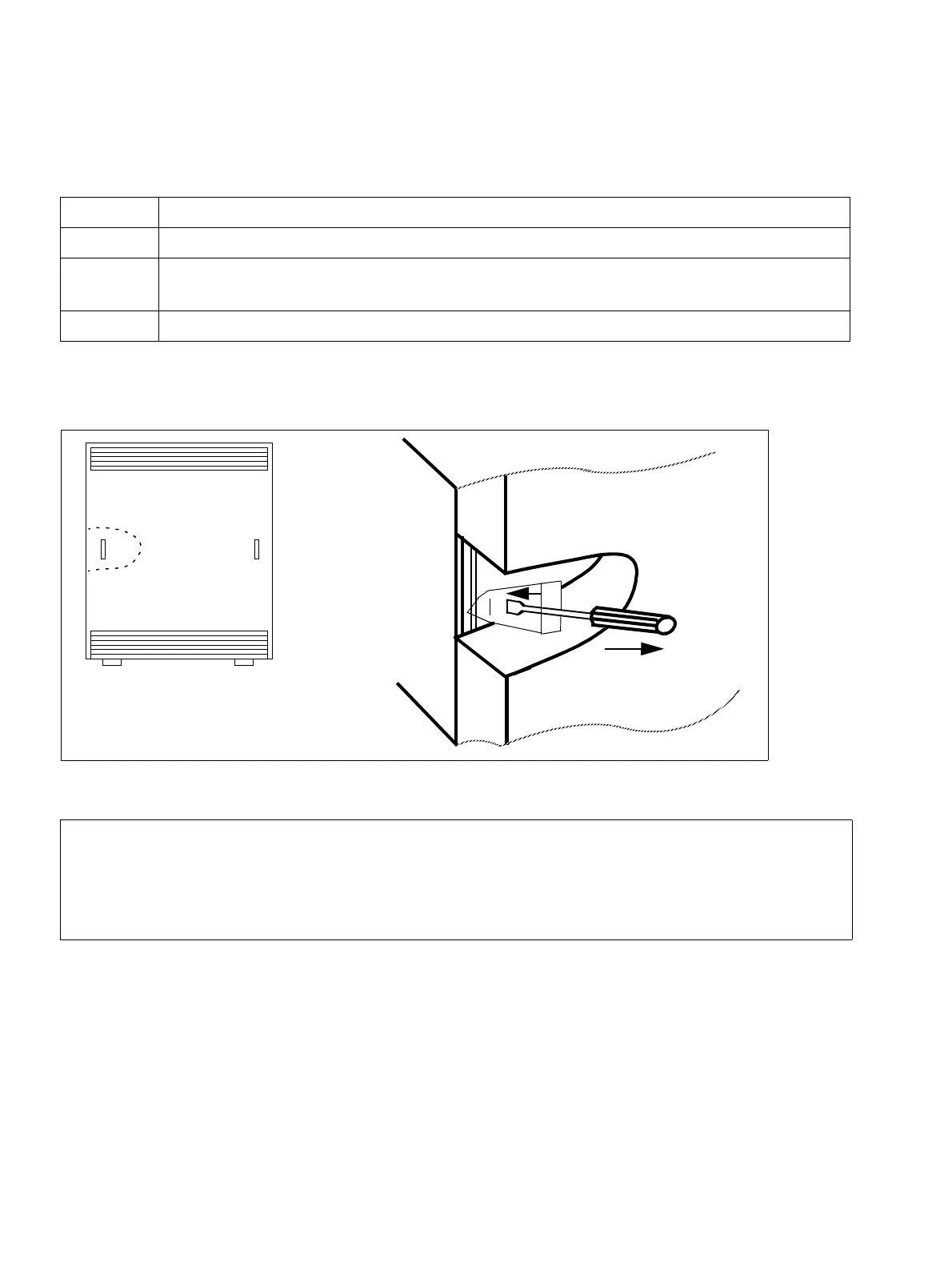

Figure 4-73 HiPath 3700 - Removing the Front and Rear Covers
7
Warning
The front and rear covers on all system cabinets must be closed before the system
is started up in a 19-inch cabinet.
To replace a cover, position the snap fasteners in the two guides and press down on
the cover until it snaps into place.
Cabinet
(1)
(2)
(3)
