Workpoint Clients
P31003-H3560-S403-54-7620, 09/05
10-72 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
wclient.fm
optiPoint Accessories
Example: External AC Adapter Connection

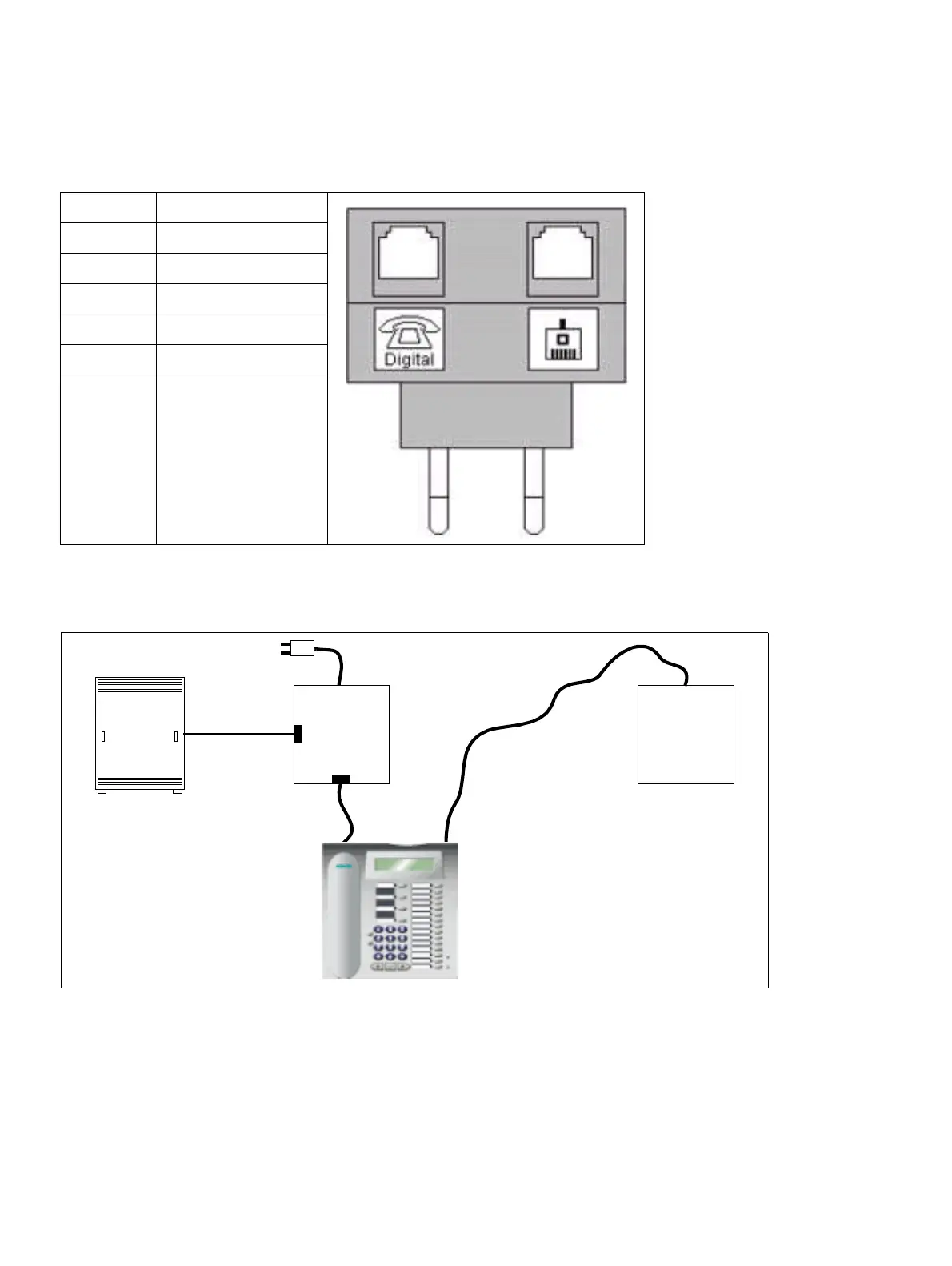

Table 10-9 Pin Assignments of the Local Power Supply AUL:06D1284 (Euro)
Pin Assignment
1 Not used
2–
3a-Wire (Tip)
4b-Wire (Ring)
5+
6 Not used
Figure 10-32 Example of an External AC Adapter Connection
AC Adapter
jack
“MW”
"digital"
jack
From optiPoint 500 adapter
(for example, here the
optiPoint analog adapter)
Analog
tele-
phone or
device
optiPoint 500
Telephone
HiPath 3750
To Next Page
