B3: Distributed systems - 840D sl only
2.2 NCU link
Extended Functions
112 Function Manual, 03/2013, 6FC5397-1BP40-3BA1
References
A detailed description of the system variables can be found in:
System Variables, List Manual
See also
Evaluating axis container system variables (Page 124)
2.2.4.5 Machining with axis container (schematic)
1R
0DLQWDLQLQJ
<HV
,)
+DVURWDWLRQRQWKH
PDFKLQHWHUPLQDWHG"
<HV
1R
<HV
1R
(QG
6WDUW
)LQDOFOHDQXS
,)
&RQWLQXHF\FOLF
PDFKLQLQJ"
&RQWDLQHUURWDWLRQHQDEOH
$;&76:(&7
&OHDQXSF\FOLF
0DFKLQHF\FOLF
6HWXSF\FOLF
,)
+DVD[LVFRQWDLQHU
URWDWLRQWHUPLQDWHG"
,QLWLDOVHWXS
$1B$;&76:$&7 

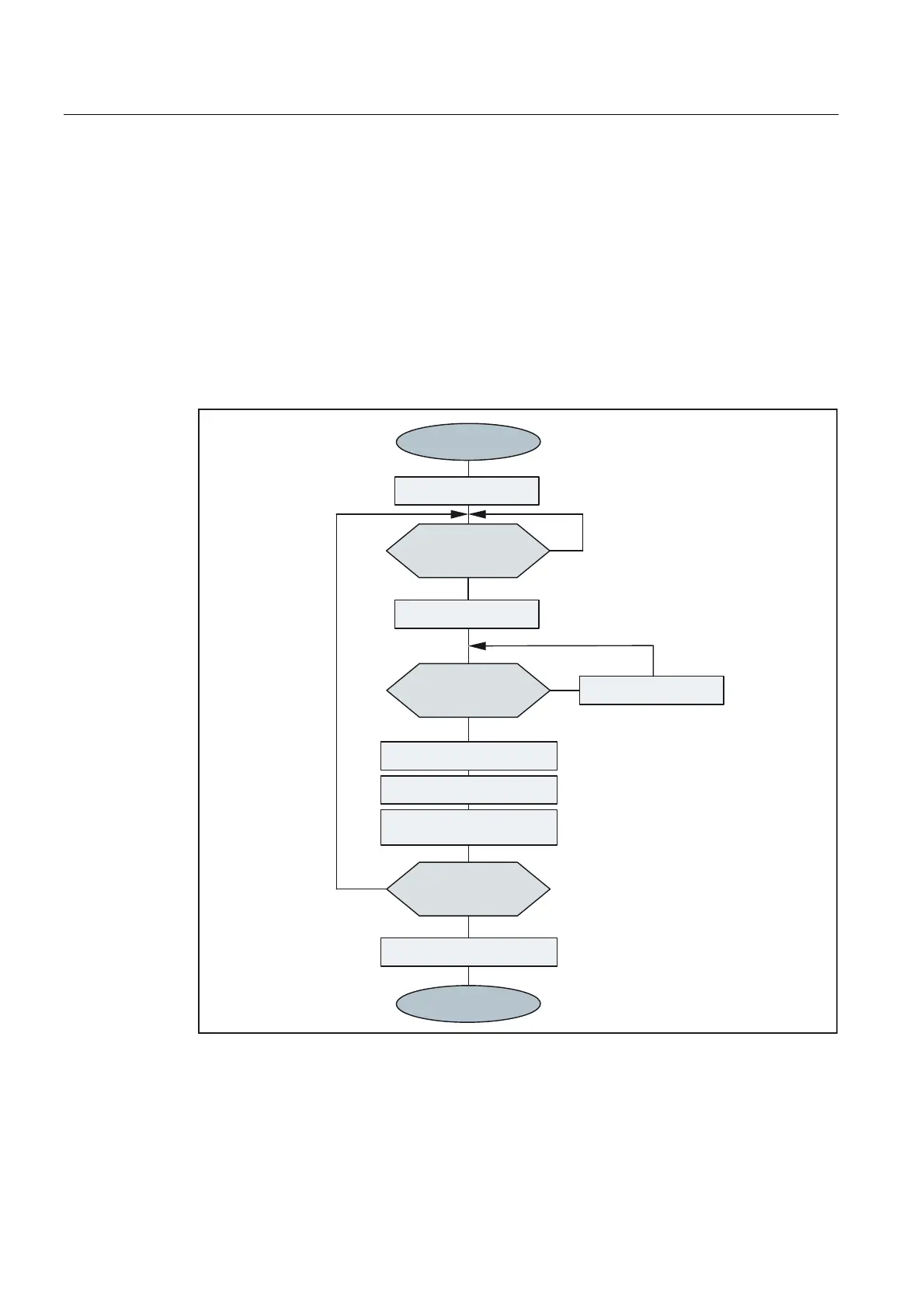

Figure 2-18 Example: Schematic machining sequence for a station of a rotary cycle machine
