N4: Own channel - only 840D sl
9.2 Stroke control
Extended Functions
560 Function Manual, 03/2013, 6FC5397-1BP40-3BA1
9.2.4 Axis start after punching
Input signal "Stroke ON"
The start of an axis motion after stroke initiation is controlled via input signal "Stroke ON".
,
$
W
W
t
t

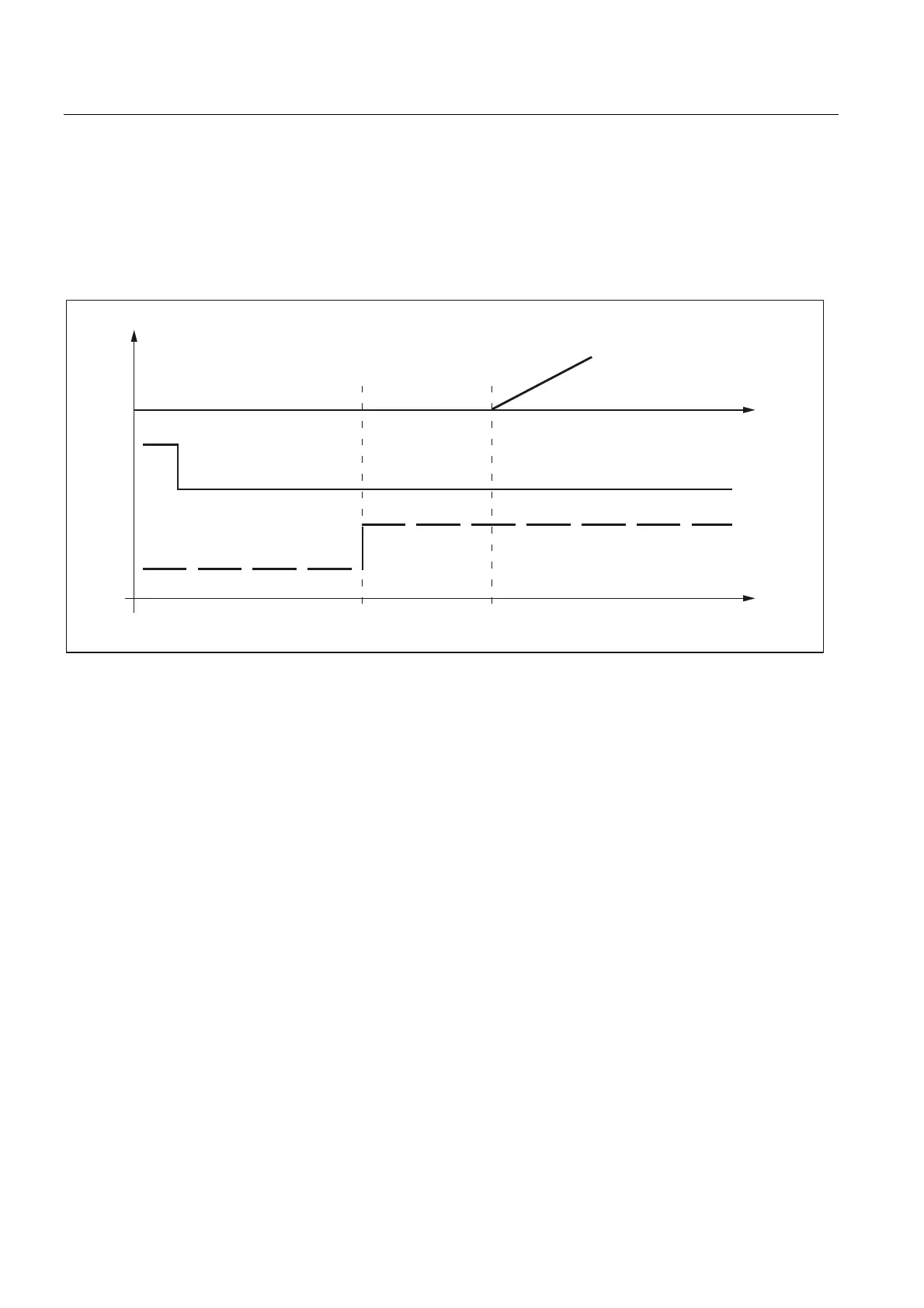

Figure 9-3 Signal chart: Axis start after punching
In this case, the time interval between t
4
and t'
4
acts as a switching-time-dependent reaction
time. It is determined by the interpolation sampling time and the programmed
punching/nibbling mode.
PON/SON
When the punching unit is controlled via PON/SON, the maximum delay time is calculated to be:
|t'
4
- t
4
| = 3 x interpolation cycles
PONS/SONS
If the punch is controlled by PONS/SONS, the delay time is determined by:
|t'
4
- t
4
| ≤ 3 x position controller cycles
Prerequisites: Stroke time (t
4
- t
2
) > 4 interpolation cycles
