Siemens SINUMERIK Series Function Manual

M1: Kinematic transformation
6.2 TRANSMIT face end transformation (option)
Extended Functions
350 Function Manual, 03/2013, 6FC5397-1BP40-3BA1
6.1.5 Activating transformation machine data via parts program/softkey
Most of the machine data relevant to kinematic transformations were activated by POWER
ON up to now.
Transformation machine data can also be activated via the parts program/softkey and it is
not necessary to boot the control.
6.2 TRANSMIT face end transformation (option)
Key statement

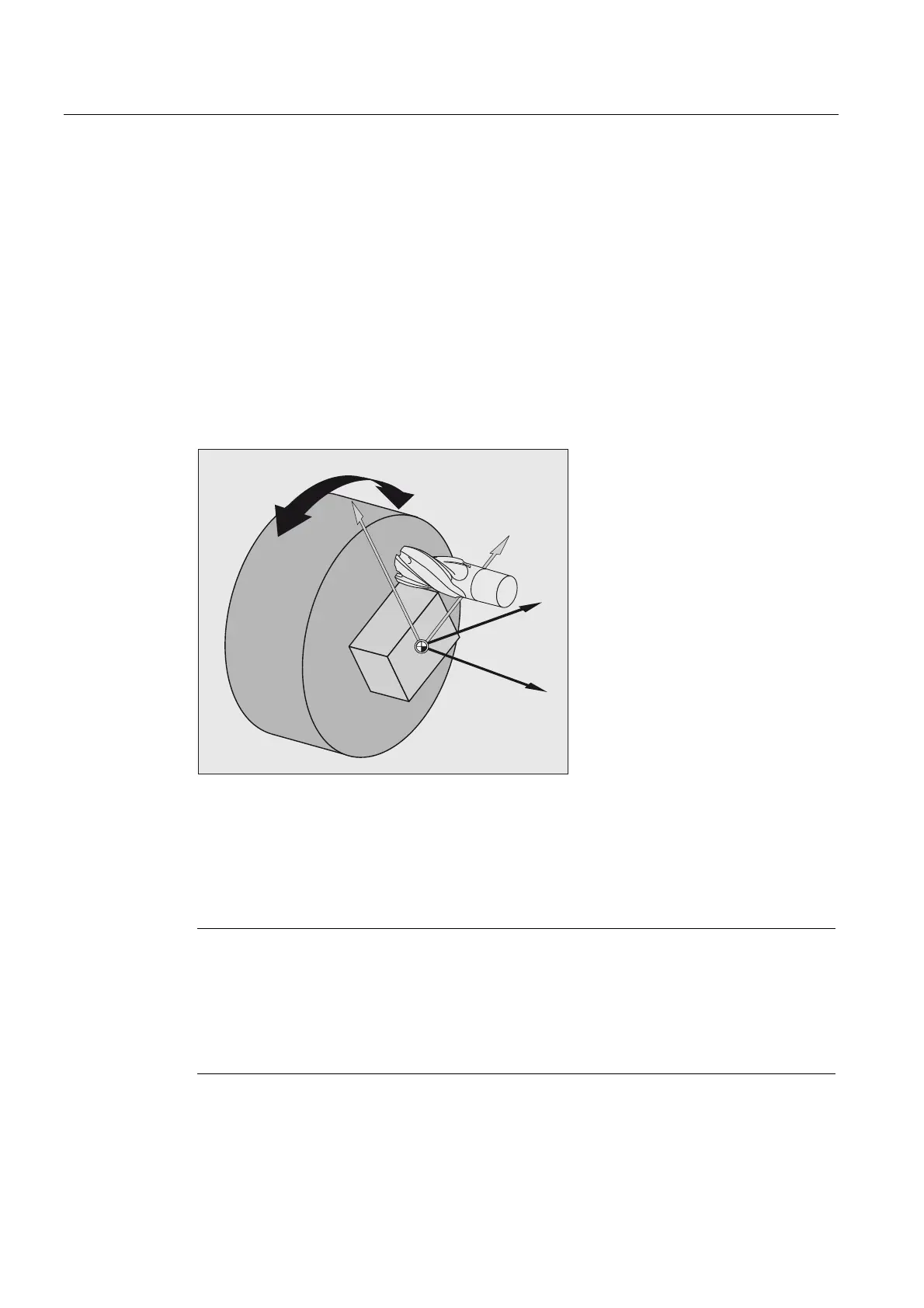

The TRANSMIT transformation permits the face end machining on turning machines.
;0
;
==0
<
&0
X Geometry axis
Y Geometry axis
Z Geometry axis
XM Machine axis
ZM Machine axis
CM Machine axis
Note
For active transformation, the names of the involved machine, channel and geometry axes
are different:
• MD10000 $MN_AXCONF_MACHAX_NAME_TAB (machine axis name)
• MD20080 $MC_AXCONF_CHANAX_NAME_TAB (channel axis name)
• MD20060 $MC_AXCONF_GEOAX_NAME_TAB (geometry axis name)
