M5: Measurement
7.5 Setting zeros, workpiece measuring and tool measuring
Extended Functions
Function Manual, 03/2013, 6FC5397-1BP40-3BA1
505
7.5.5 Types of workpiece measurement
7.5.5.1 Measurement of tool lengths (measurement type 10)
Tool length measurement on a reference part that has already been measured ($AC_MEAS_TYPE =
10)
The tool length can be measured on a previously measured reference part.
The plane selection depends on the position of the tool:
● G17 for tool position in the z direction
● G18 for tool position in the y direction
● G19 for tool position in the x direction
*
[
[
[
\
[
*
\
\
\
]
\
*
]
]
]
[
]

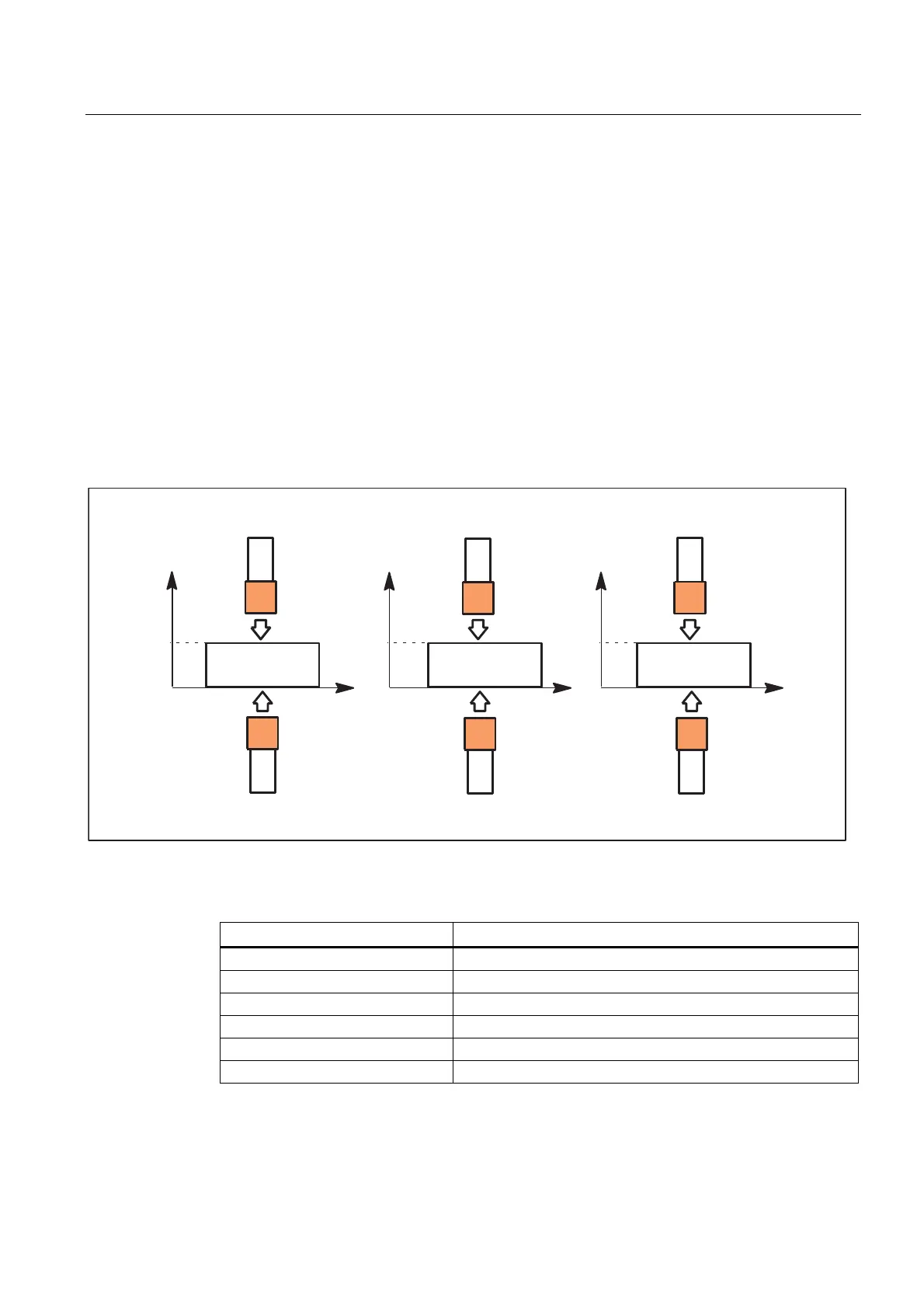

Figure 7-18 Tool length measurement for the selected plane G17, G18 and G19
The values of the following variables are evaluated for measurement type 10:
Input variable Meaning
$AC_MEAS_VALID Validity bits for input variables
$AA_MEAS_POINT1[axis] Measuring point 1
$AC_MEAS_P1_COORD Coordinate system of the measuring point *
$AA_MEAS_SETPOINT[axis] Set position z0
$AC_MEAS_SET_COORD Coordinate system of setpoint *
$AC_MEAS_DIR_APPROACH 0: +x, 1: -x, 2: +y, 3: -y, 4: +z, 5: -z
