Siemens SINUMERIK Series Function Manual

M5: Measurement
7.5 Setting zeros, workpiece measuring and tool measuring
Extended Functions
488 Function Manual, 03/2013, 6FC5397-1BP40-3BA1
Program code Comment
if $AC_MEAS_RESULTS[1] <> 4
setal(61000 + $AC_MEAS_RESULTS[1])
endif
$P_UIFR[2] = $AC_MEAS_FRAME ; Write measurement frame in data management
(G55)
G55 G0 AX[_xx]=10 AX[_yy]=10 ; Activate frame and traverse
m30
7.5.3.10 Redefine measurement around a WCS reference frame (measurement type 18)
Redefine WCS coordinate system ($AC_MEAS_TYPE = 18)
The zero point of the new WCS is determined by measuring point P1 at surface normal on
the oblique plane.
:&6
:&6
$&B0($6B5(68/76>@
˞
˞
$&B0($6B5(68/76>@
$&B0($6B5(68/76>@
]
\
[
3
3
3
<
[
]

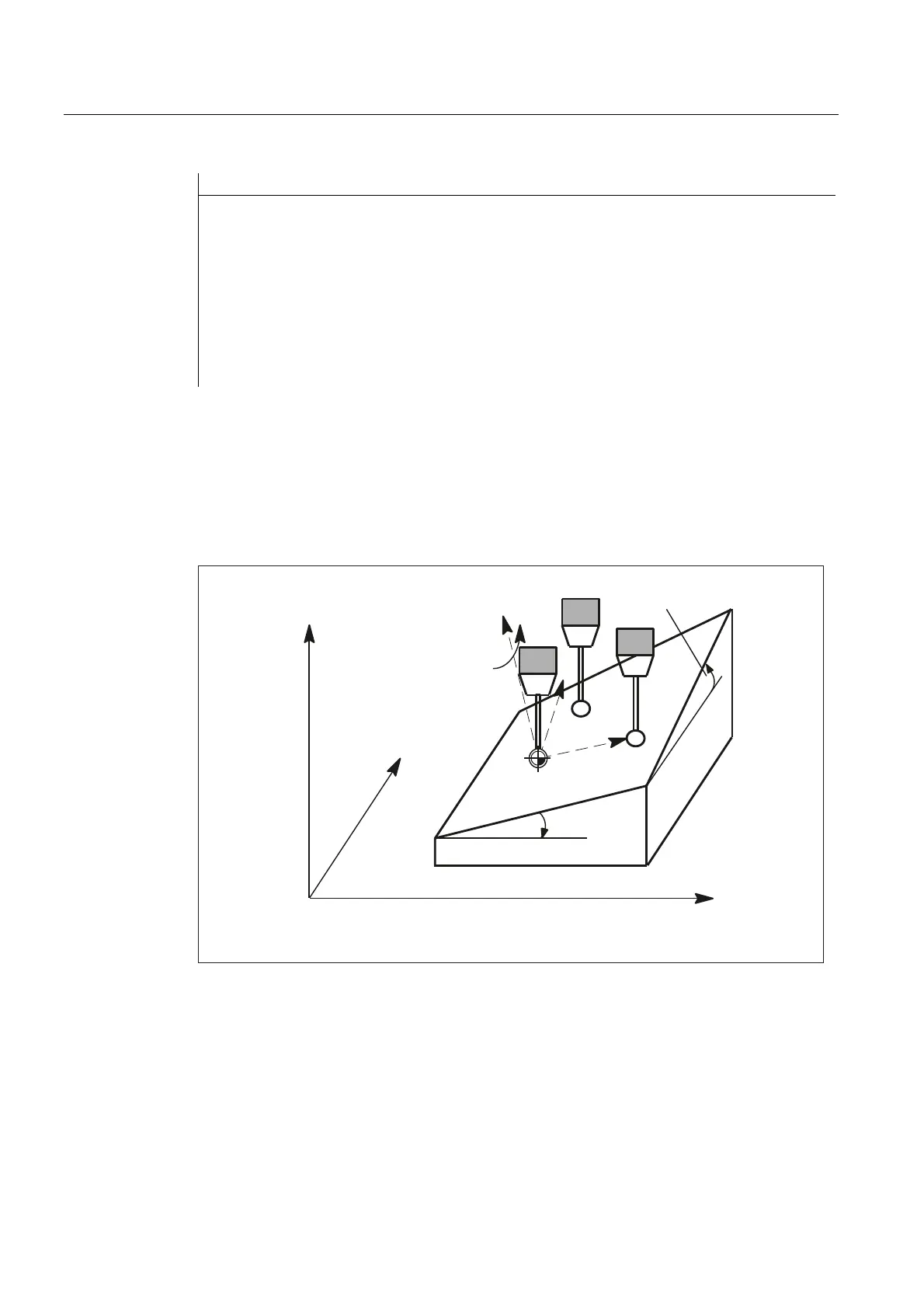

Figure 7-14 Oblique plane in G17
