M5: Measurement
7.5 Setting zeros, workpiece measuring and tool measuring
Extended Functions
Function Manual, 03/2013, 6FC5397-1BP40-3BA1
481
The following output variables are written for measurement type 13:
Output variable Meaning
$AC_MEAS_FRAME Result frame with translation
$AC_MEAS_RESULTS[0] Position of calculated web center (x0, y0 or z0)
$AC_MEAS_RESULTS[1] Web width in approach direction
7.5.3.7 Measurement of geo axes and special axes (measurement type 14, 15)
Preset actual value memory for geo axes and special axes ($AC MEAS TYPE = 14)
This measurement type is used on the HMI operator interface.
[V\V]V
]L
\L
[L
36HW
3$FW
]
[
<
$6HW$6HW$6HW
$$FW
$$FW
$
$FW
6SHFLDOD[HV

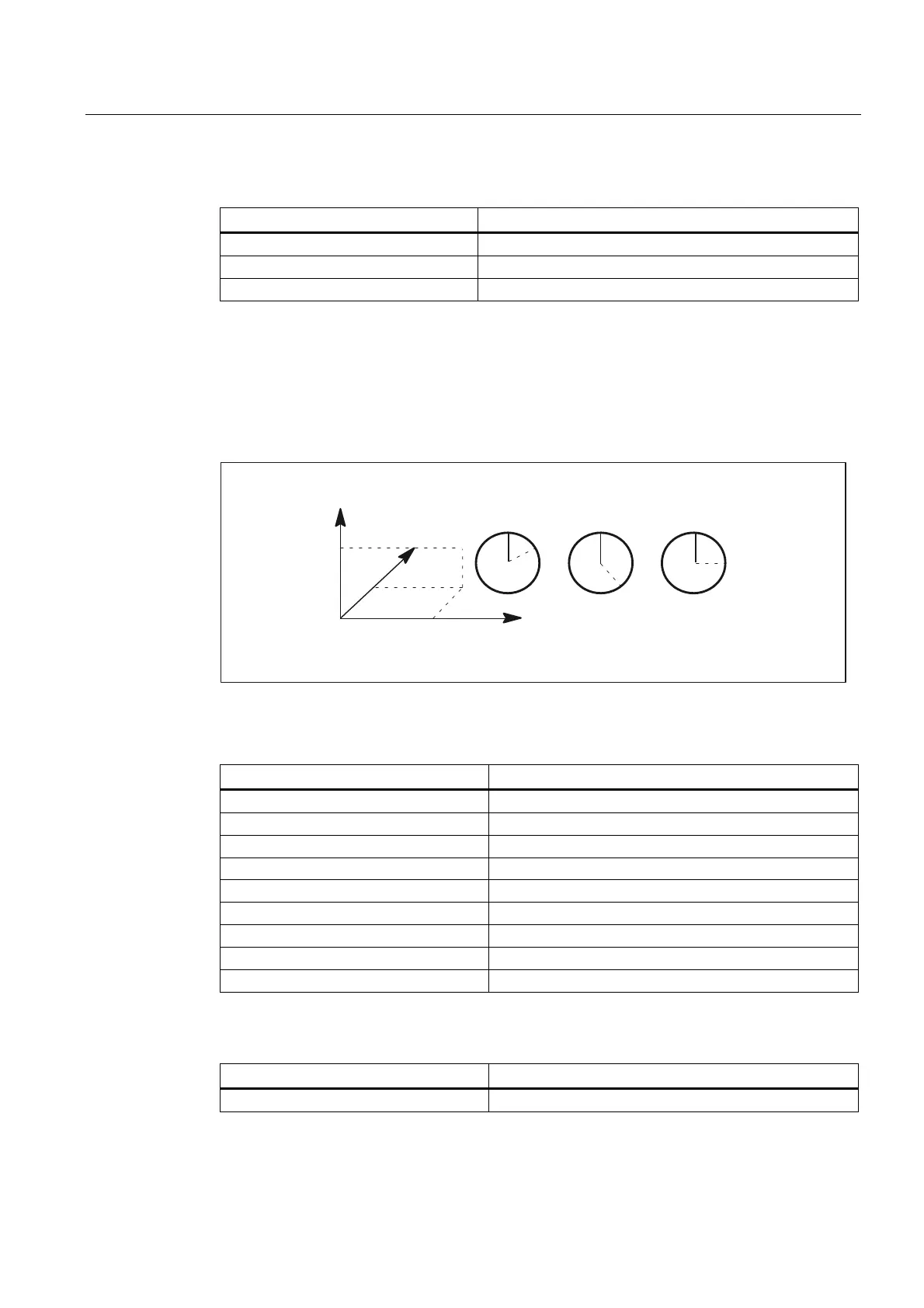

Figure 7-10 Preset actual value memory
The values of the following variables are evaluated for measurement type 14:
Input variable Meaning
$AC_MEAS_VALID Validity bits for input variables
$AA_MEAS_POINT1[axis] Actual values of the axes
$AA_MEAS_SETPOINT[axis] Setpoint position of the individual axes *
$AC_MEAS_ACT_PLANE Calculated as active plane unless otherwise specified *
$AC_MEAS_FINE_TRANS 0: Coarse offset, 1: Fine offset *
$AC_MEAS_FRAME_SELECT Calculated as additive frame unless otherwise specified *
$AC_MEAS_T_NUMBER Calculated as active T unless otherwise specified (T0) *
$AC_MEAS_D_NUMBER Calculated as active D unless otherwise specified (D0) *
$AC_MEAS_TYPE 14
* optional
The following output variables are written for measurement type 14:
Output variable Meaning
$AC_MEAS_FRAME Result frame with translations
