Siemens SINUMERIK Series Function Manual

H1: Manual and handwheel travel
3.4 Handwheel travel in JOG
Extended Functions
168 Function Manual, 03/2013, 6FC5397-1BP40-3BA1
+DQGZKHHO
VWRSSHG
0RWLRQFRPPDQGVLJQDO
7UDYHOUHTXHVWVLJQDO
$[LVUHDFKHVHQG
SRLQW
2YHUULGHVWRSFRQGLWLRQ$[LVVKRXOGWUDYHUVH
ZLWKSHQGLQJVWRS
FRQGLWLRQ

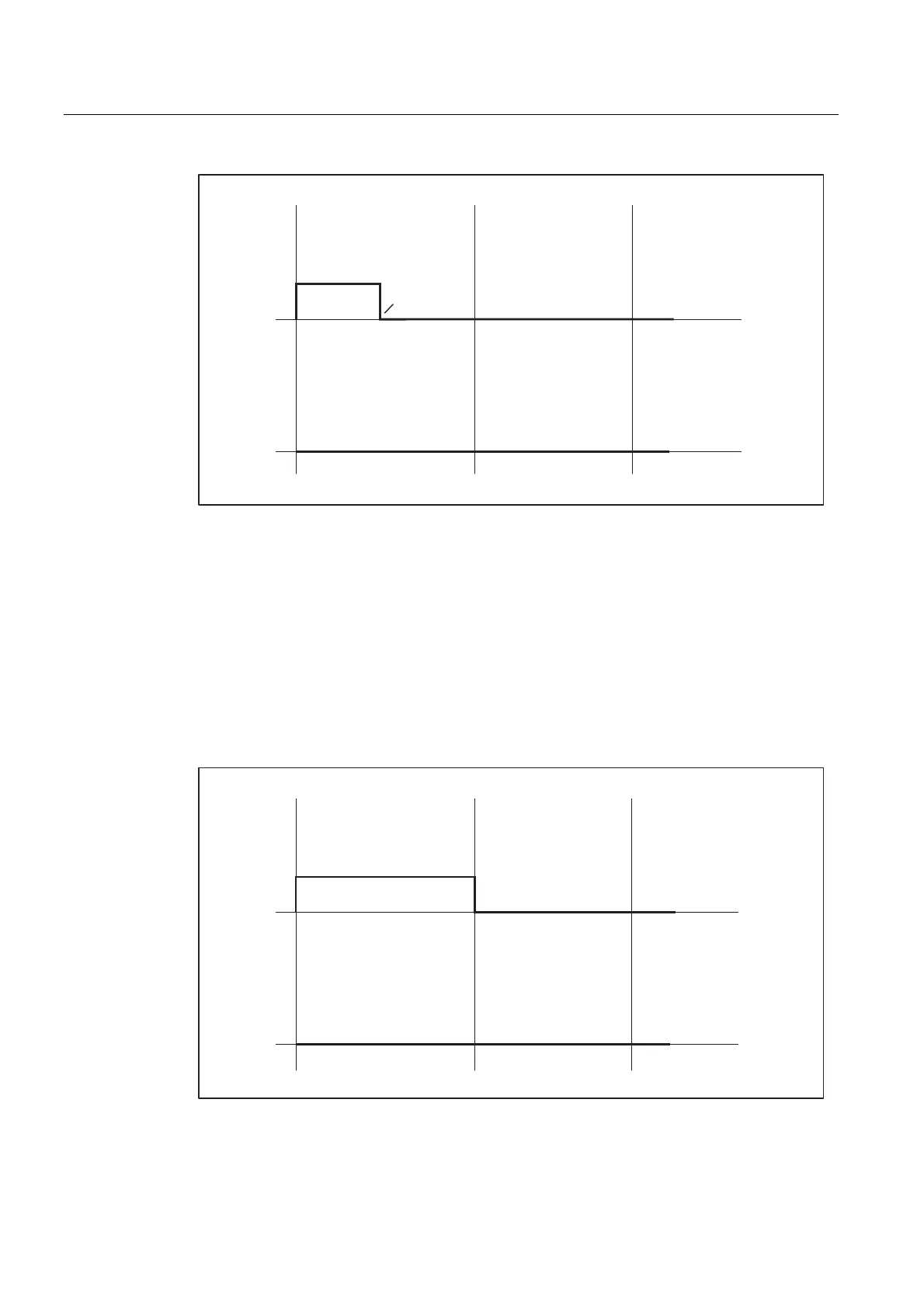

Figure 3-3 Signal-time diagram:
Handwheel travel, stop condition is an abort criterion
If a stop condition is activated during the handwheel travel, the motion is aborted and the
"Travel request" and "Travel command" NC/PLC interface signals are reset.
Example 3: Handwheel travel with velocity specification, stop condition is an abort criterion
If the handwheel is no longer moved for velocity specification
(MD11346 $MN_HANDWH_TRUE_DISTANCE == 0 or == 2), the "Travel request" NC/PLC
interface signal is reset.
The "Travel request" PLC signal is also reset when the handwheel is deselected.
0RWLRQFRPPDQGVLJQDO
7UDYHOUHTXHVWVLJQDO
$[LVUHDFKHV
HQGSRLQW
2YHUULGHVWRS
FRQGLWLRQ
$[LVVKRXOG
WUDYHUVHZLWK
SHQGLQJVWRS
FRQGLWLRQ
Figure 3-4 Signal-time diagram:
Handwheel travel with velocity specification, stop condition is an abort criterion
