4.7 Measures for hanging (suspended axes)
Extended Functions
298 Function Manual, 03/2013, 6FC5397-1BP40-3BA1
"Electronic counterweight" function
A hanging (suspended) axis can almost be completely prevented from dropping (sagging)
using the "electronic counterweight" function.
The electronic counterweight prevents axes with a weight load from sagging when the
closed-loop control is switched on. After releasing the brake, the constant counterweight
torque maintains the position of the vertical axis.
'LVWDQFH
=
7RUTXH
W
=
W
$[LV=VWD\VLQSRVLWLRQ
%UDNHUHOHDVHVFRQWUROOHUHQDEOHSXOVHHQDEOH
FRXQWHUZHLJKWWRUTXH
%UDNHKROGV=



:HLJKW
)HHGGULYH
%UDNH
=
=
G] a
G] a

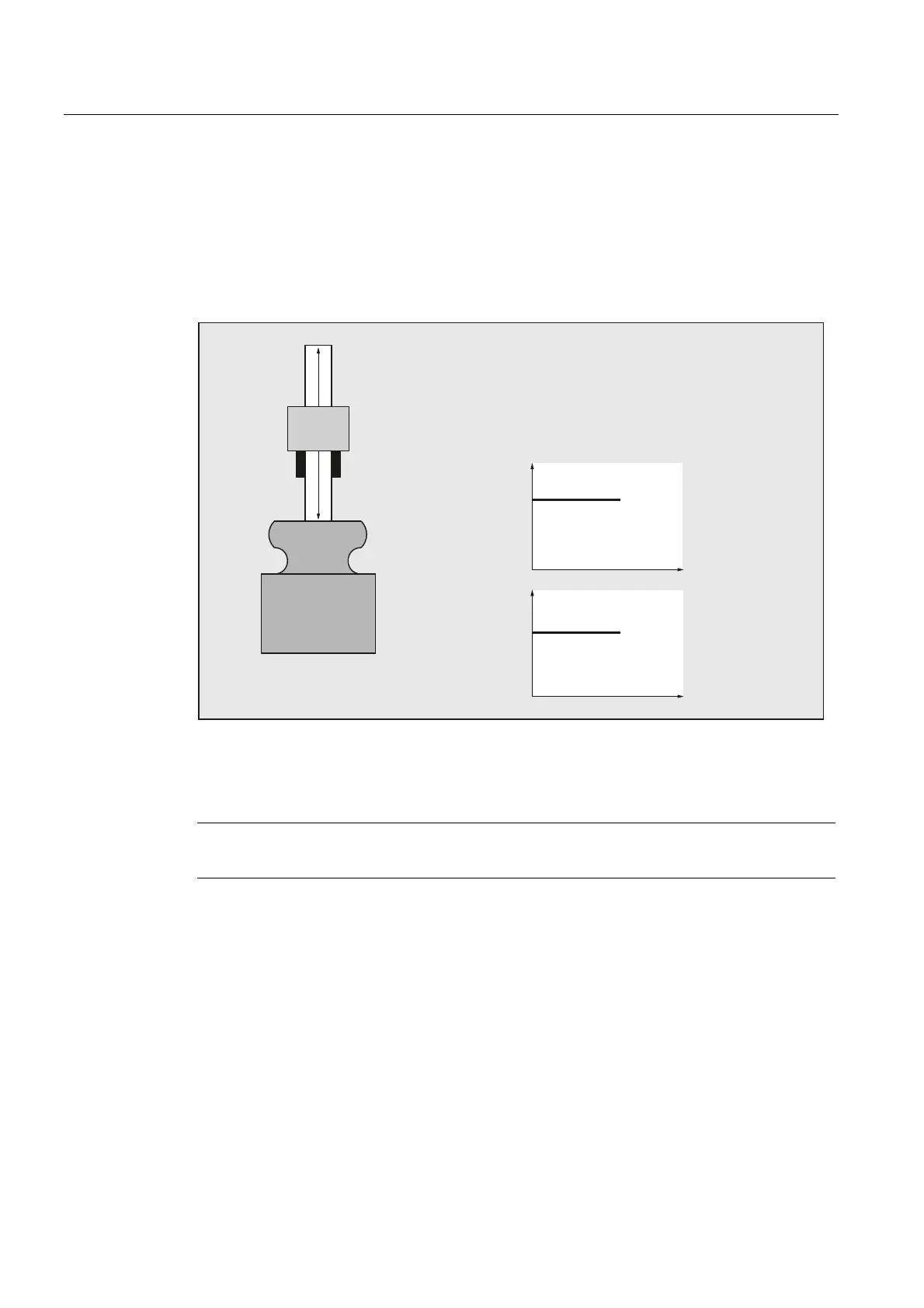

Figure 4-20 Lowering of a vertical axis with electronic weight compensation
Commissioning
Note
The "electronic counterweight" is commissioned through the drive!
Reference
For additional information, see the following:
SINAMICS S120 Function Manual Drive Functions
