M5: Measurement
7.5 Setting zeros, workpiece measuring and tool measuring
Extended Functions
512 Function Manual, 03/2013, 6FC5397-1BP40-3BA1

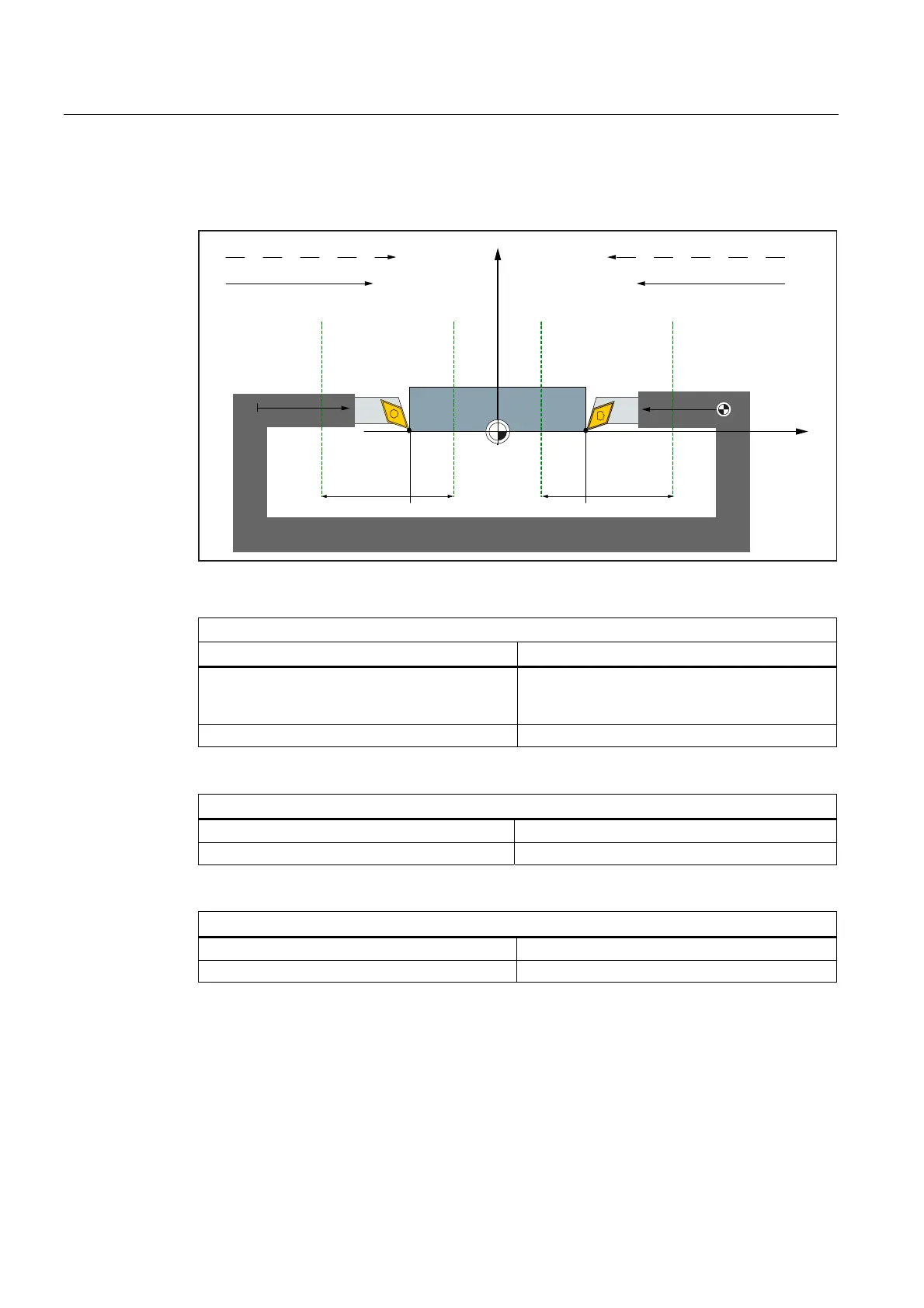

Two turning tools each with their own reference point with a tool counter-orientation in the approach
direction
7RRORULHQWDWLRQ
7RRORULHQWDWLRQ
$SSURDFKGLUHFWLRQ$SSURDFKGLUHFWLRQ
6HWSRLQW
6HWSRLQW
6HWSRLQW
6HWSRLQW
%&6
7&3
7&3
[
[
[
[

:=/
:=/
[
Settings in the system data:
Left-hand tool: Approach direction and tool orientation +x
System variable Meaning
$AC_MEAS_TOOL_MASK = 0x2 + 0x200 Tool position in x direction (G19) +
Tool length differential values are included
negatively
$AC_MEAS_DIR_APPROACH = 0 Approach direction +x
Right-hand tool: Approach direction and tool orientation -x
$AC_MEAS_TOOL_MASK = 0x40 Tool position in the -x direction
$AC_MEAS_DIR_APPROACH = 1 Approach direction -x
For both tools
$AC_MEAS_Px_COORD = 1 Coordinate system of x-th measuring point = BCS
$AC_MEAS_SET_COORD = 1 Coordinate system of the setpoint = BCS
