M5: Measurement
7.5 Setting zeros, workpiece measuring and tool measuring
Extended Functions
Function Manual, 03/2013, 6FC5397-1BP40-3BA1
515
Two milling tools each with a reference point, tool orientation perpendicular to the approach direction

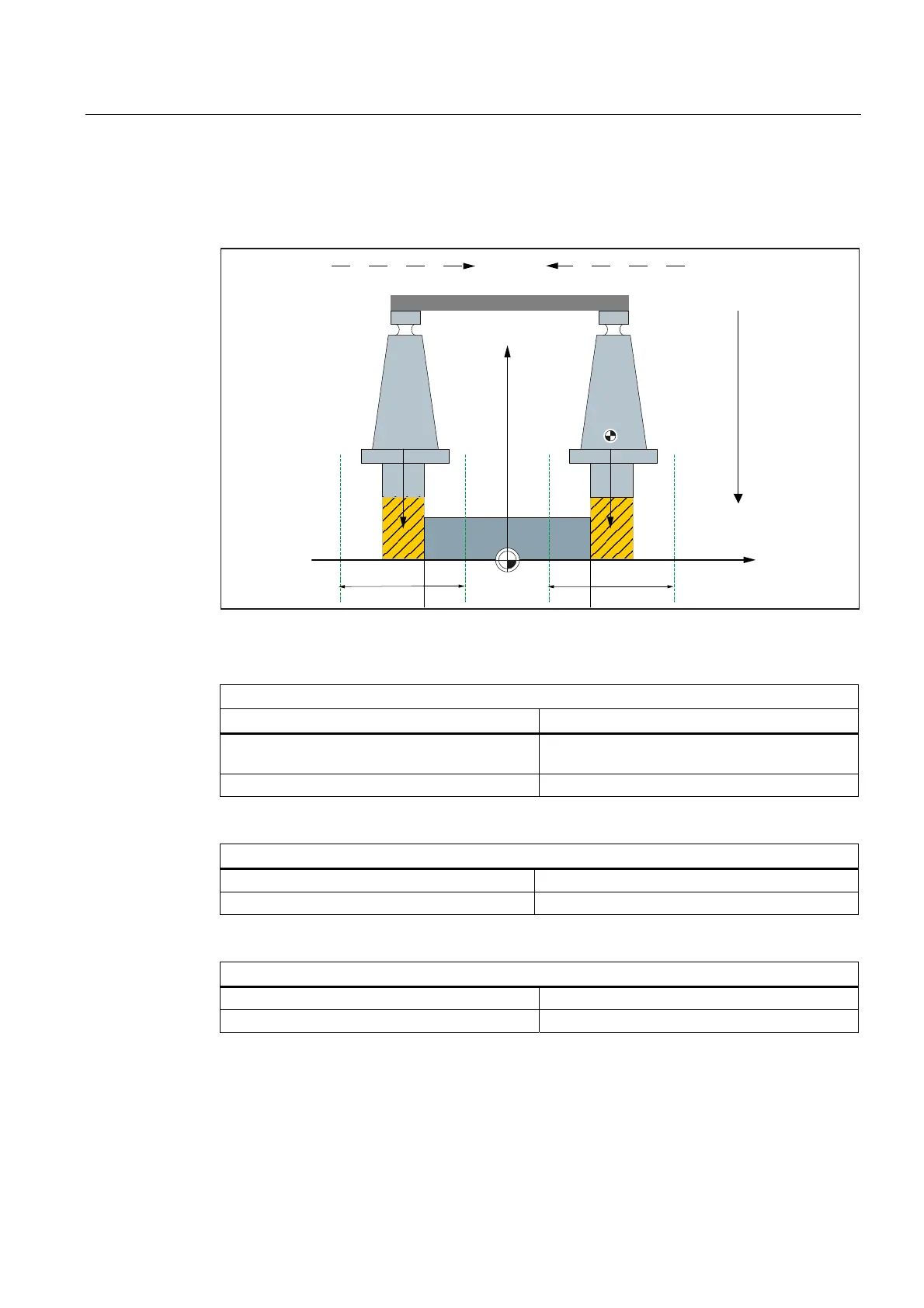

Two milling tools with one reference point with a tool orientation in -y
$SSURDFKGLUHFWLRQ $SSURDFKGLUHFWLRQ
6HWSRLQW
6HWSRLQW
6HWSRLQW
6HWSRLQW
7RRORULHQWDWLRQ
%&6
[
\
ದ[[
ದ
7&3
7&3
:
In the present layout, the tool position $AC_MEAS_TOOL_MASK and approach direction to
the workpiece $AC_MEAS_DIR_APPROACH must be set as follows:
Left-hand tool: Approach direction +x and tool orientation -y
System variable Meaning
$AC_MEAS_TOOL_MASK = 0x80 + 0x200 Tool position in -y direction + tool length
differential values are included negatively
$AC_MEAS_DIR_APPROACH = 0 Approach direction +x
Right-hand tool: Approach direction -x and tool orientation -y
$AC_MEAS_TOOL_MASK = 0x80 Tool position in -y direction
$AC_MEAS_DIR_APPROACH = 1 Approach direction -x
For both tools
$AC_MEAS_Px_COORD = 1 Coordinate system of x-th measuring point = BCS
$AC_MEAS_SET_COORD = 1 Coordinate system of the setpoint = BCS
