7.5 Setting zeros, workpiece measuring and tool measuring
Extended Functions
518 Function Manual, 03/2013, 6FC5397-1BP40-3BA1

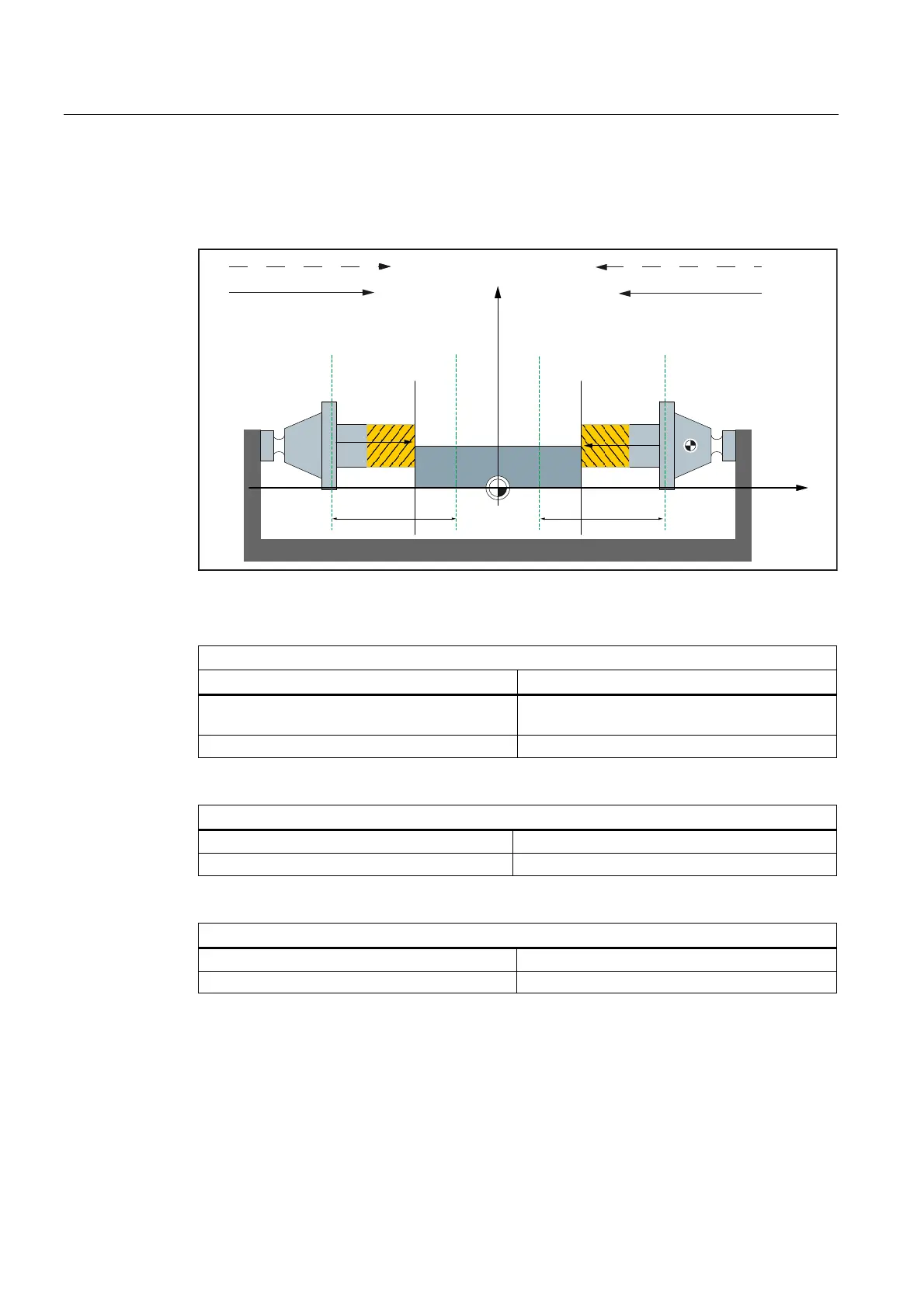

Two milling tools each with a reference point with tool counter-orientation in the approach direction
Two milling tools with one reference point with a tool position opposite to the orientation

6HWSRLQW
6HWSRLQW
6HWSRLQW 6HWSRLQW
7RRORULHQWDWLRQ
$SSURDFKGLUHFWLRQ$SSURDFKGLUHFWLRQ
7RRORULHQWDWLRQ
%&6
[


ದ


7&3
7&3

[
[
[
[
In the present layout, the tool position $AC_MEAS_TOOL_MASK and approach direction to
the workpiece $AC_MEAS_DIR_APPROACH must be set as follows:
Left-hand tool: Approach direction and tool orientation +x
System variable Meaning
$AC_MEAS_TOOL_MASK = 0x2 + 0x200 Tool position in x direction (G19) + tool length
differential values are included negatively
$AC_MEAS_DIR_APPROACH = 0 Approach direction +x
Right-hand tool: Approach direction and tool orientation -x
$AC_MEAS_TOOL_MASK = 0x40 Tool position in the -x direction
$AC_MEAS_DIR_APPROACH = 1 Approach direction -x
For both tools
$AC_MEAS_Px_COORD = 1 Coordinate system of x-th measuring point = BCS
$AC_MEAS_SET_COORD = 1 Coordinate system of the setpoint = BCS
