N4: Own channel - only 840D sl
9.4 Automatic path segmentation
Extended Functions
576 Function Manual, 03/2013, 6FC5397-1BP40-3BA1
If the programmed path segmentation is not an integral multiple of the total path, then the
feed path is reduced.
633
633ಬ
<
;
;
<

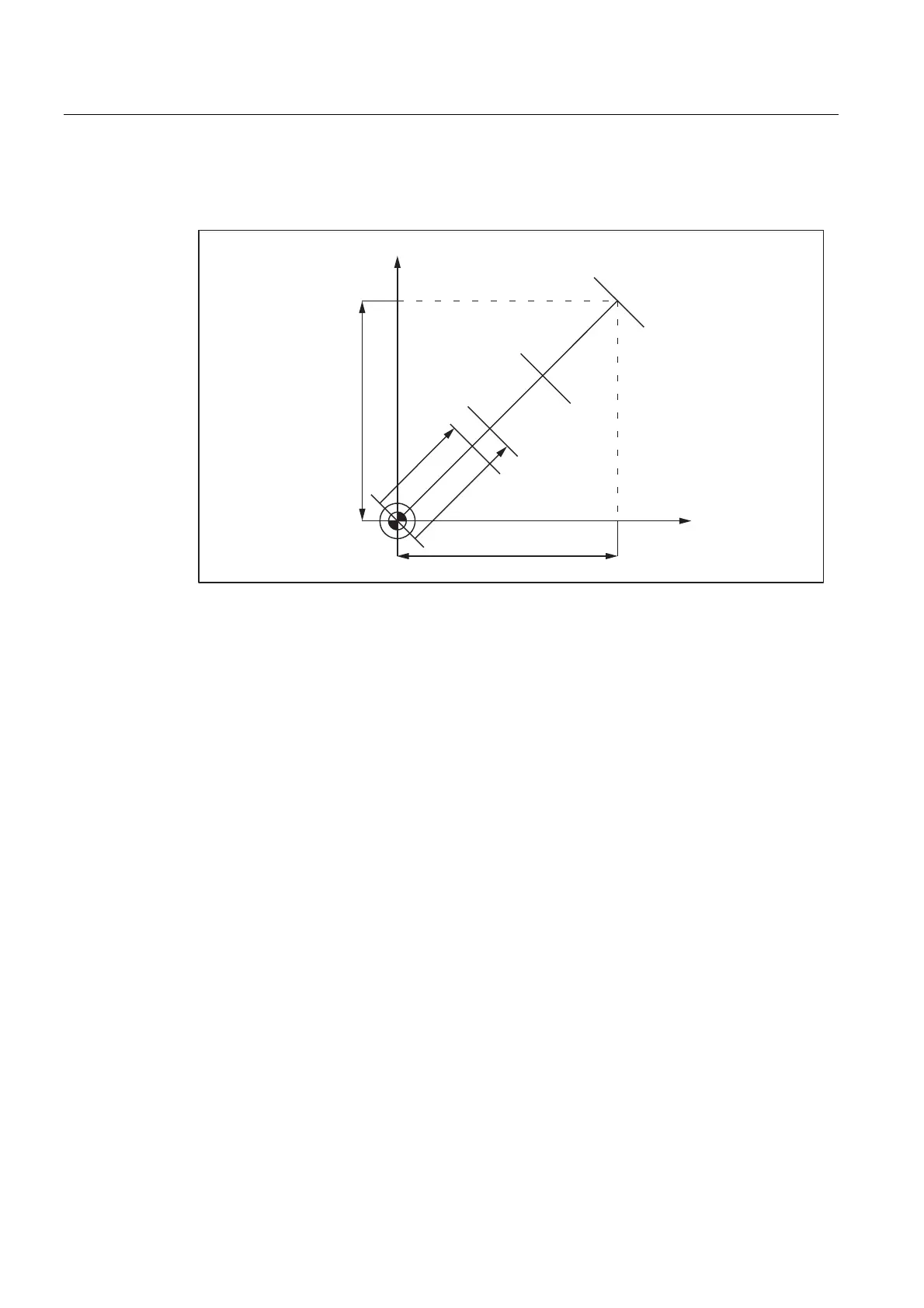

X2/Y2: Programmed traversing distance
SPP: Programmed SPP value
SPP': Automatically rounded-off offset distance
Figure 9-4 Path segmentation
Example of SPN
The number of path segments per block is programmed via SPN.
A value programmed via
SPN takes effect on a non-modal basis for both punching and
nibbling applications. The only difference between the two modes is with respect to the first
stroke. This is normally executed at the beginning of the first segment with nibbling
operations and at its end with punching operations. This means that when n segments are
programmed, n strokes are executed with punching operations but n+1 with nibbling.
Furthermore, where no travel information is available, only a single stroke is executed, even
if several are programmed. Should it be necessary to generate several strokes at one
position, then the corresponding number of blocks without traversing information must be
programmed.
